8041Si25.55

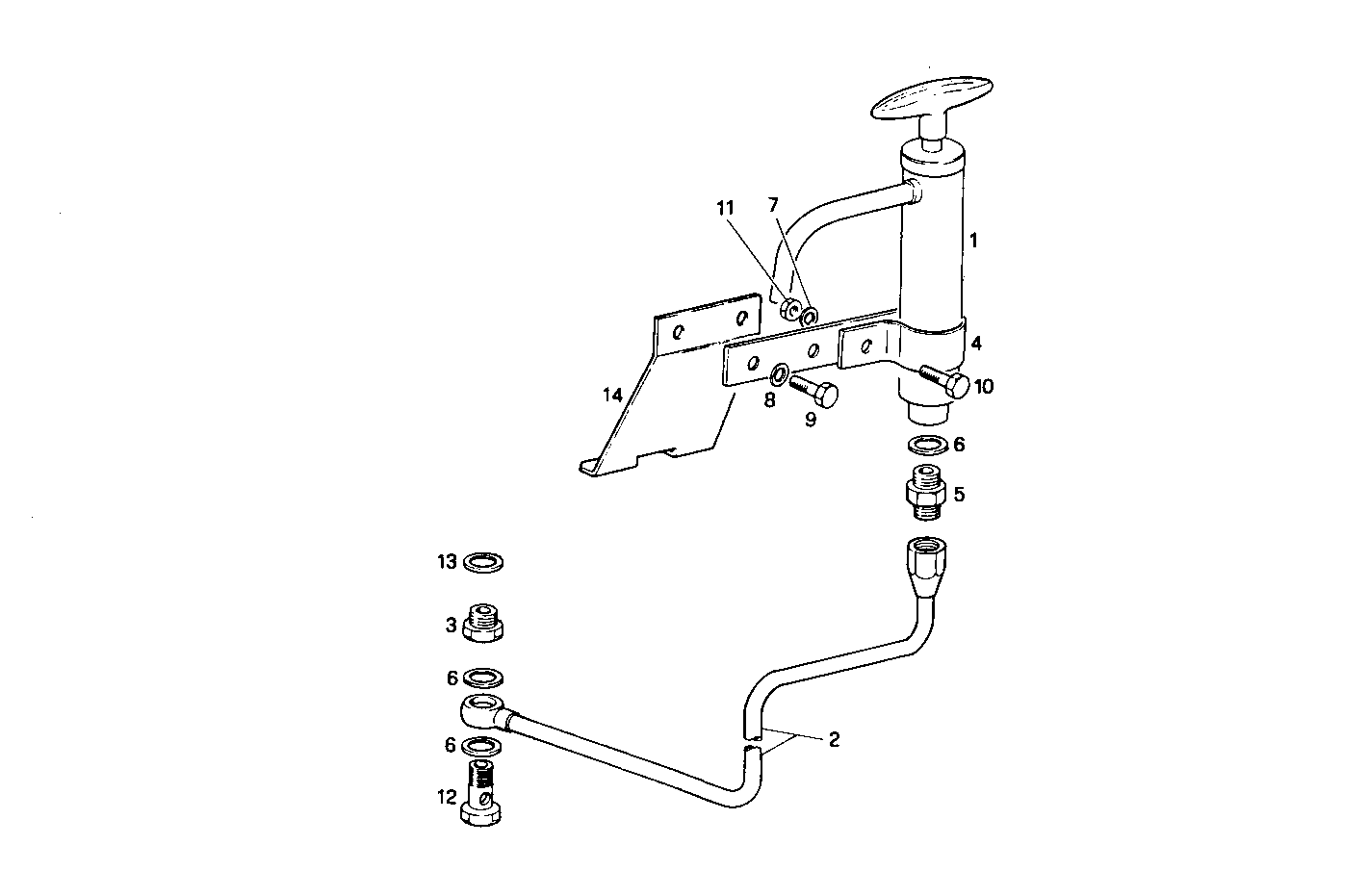

A49010027 OIL DRAIN PUMP - right side
| Item | Part number | Description |
|---|---|---|
| 1 | 8019921 | HAND PUMP |
| 2 | 8012322 | OIL LINE |
| 3 | 4919578 | PIPE SOCKET M22X1,5/M16X1,5 |
| 4 | 4928851 | CLIP |
| 5 | 16500311 | PIPE SOCKET M16X1,5/M18X1,5 |
| 6 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 7 | 17037931 | HEXAGON NUT M8X1,25 |
| 8 | 17091074 | WASHER Ø12X24X2,8 MM |
| 9 | 16609824 | HEXAGON BOLT M12X1,75X25 MM |
| 10 | 16605524 | HEXAGON BOLT M8X20 MM |
| 11 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 12 | 4864084 | BANJO BOLT M16X1,5 |
| 13 | 10263460 | WASHER Ø22X28X1,5 MM |
| 14 | 8103442 | SUPPORT |
