8041SRM15.10

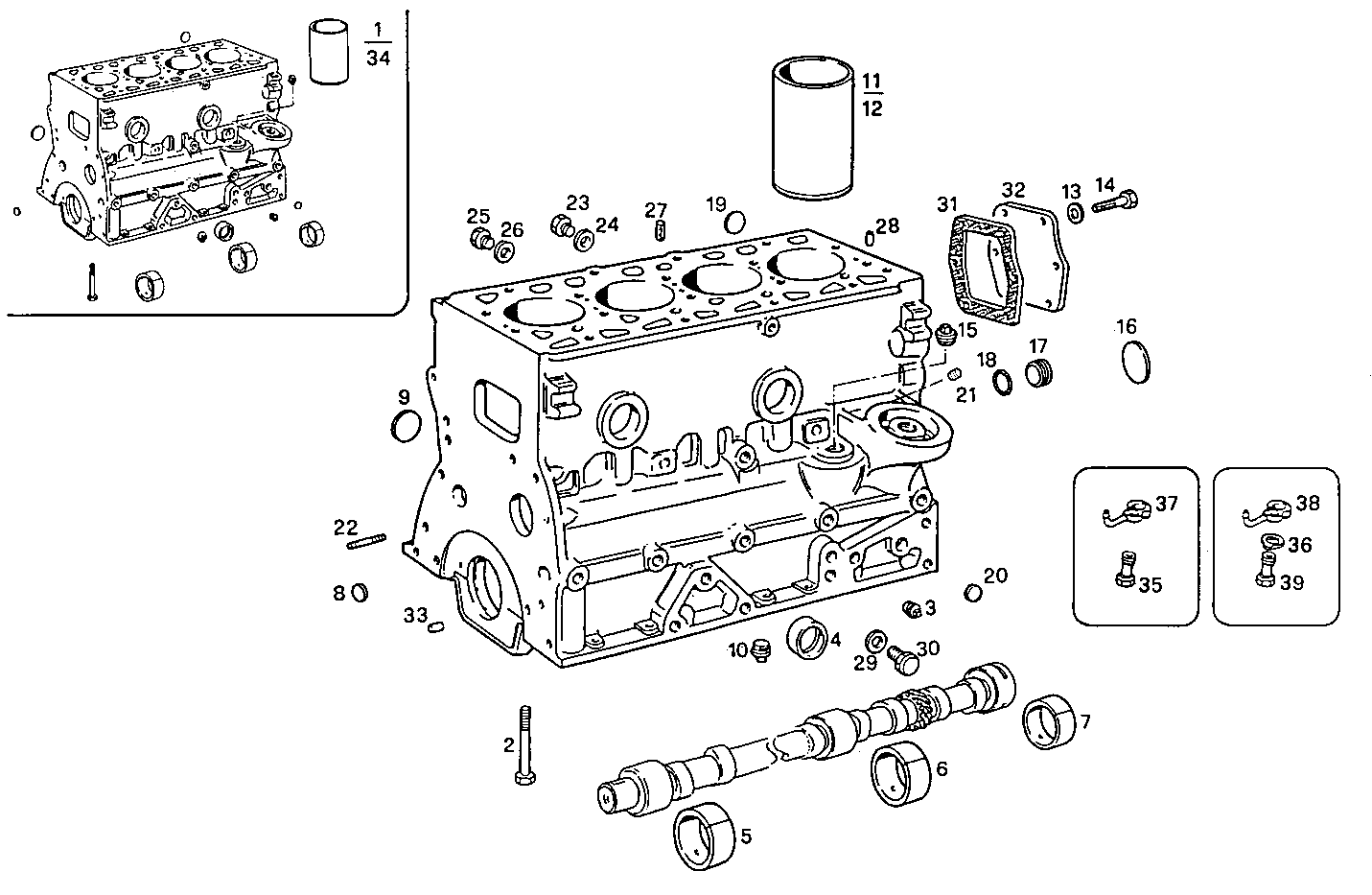

0400.011 CRANKCASE

Iveco/FPT CRANKCASE

Item Part number Description
1 8092305 CRANKCASE ASSY [up to 565948]
2 4792169 SCREW
3 14326001 THREADED PLUG M10X1,25
4 14329901 LOCK PLUG Ø40 MM
5 4603449 CAMSHAFT BEARING MOGUL
6 4603450 CAMSHAFT BEARING CLEVITE
7 4603451 CAMSHAFT BEARING MOGUL
8 14328501 LOCK PLUG Ø16 MM
9 16991170 LOCK PLUG Ø36 MM
10 4824539 THREADED PLUG M16X1,5
11 4803030 CYLINDER LINER
12 4803031 CYLINDERLINER +0.2
13 17089471 SPRING WASHER Ø16X8 MM SP=1,4 MM
14 16043324 HEXAGON BOLT M8X18 MM
15 14323811 LOCK PLUG Ø20 MM SP=1,5 MM
16 10160701 LOCK PLUG Ø60 MM [up to ...]
17 98412737 LOCK PLUG [from ...]
18 17284481 O-RING Ø58,4 MM SP=2,6 MM [from ...]
19 14327401 PLUG Ø13 MM
20 14328201 LOCK PLUG M10
21 4782452 DOWEL PIN
22 16730124 STUD M8X60 MM
23 4665029 LOCK PLUG M42X1,5
24 10265460 SEAL GASKET Ø42X49 MM SP=1,5 MM
25 16992211 THREADED PLUG M12X1,5
26 10298460 SEAL GASKET Ø12X18 MM SP=1,5 MM
27 17254970 DOWEL PIN Ø5 MM
28 4846850 DOWEL PIN
29 10257460 SEAL GASKET Ø20X26 MM SP=1,5 MM [up to ...]
30 10305071 LOCK PLUG M20X1,5 [up to ...]
31 99445564 FLAT ENGINE GASKET SP=1,5 MM
32 4653282 REAR C.CASE COVER
33 17275410 DOWEL PIN Ø8 MM
34 98444092 CRANKCASE ASSY [from 565949]
35 98475228 SCREW CONNECTOR [from 674995]
36 4763440 LOCKING PLATE
37 98475475 OIL NOZZLE [from 674995]
38 4764577 OIL NOZZLE [up to 674994]
39 4763439 SCREW CONNECTOR [up to 674994]
