8041SRM15.10

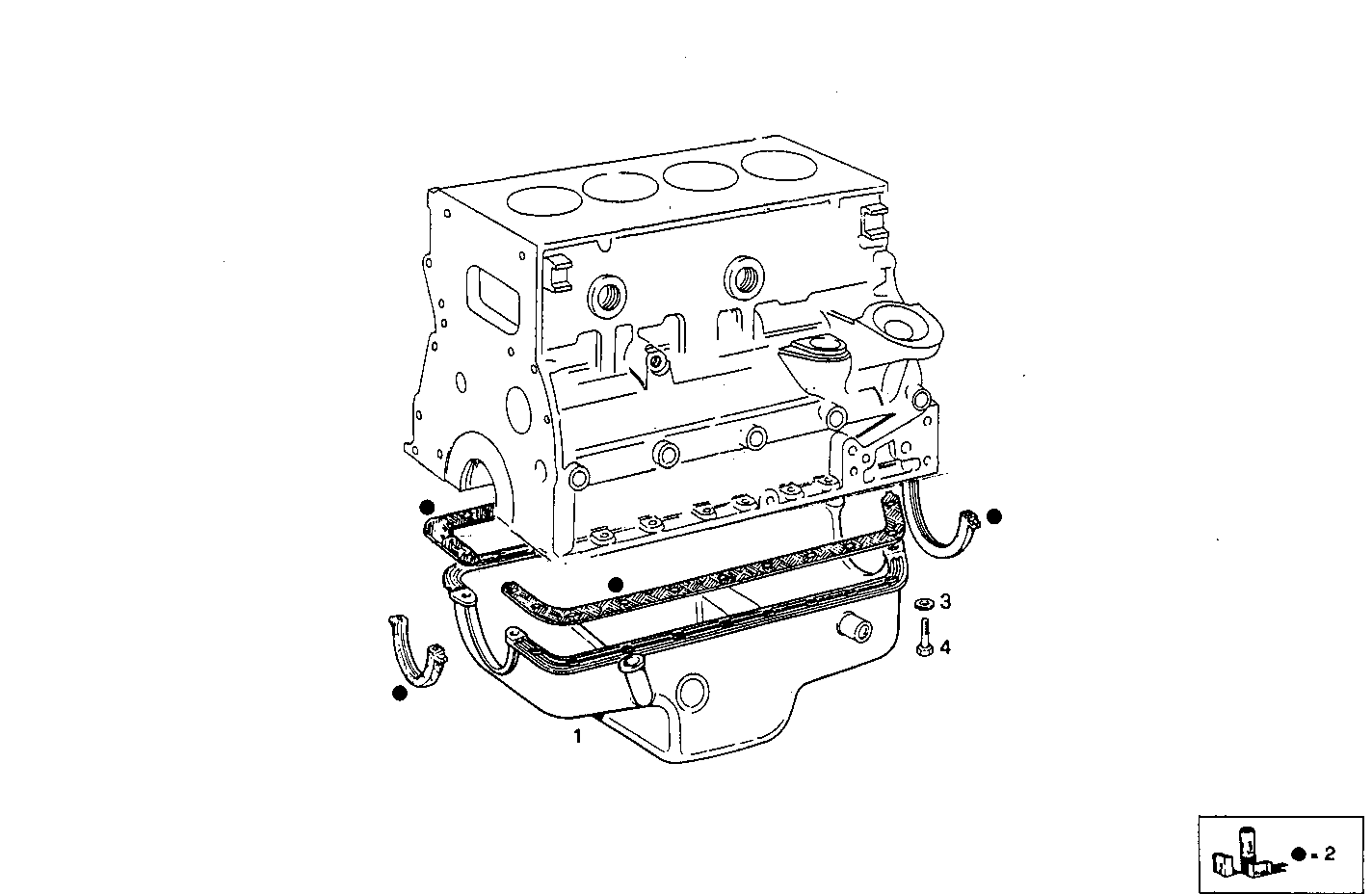

0420.013 OIL SUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8111036 | OIL SUMP ASSY |
| 2 | 1907812 | KIT-OILSUMP GASKET |
| 3 | 17095004 | WASHER Ø10X18X2 MM |
| 4 | 10923224 | SCREW |
