8041SRM15.10

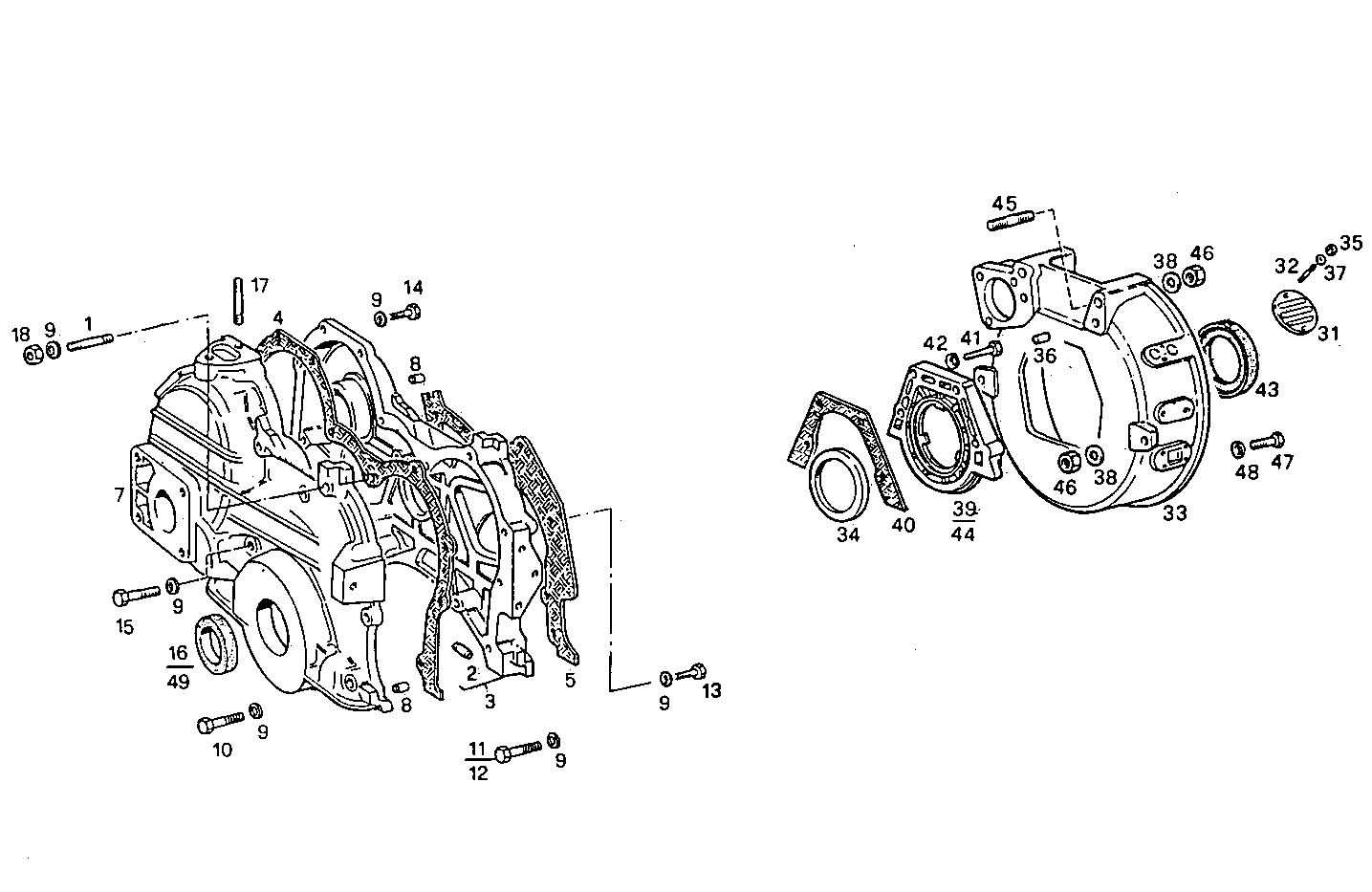

0430.008 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
1 13543621 STUD M8X16X30 MM
2 4605220 OIL NOZZLE
3 4766126 FRONT C.CASE COVER ASSY
4 98424045 FLAT ENGINE GASKET
5 98424046 FLAT ENGINE GASKET
7 4800486 FRONT C.CASE COVER ASSY [from ...]
8 10839610 DOWEL PIN Ø8 MM
9 17094914 WASHER 8x16
10 16605734 HEXAGON BOLT M8X30 MM
11 16606524 HEXAGON BOLT M8X70 MM
12 16043521 SCREW M8X22
13 16044921 HEXAGON BOLT M8X1,25X85 MM
14 16605824 HEXAGON BOLT M8X35 MM
15 16606124 HEXAGON BOLT M8X50 MM
16 99469265 SHAFT SEAL CORCOS
17 13516821 STUD M8X12X20 MM
18 17037931 HEXAGON NUT M8X1,25
31 4540660 COVER
32 16743424 STUD M5X10X10
33 8111654 FLYWHEEL HOUSING ASSY
34 4787154 SPACING BAR
35 17037721 NUT M5X0,8
36 17275510 DOWEL PIN Ø10 MM
37 17494634 SPRING WASHER Ø5,1X9,2 MM
38 17091974 SPRING WASHER Ø14X32 MM SP=3,4 MM
39 98489586 REAR C.CASE COVER
40 4849994 FLAT ENGINE GASKET
42 17494904 WASHER Ø10X18,1X2,2 MM
43 99457401 SHAFT SEAL CORCOS
44 4781935 REAR C.CASE COVER [up to 711748]
45 16736024 STUD M14X70
46 17038721 NUT M14X2 [from ...]
47 61315660 SCREW
48 17094714 WASHER Ø6,4X12 MM
49 8020323 OIL RETAINER FRONT [from 03-95]
