8041SRM15.10

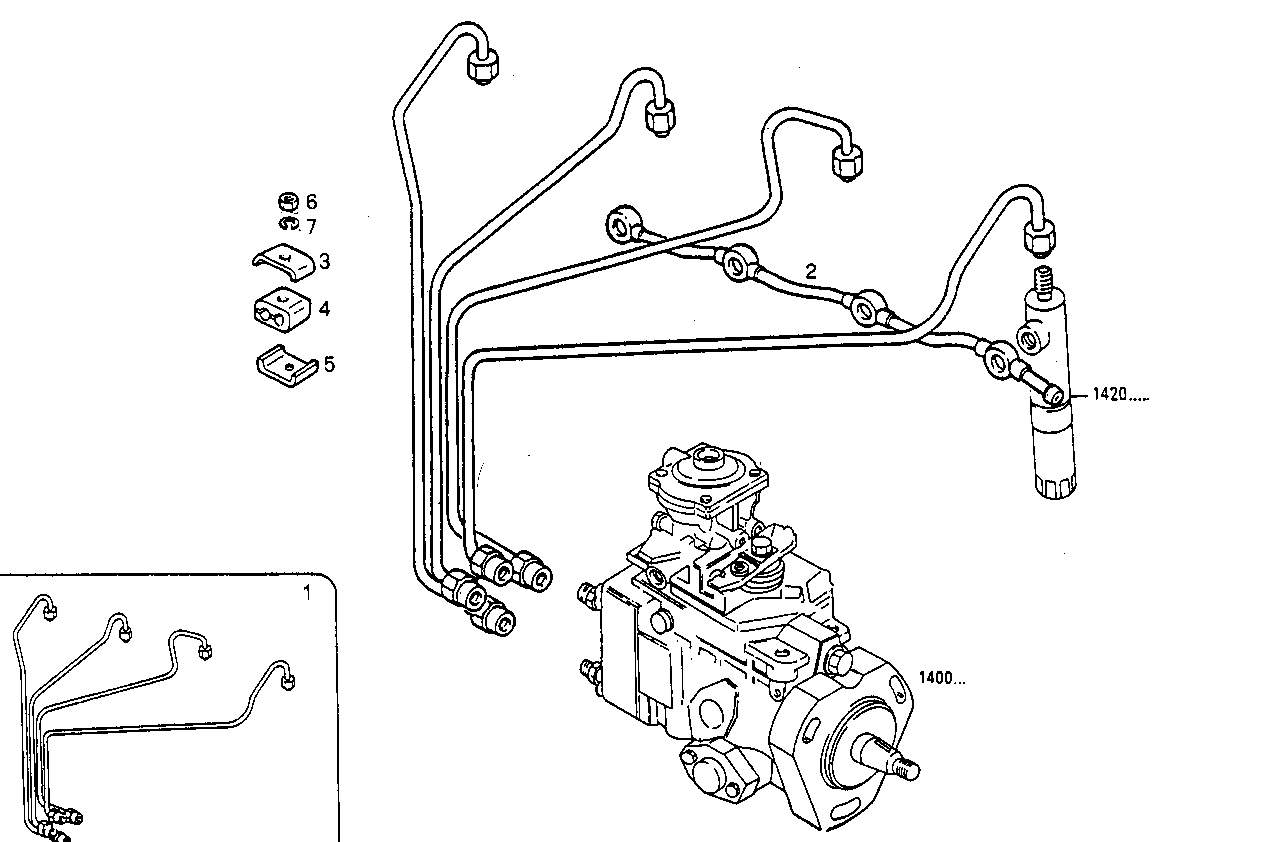

2020.019 INJECTION PIPES
| Item | Part number | Description |
|---|---|---|
| 1 | 8108420 | INJECTION LINE SET |
| 2 | 4788076 | FUEL LINE 1C |
| 3 | 8108739 | CLAMP |
| 4 | 8108740 | DOWEL |
| 5 | 8108738 | PLATE |
| 6 | 15896211 | HEXAGON NUT M6 |
| 7 | 17088474 | WASHER Ø6X12 MM |
