8041SRM15.10

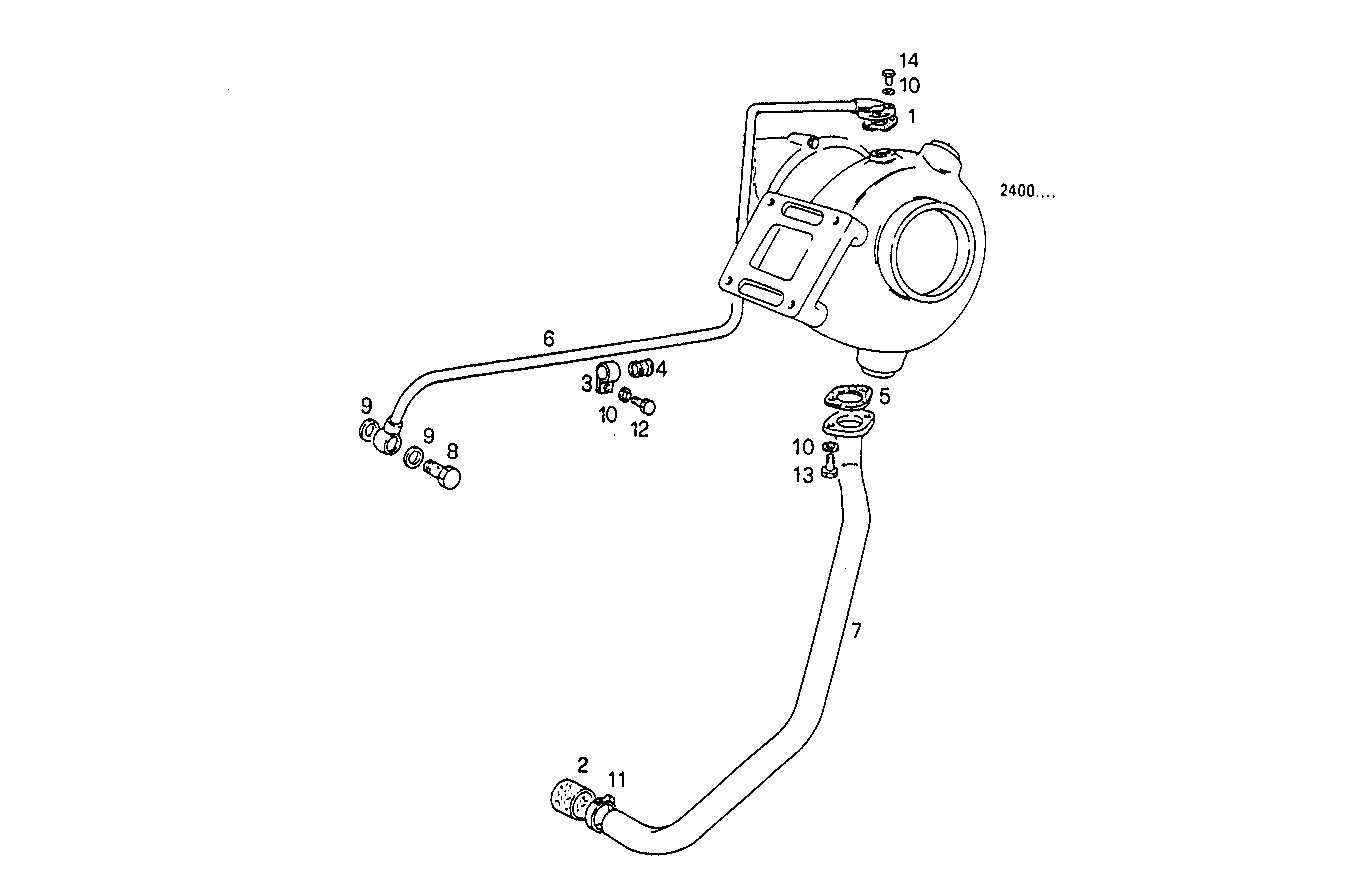

3010.016/02 LUBE OIL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 98415922 | FLAT ENGINE GASKET |
| 2 | 98420478 | RUBBER SLEEVE |
| 3 | 4755963 | FASTENING BRACKET |
| 4 | 4755964 | RUBBER PAD |
| 5 | 98415923 | FLAT ENGINE GASKET |
| 6 | 8011347 | OIL LINE |
| 7 | 8111052 | OIL LINE |
| 8 | 4864084 | BANJO BOLT M16X1,5 |
| 9 | 98474309 | WASHER Ø16X24 MM SP=1,9 MM |
| 10 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 11 | 17764593 | CLIP Ø20/32 MM |
| 12 | 16605424 | SCREW M8X16 MM (8.8) |
| 13 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 14 | 16605824 | HEXAGON BOLT M8X35 MM |
