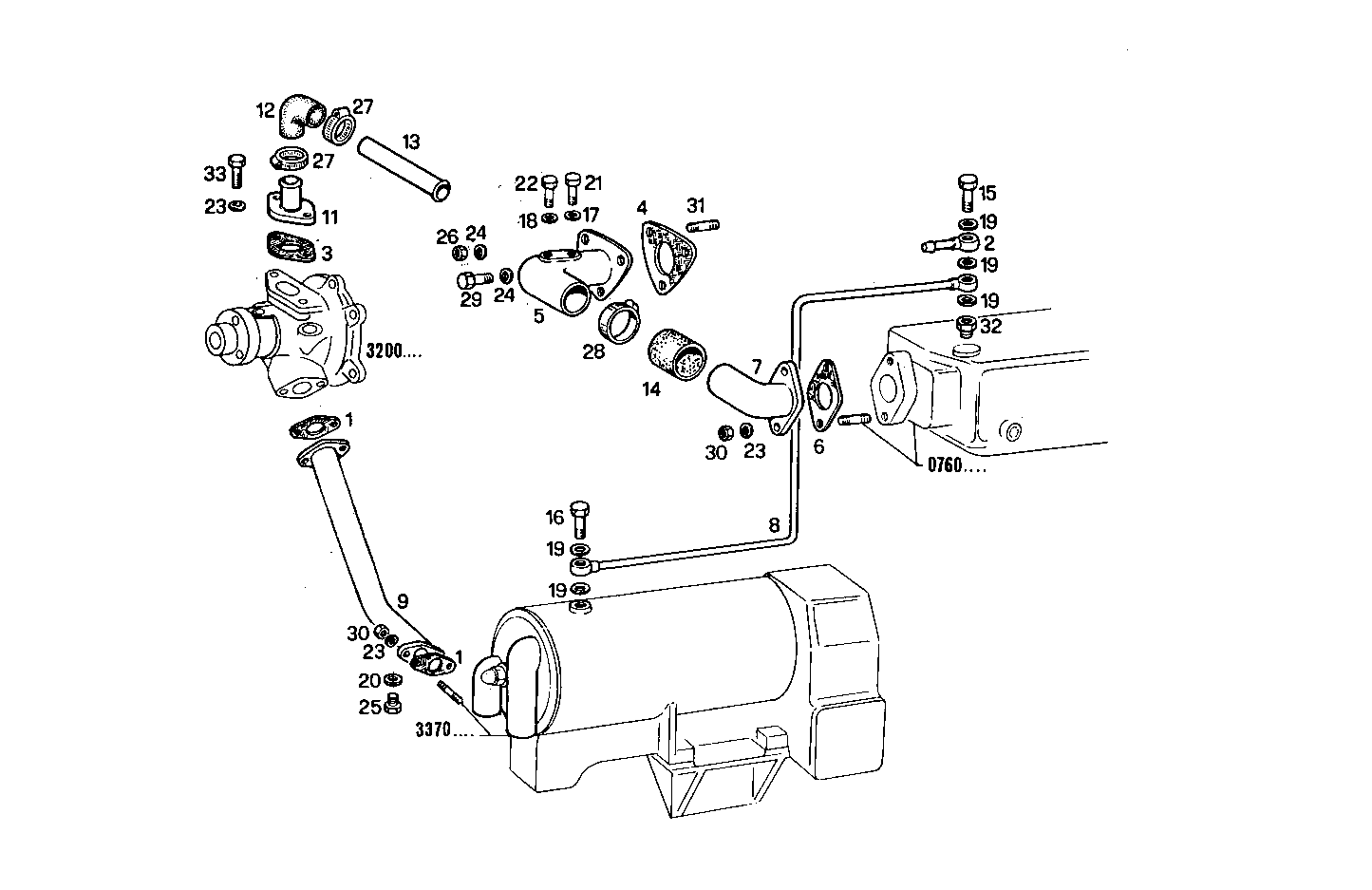

| Item |
Part number |
Description |
|
1 |
98418621 |
GASKET |
|
2 |
4636689 |
SWIVEL COUPLING |
|
3 |
98417182 |
FLAT ENGINE GASKET [up to 07-92] |
|
4 |
4851926 |
FLAT ENGINE GASKET |
|
5 |
4919685 |
WATER PIPE |
|
6 |
8009640 |
GASKET |
|
7 |
4919235 |
WATER PIPE |
|
8 |
8011348 |
WATER PIPE |
|
9 |
8110805 |
WATER PIPE |
|
11 |
8108080 |
WATER PIPE [up to 07-92] |
|
12 |
8108085 |
RUBBER SLEEVE |
|
13 |
8113951 |
WATER PIPE |
|
14 |
10136187 |
RUBBER SLEEVE |
|
15 |
4927823 |
SCREW CONNECTOR |
|
16 |
10181717 |
SCREW CONNECTOR M12X1,5X23 |
|
17 |
10278660 |
SEAL GASKET Ø16X22 MM SP=1 MM |
|
18 |
10263460 |
WASHER Ø22X28X1,5 MM |
|
19 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
|
20 |
10284460 |
SEAL GASKET Ø10X16 MM |
|
21 |
16992440 |
THREADED PLUG M16X1,5 |
|
22 |
10305140 |
LOCK PLUG M22X1,5 |
|
23 |
11194079 |
SPRING WASHER Ø8X16 MM SP=1,9 MM |
|
24 |
11198379 |
SPRING WASHER Ø10X20 MM SP=2,6 |
|
25 |
11903040 |
LOCK PLUG M10X1 |
|
26 |
17038221 |
HEXAGON NUT M10 |
|
27 |
17764592 |
CLIP Ø20/32 MM |
|
28 |
12177090 |
CLIP Ø32-52 MM |
|
29 |
15004021 |
HEXAGON BOLT M10X1,25X25 MM |
|
30 |
17037931 |
HEXAGON NUT M8X1,25 |
|
31 |
13449521 |
STUD M10X15X25 |
|
32 |
8113807 |
PIPE SOCKET |
|
33 |
10902221 |
HEXAGON BOLT M6X16 MM |
