8041SRM15.10

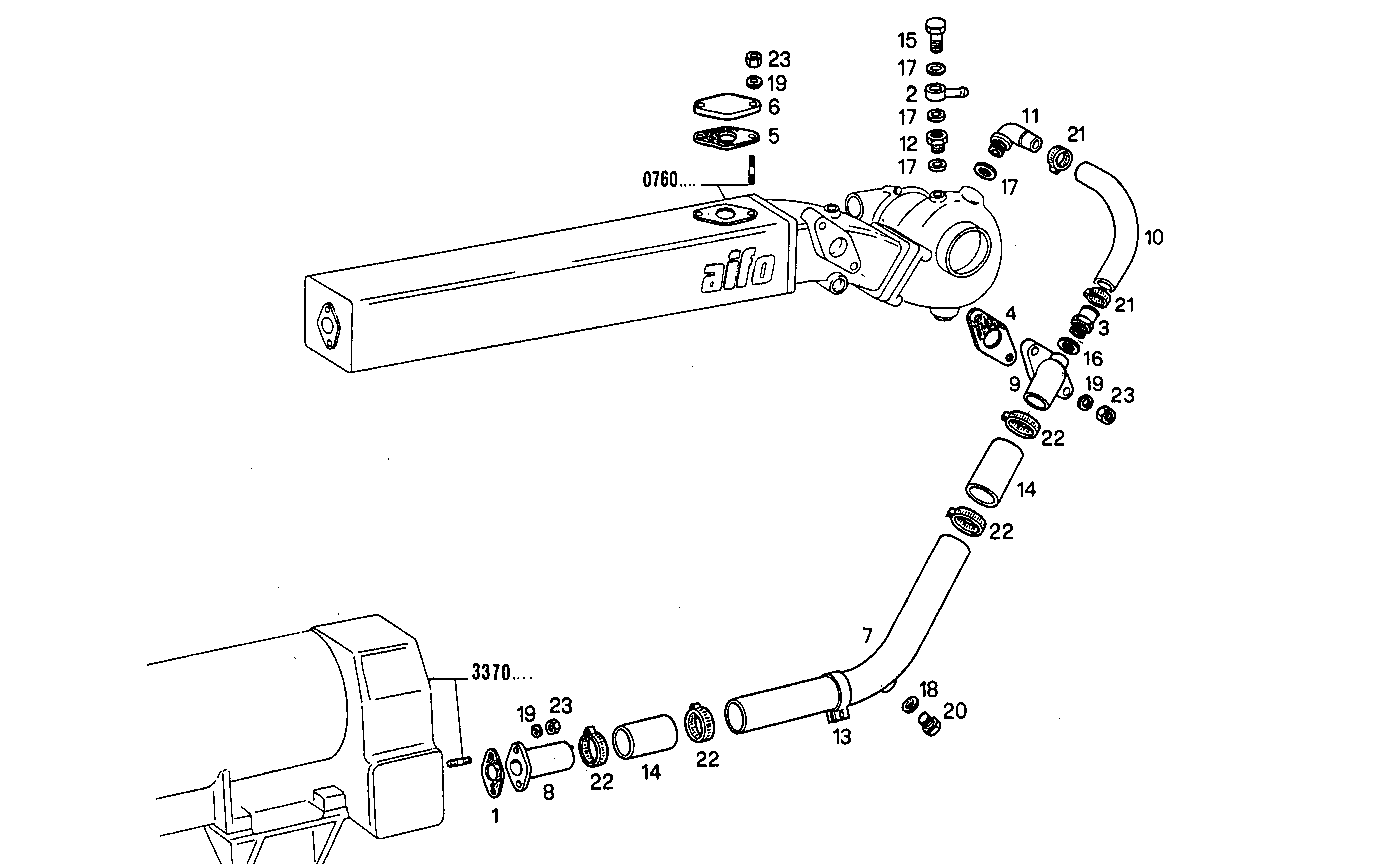

3210.035/02 WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 98418621 | GASKET |
| 2 | 4636689 | SWIVEL COUPLING |
| 3 | 4633506 | THREADED UNION M22X1,5 |
| 4 | 4745724 | GASKET |
| 5 | 8009640 | GASKET |
| 6 | 8100154 | COVER |
| 7 | 8111057 | WATER PIPE |
| 8 | 8100081 | WATER PIPE |
| 9 | 8111058 | WATER PIPE |
| 10 | 8112680 | WATER HOSE |
| 11 | 4527314 | PIPE SOCKET |
| 12 | 8111062 | PIPE SOCKET |
| 13 | 4936741 | CLIP |
| 14 | 10136187 | RUBBER SLEEVE |
| 15 | 4927823 | SCREW CONNECTOR |
| 16 | 10279560 | SEAL GASKET Ø22,2 MM |
| 17 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 18 | 10284460 | SEAL GASKET Ø10X16 MM |
| 19 | 11194071 | WASHER Ø8X16X1,9 MM |
| 20 | 11903040 | LOCK PLUG M10X1 |
| 21 | 17764592 | CLIP Ø20/32 MM |
| 22 | 12177090 | CLIP Ø32-52 MM |
| 23 | 17037931 | HEXAGON NUT M8X1,25 |
