8041SRM15.10

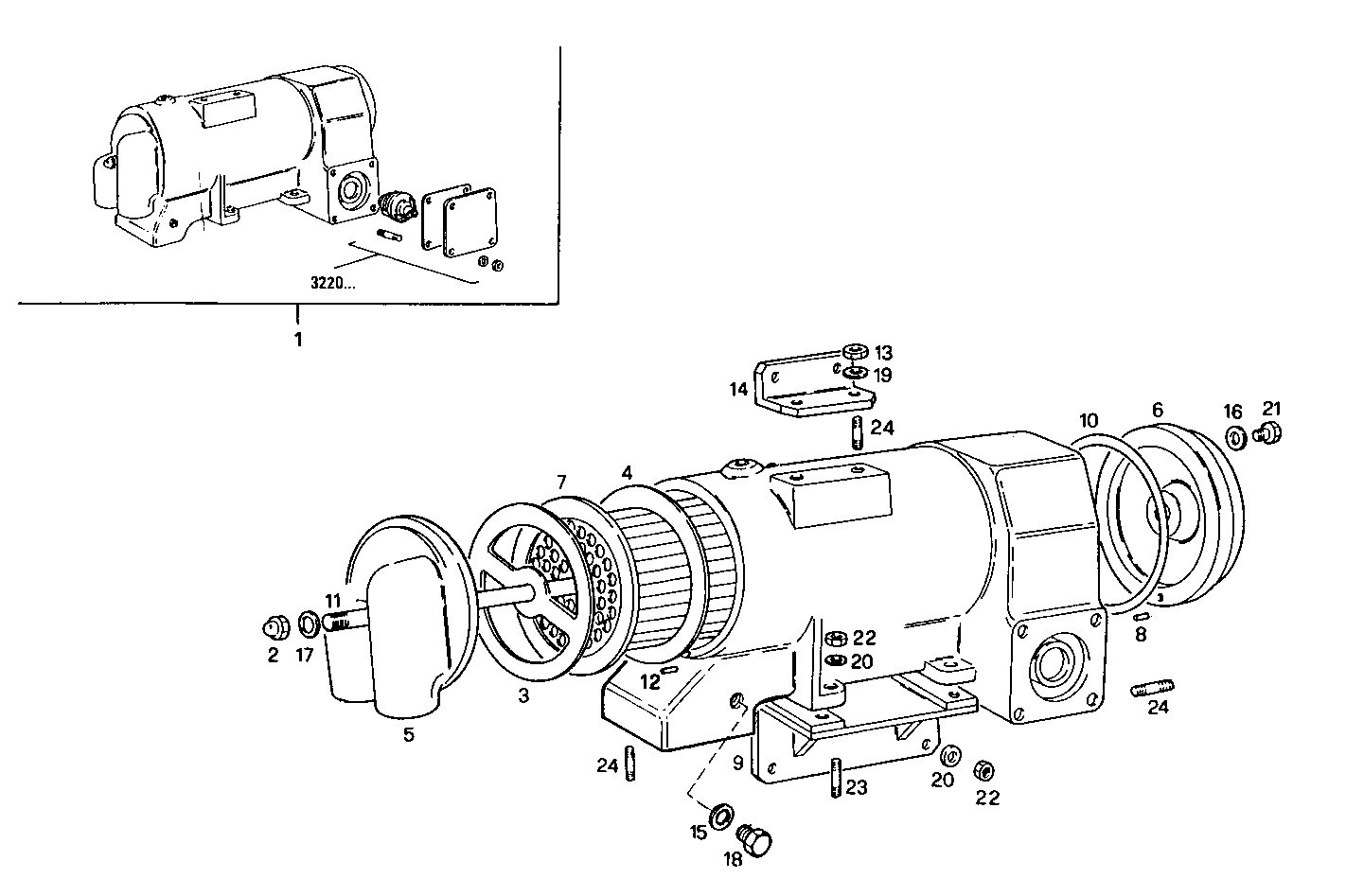

3370.002 FRESH WATER - SEA WATER HEAT EXCHANGER
| Item | Part number | Description |
|---|---|---|
| 1 | 8111068 | WATER/SEA WATER HEAT EXCH ASSY |
| 2 | 14506240 | NUT |
| 3 | 4918921 | GASKET |
| 4 | 4930157 | GASKET |
| 5 | 4934732 | HEAT EXCHANG.COVER FRONT |
| 6 | 4934733 | HEAT EXCHANG.COVER REAR |
| 7 | 8109802 | TUBE STACK |
| 8 | 14163670 | DOWEL PIN Ø4 MM |
| 9 | 8110967 | SUPPORT |
| 10 | 4918846 | O-RING |
| 11 | 8111067 | TIE ROD |
| 12 | 14163870 | PIN |
| 13 | 17037931 | HEXAGON NUT M8X1,25 |
| 14 | 8113746 | RETAINER |
| 15 | 16508260 | WASHER Ø16X20 MM |
| 16 | 10284460 | SEAL GASKET Ø10X16 MM |
| 17 | 10298460 | SEAL GASKET Ø12X18 MM SP=1,5 MM |
| 18 | 16992440 | THREADED PLUG M16X1,5 |
| 19 | 11194074 | WASHER Ø8,4 MM |
| 20 | 17090274 | WASHER Ø10X20 MM |
| 21 | 11903140 | PLUG M10X1,25 |
| 22 | 17038221 | HEXAGON NUT M10 |
| 23 | 13449721 | STUD M10X15X30 |
| 24 | 13516821 | STUD M8X12X20 MM |
