8041SRM15.10

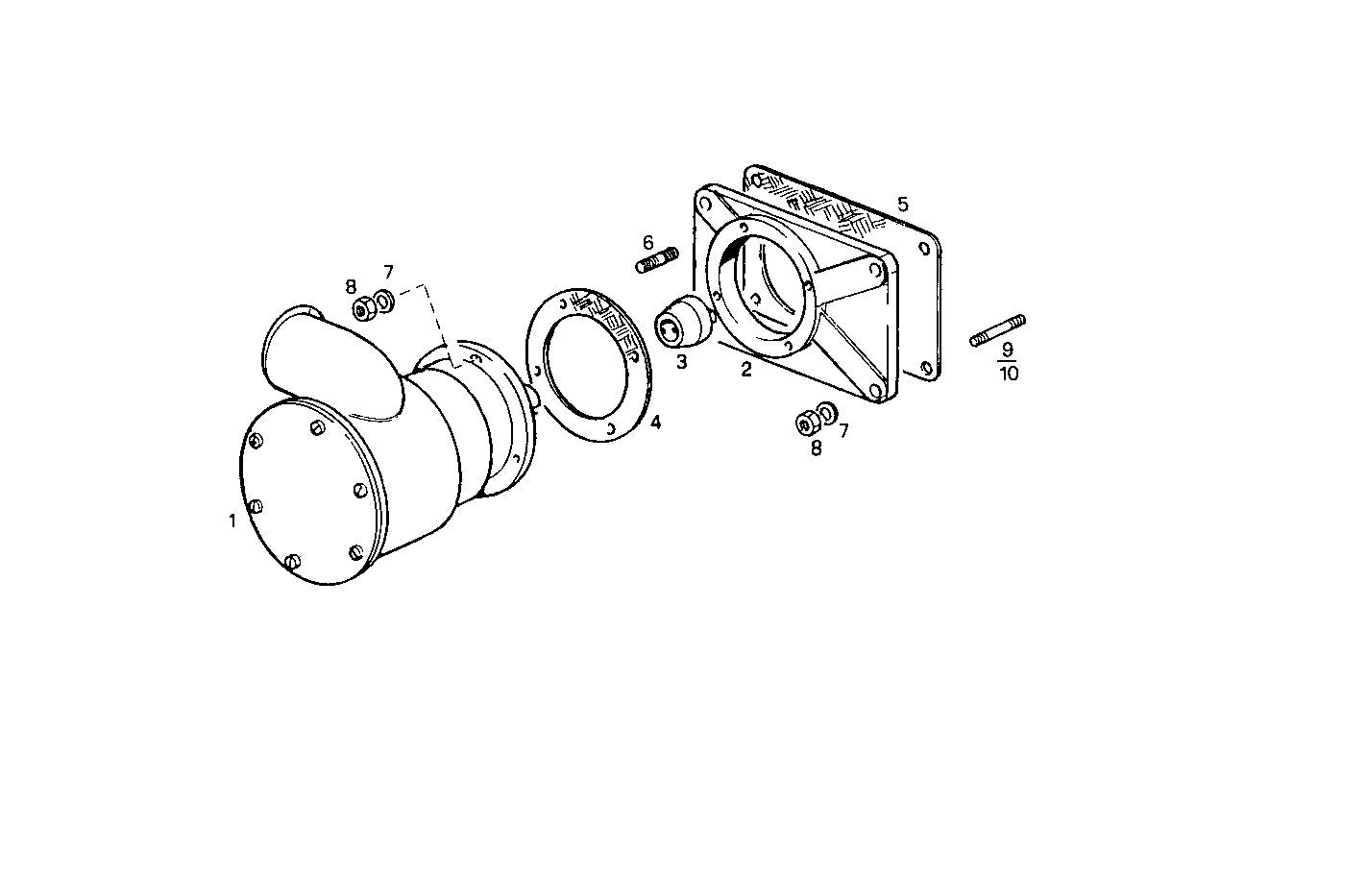

3380.014/01 SEA WATER PUMP - JABSCO
| Item | Part number | Description |
|---|---|---|
| 1 | 8107293 | SEA WATER PUMP ASSY JABSCO |
| 2 | 8108600 | SUPPORT |
| 3 | 4919289 | COUPLER |
| 4 | 8008922 | GASKET |
| 5 | 4850986 | FLAT ENGINE GASKET |
| 6 | 11500221 | STUD M6X9X16 MM |
| 7 | 11197779 | SPRING WASHER Ø6X12 MM |
| 8 | 15896211 | HEXAGON NUT M6 |
| 9 | 16745024 | STUD M6X12X20 MM |
| 10 | 4615276 | STUD M8X20 |
