8041SRM15.10

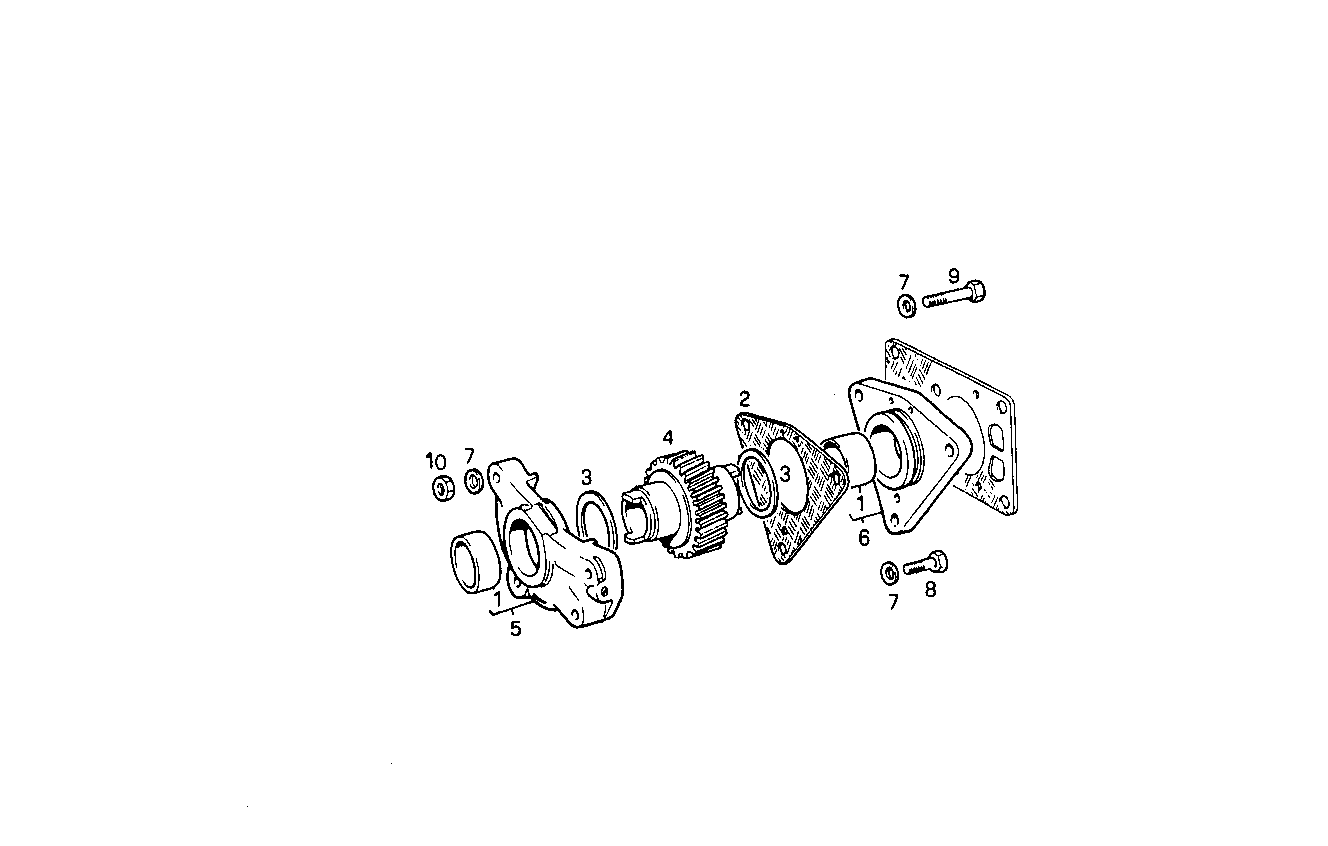

3500.002 POWER TAKE OFF
| Item | Part number | Description |
|---|---|---|
| 1 | 4788087 | BUSH VANDERVELL |
| 2 | 4851004 | FLAT ENGINE GASKET |
| 3 | 4667452 | SUPPORT RING |
| 4 | 4818560 | SHAFT |
| 5 | 4771242 | SUPPORT ASSY |
| 6 | 4619407 | SUPPORT ASSY REAR |
| 7 | 17089471 | SPRING WASHER Ø16X8 MM SP=1,4 MM |
| 8 | 16606324 | HEXAGON BOLT M8X60 MM |
| 9 | 16606424 | HEXAGON BOLT M8X65 MM |
| 10 | 17037931 | HEXAGON NUT M8X1,25 |
