8041SRM15.10

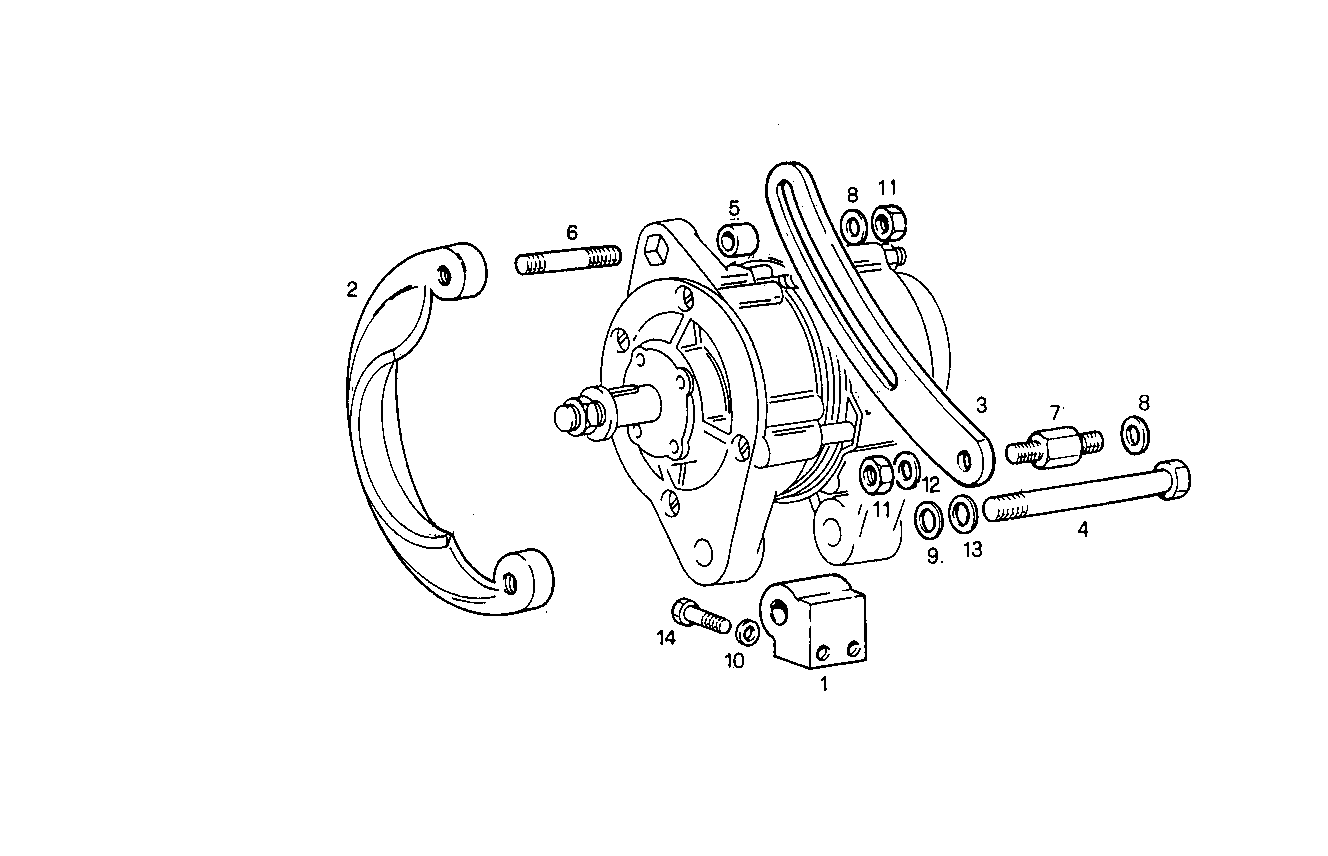

4010.005 MOUNT
| Item | Part number | Description |
|---|---|---|
| 1 | 4600128 | GENERATOR SUPPORT |
| 2 | 4618825 | PROTECTION |
| 3 | 4626125 | RETAINER |
| 4 | 4636776 | SCREW |
| 5 | 7302882 | SPACING BAR |
| 6 | 8111079 | STUD |
| 7 | 8110545 | STUD |
| 8 | 11193879 | SPRING WASHER Ø8X16 MM |
| 9 | 17091174 | SPRING WASHER Ø12X24 MM |
| 10 | 11198379 | SPRING WASHER Ø10X20 MM SP=2,6 |
| 11 | 17038221 | HEXAGON NUT M10 |
| 12 | 12646801 | WASHER Ø10,2 MM |
| 13 | 12646901 | WASHER Ø12X28 MM |
| 14 | 16606124 | HEXAGON BOLT M8X50 MM |
