8041SRM15.10

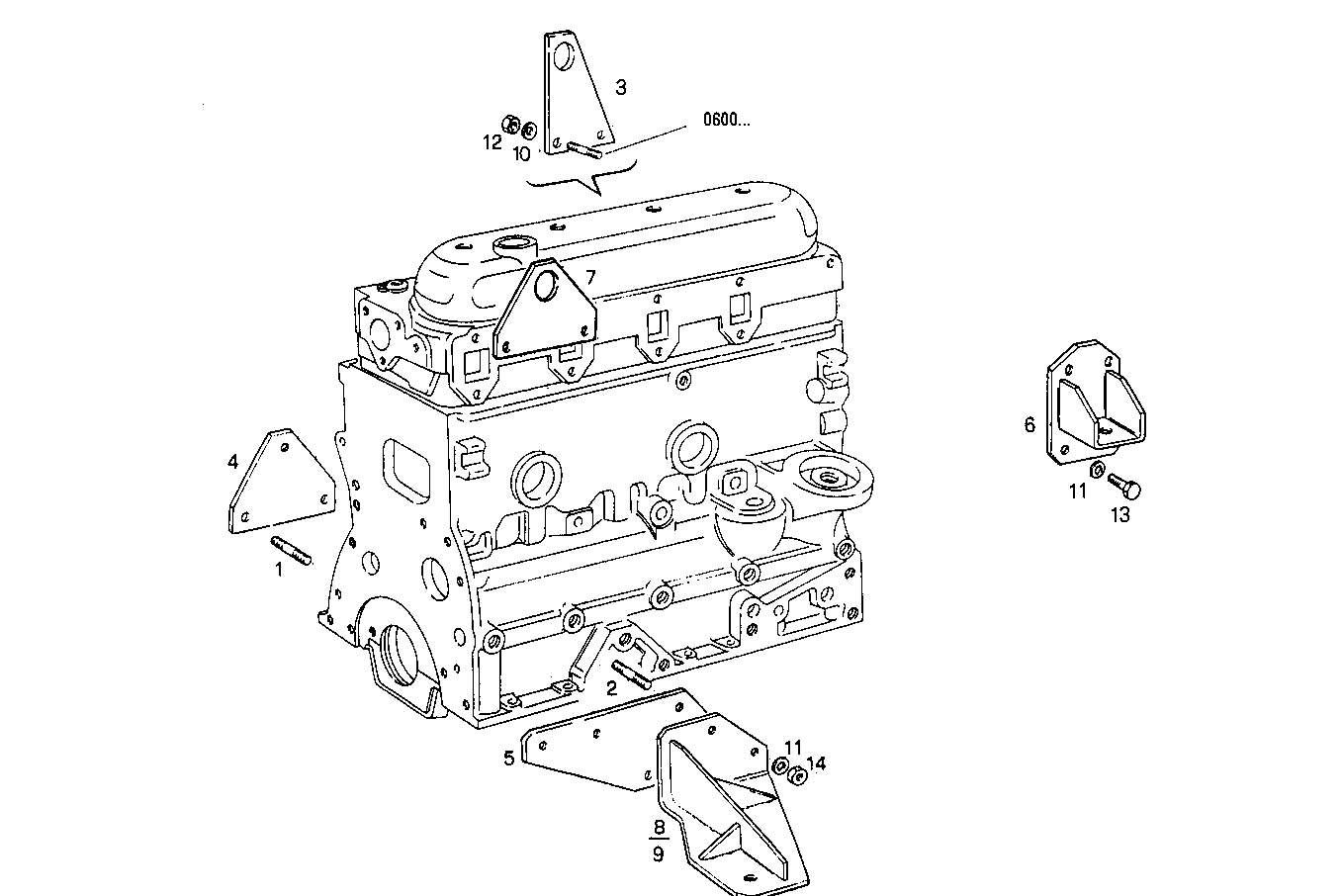

4500.015 ENGINE SUSPENSION
| Item | Part number | Description |
|---|---|---|
| 1 | 16733224 | STUD M12X1,75X30 |
| 2 | 16733424 | STUD M12X1,75X40 |
| 3 | 4932612 | HOOK REAR - RIGHT |
| 4 | 4919820 | SPACING BAR |
| 5 | 8112724 | SPACING BAR |
| 6 | 8113092 | SUPPORT REAR |
| 7 | 4930458 | PLATE |
| 8 | 4919786 | ENGINE SUSPENSION RIGHT |
| 9 | 8111075 | SUPPORT LEFT |
| 10 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 11 | 11198379 | SPRING WASHER Ø10X20 MM SP=2,6 |
| 12 | 17037931 | HEXAGON NUT M8X1,25 |
| 13 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
| 14 | 17038221 | HEXAGON NUT M10 |
