8041SRM15.10

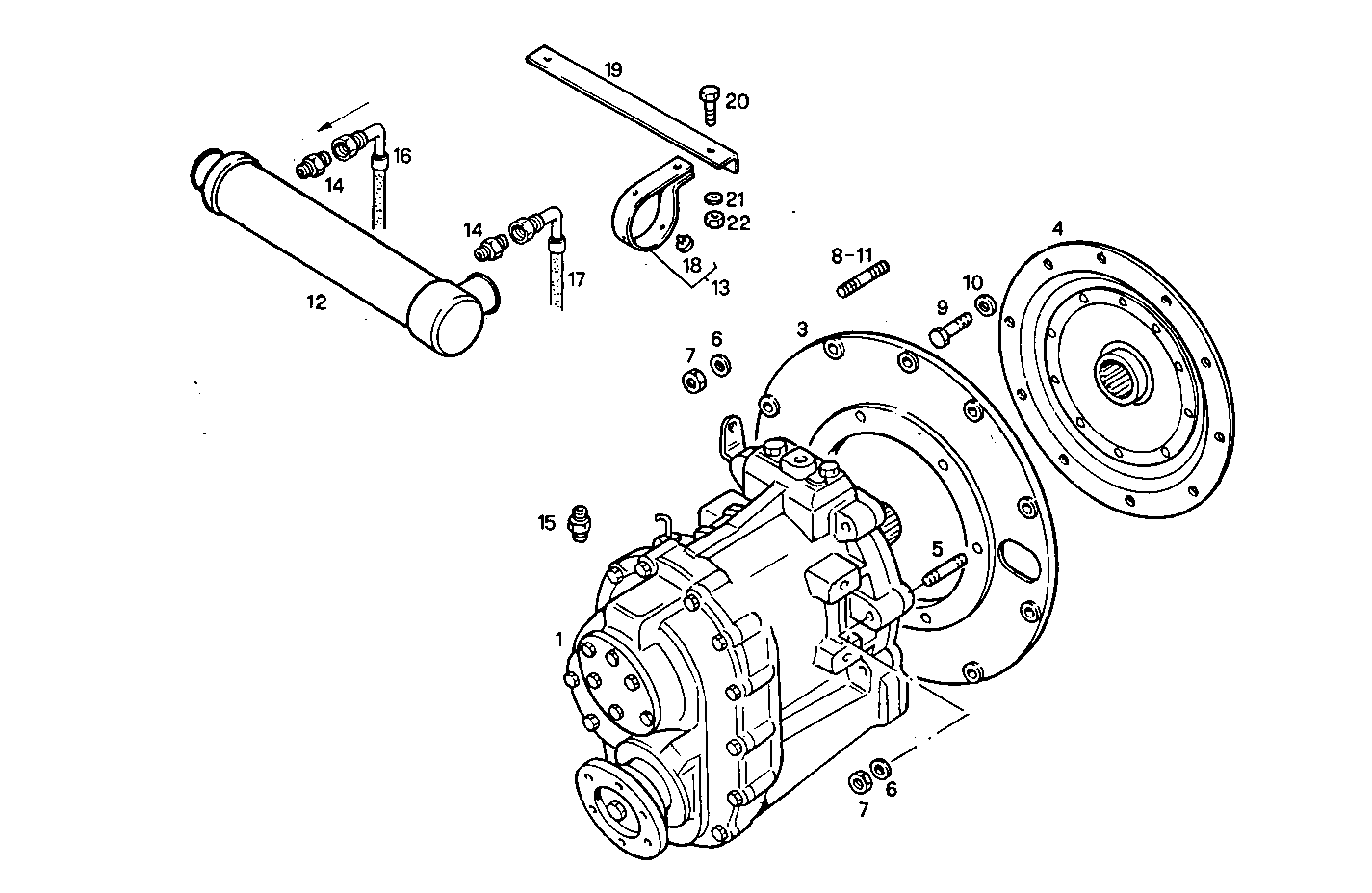

A51660010 MARINE GEAR ZF-MPM IRM 41 A2 - 1.46:1
| Item | Part number | Description |
|---|---|---|
| 1 | 8005774 | MARINE GEAR 1,46:1 |
| 3 | 4934782 | COUPLING BELL |
| 4 | 8113696 | FLEXIBLE COUPLING |
| 5 | 13547221 | STUD |
| 6 | 11198371 | SPRING WASHER Ø10X20 MM |
| 7 | 12164711 | HEXAGON NUT M10X1,25 |
| 8 | 13449721 | STUD M10X15X30 |
| 9 | 15970521 | HEXAGON BOLT M10X20 MM |
| 10 | 10571871 | SPRING WASHER Ø10,2X18,1 MM |
| 11 | 13449821 | STUD M10X1,25X15 MM |
| 12 | 4927783 | MARINE GEAR OIL HEAT EXCH ASSY [up to 04-95] |
| 13 | 8100667 | CLIP |
| 14 | 4935496 | PIPE SOCKET |
| 15 | 8101073 | PIPE SOCKET |
| 16 | 4933603 | OIL HOSE |
| 17 | 8100724 | HOSE |
| 18 | 4568427 | RUBBER PAD |
| 19 | 8113718 | SUPPORT |
| 20 | 15970421 | HEXAGON BOLT M10X18 MM |
| 21 | 17090174 | SPRING WASHER Ø10X20 MM |
