8045E00.00

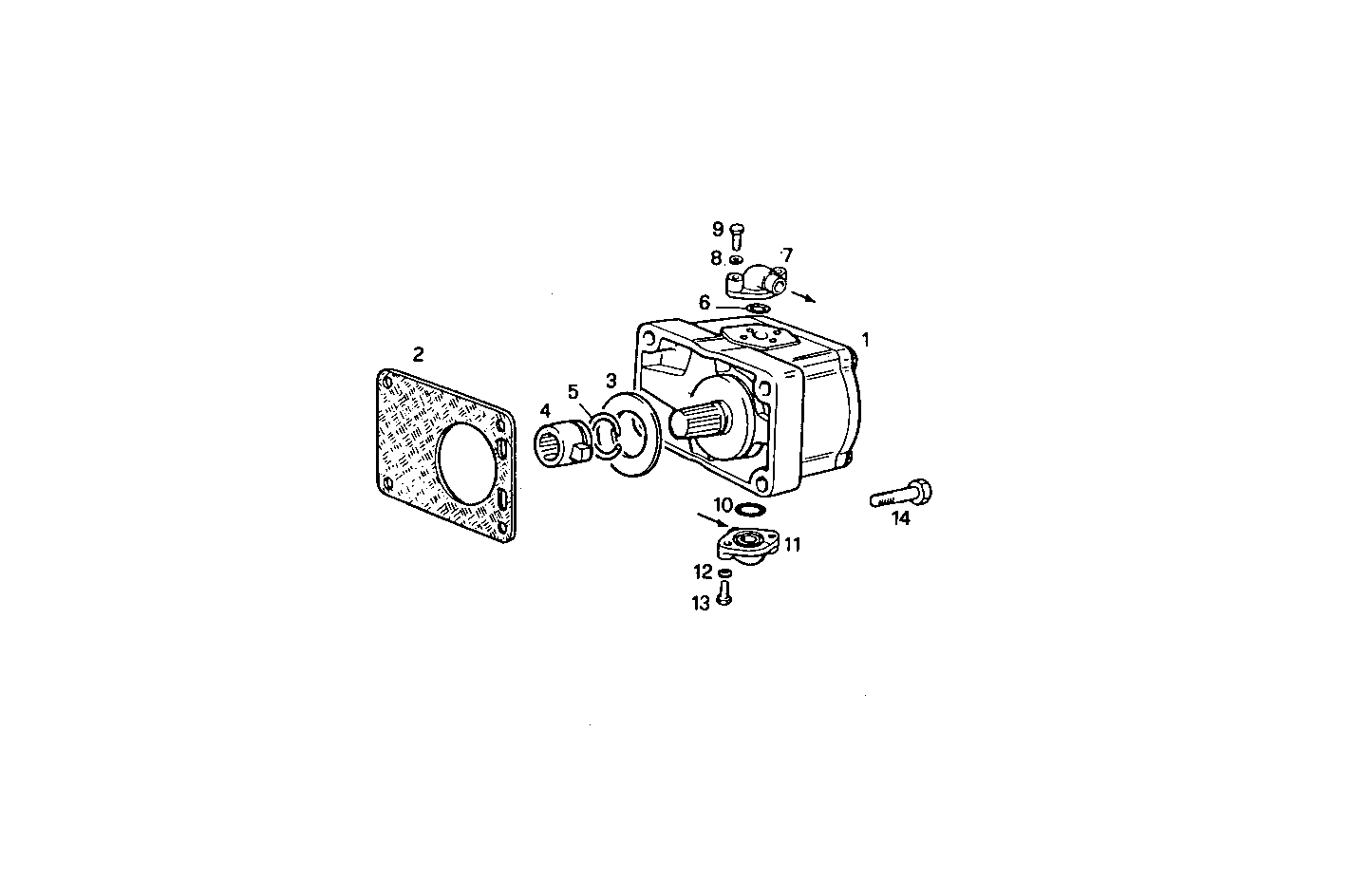

A09230001 FRONT HYDRAULIC PUMP - 11 cm3

Iveco/FPT FRONT HYDRAULIC PUMP

Item Part number Description
1 8025751 HYDRAULIC PUMP BOSCH
2 500310543 FLAT ENGINE GASKET
3 4609538 CENTERING RING
4 8023392 UNIVERSAL JOINT
5 17084476 CIRCLIP Ø14 MM
6 17282181 O-RING Ø21,8 MM SP=2,6 MM
7 4690715 PIPE SOCKET
8 17089574 WASHER Ø8X16 MM
9 16690824 CYLIND-HEAD SCREW M8X35 MM
10 17281781 O-RING Ø15,5 MM SP=2,6 MM
11 4670953 PIPE SOCKET
12 17088474 WASHER Ø6X12 MM
13 16689424 SOCKET-HEAD SCREW M6X30 MM
14 16605724 SCREW M8X1,25X30
