8045E00.00

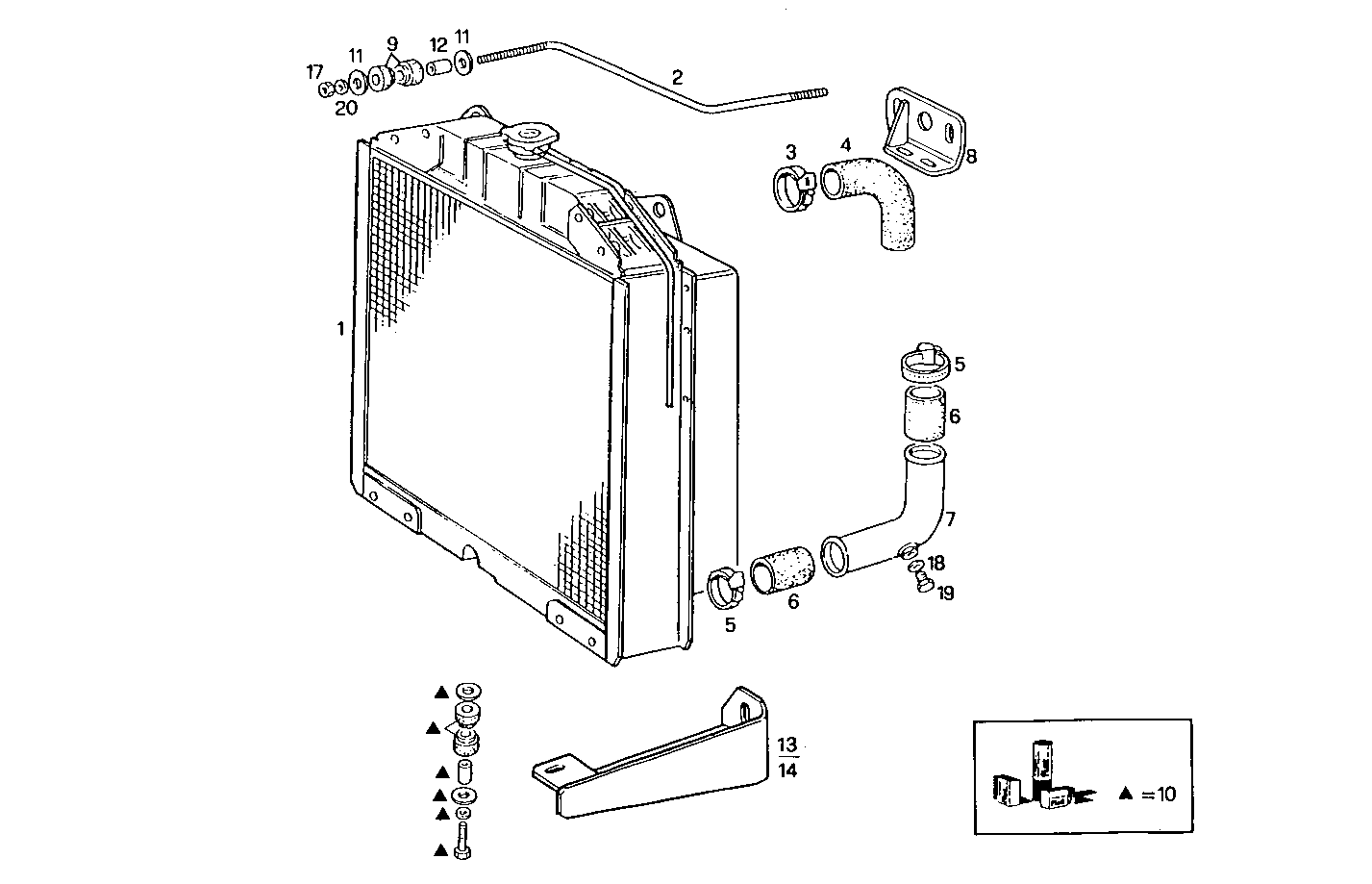

A22060021 OVERSIZE RADIATOR - reduced air circulation
| Item | Part number | Description |
|---|---|---|
| 1 | 8024529 | WATER RADIATOR ASSY |
| 2 | 8023968 | TIE ROD |
| 3 | 17764891 | CLIP �40/60 MM |
| 4 | 8024743 | WATER HOSE |
| 5 | 17764791 | CLIP �32/50 MM |
| 6 | 596152 | RUBBER SLEEVE |
| 7 | 8104865 | WATER PIPE |
| 8 | 8023950 | SUPPORT |
| 9 | 741569 | RUBBER LUG |
| 10 | 8090341 | KIT-RADIATOR A.S. COMPLETE |
| 11 | 741570 | WASHER �10X17 MM SP=2,3 |
| 12 | 8108634 | SPACING BAR |
| 13 | 8104796 | SUPPORT RIGHT |
| 14 | 8104799 | SUPPORT LEFT |
| 17 | 17037931 | HEXAGON NUT M8X1,25 |
| 18 | 4858606 | GASKET �10X14X1 MM |
| 19 | 16992111 | THREADED PLUG M10X1 |
| 20 | 17089774 | SPRING WASHER �8,4X22 MM SP=2,4 MM |
