8045E00.09A002

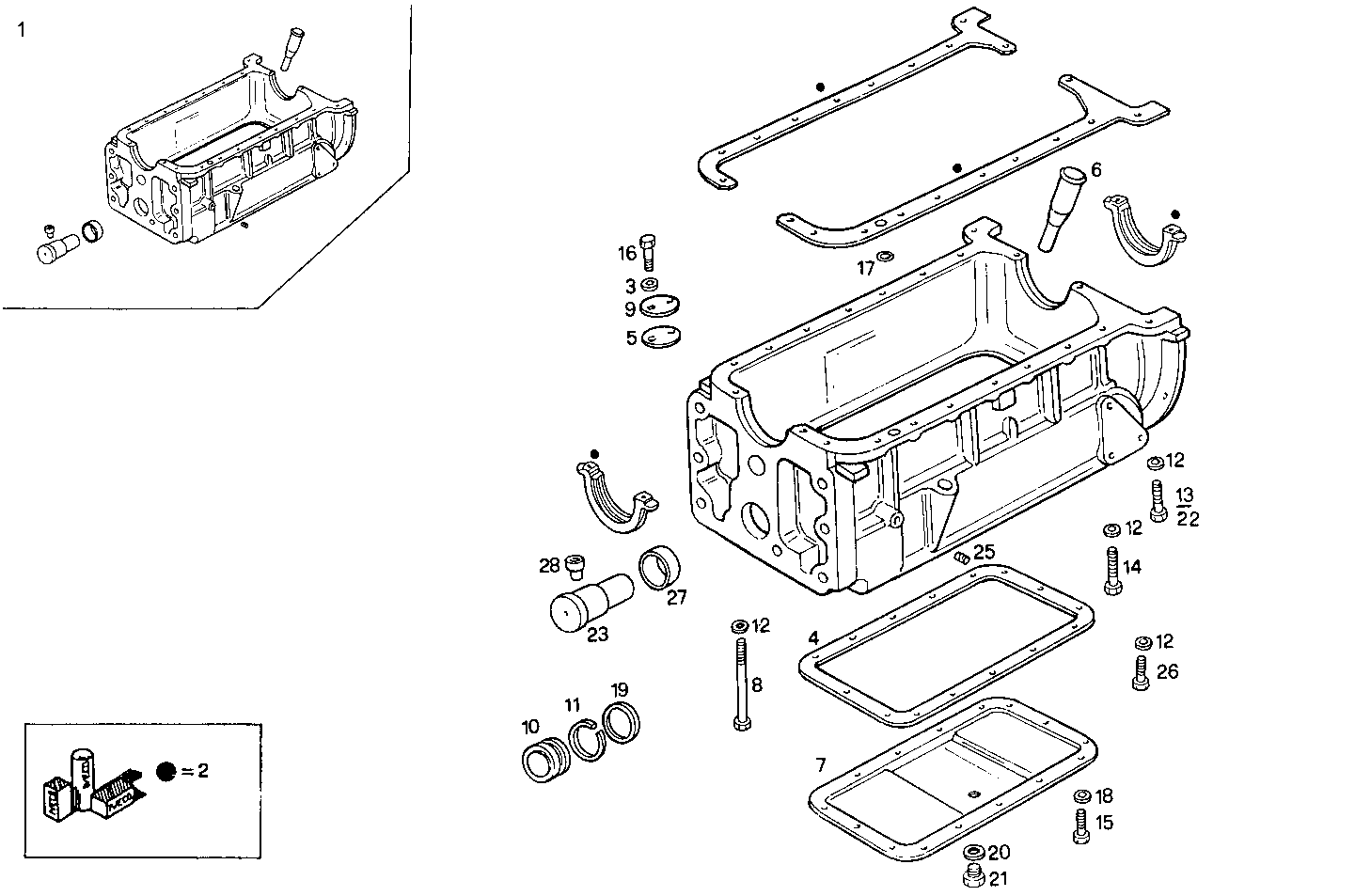

0420.151 OIL SUMP

Iveco/FPT OIL SUMP

Item Part number Description
1 99441686 OIL SUMP ASSY
2 1940004 KIT-OILSUMP GASKET
3 11199279 SPRING WASHER Ø5X10X0,5 MM
4 99439562 GASKET
5 98413493 GASKET
6 4694949 OIL LEVEL TUBE
7 99439348 COVER
8 99442242 SCREW
9 98413492 COVER
10 4812554 PLUG
11 16874476 CIRCLIP Ø72,5X2,5 MM
12 10516879 WASHER Ø10X18X2 MM
13 11306921 SCREW M10X1,25X30
14 15888721 HEXAGON BOLT M10X1,25X55 MM
15 16043324 HEXAGON BOLT M8X18 MM
16 16602124 SCREW M5X16 MM
17 14456981 O-RING Ø10,77 MM SP=2,62 [up to ...]
18 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
19 14464881 WASHER
20 17282181 O-RING Ø21,8 MM SP=2,6 MM
21 4847102 THREADED PLUG
22 11343724 HEXAGON BOLT M10X70 MM
23 4812930 PIN
25 99434231 THREADED PLUG M10X1,25
26 4607934 SCREW
27 4812465 CENTERING BUSH
28 4749132 BUSH
