8045E00.09A002

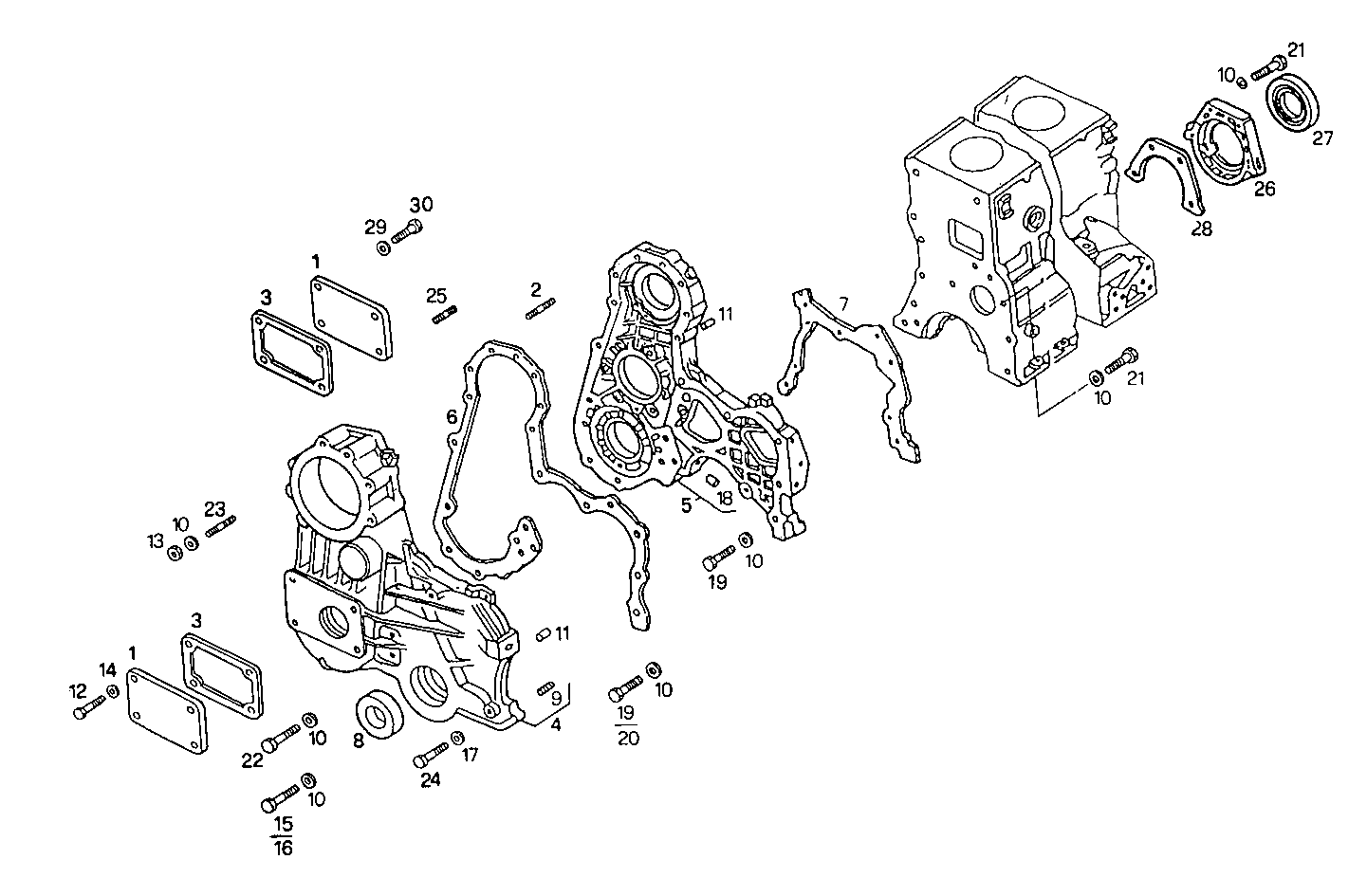

0430.205/01 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
1 564530 COVER
2 13546921 STUD M8X12X22 MM
3 4850986 FLAT ENGINE GASKET
4 4769749 FRONT C.CASE COVER ASSY
5 99469836 TIMINGGEAR HOUSIN ASSY
6 98418138 FLAT ENGINE GASKET
7 98424046 FLAT ENGINE GASKET
8 99469265 SHAFT SEAL CORCOS
9 13526170 THREADED INSERT M10X1,25X20 MM
10 17094914 WASHER 8x16
11 10839610 DOWEL PIN Ø8 MM
12 16603724 HEXAGON BOLT M6X20 MM (8.8)
13 17037931 HEXAGON NUT M8X1,25
14 17088474 WASHER Ø6X12 MM
15 16606524 HEXAGON BOLT M8X70 MM
16 16044924 SCREW M8X1,25X85 MM
17 17095014 WASHER Ø10X18 MM
18 4605220 OIL NOZZLE
19 16043521 SCREW M8X22
20 16605734 HEXAGON BOLT M8X30 MM
21 16605824 HEXAGON BOLT M8X35 MM
22 16606124 HEXAGON BOLT M8X50 MM
23 13543621 STUD M8X16X30 MM
24 15888824 HEXAGON BOLT M10X1,25X70 MM
25 13543620 STUD M8X16X30
26 98489586 REAR C.CASE COVER
27 99457401 SHAFT SEAL CORCOS
28 4849994 FLAT ENGINE GASKET
29 17798174 SPRING WASHER Ø6,1X11,8 MM
30 10902321 HEXAGON BOLT M6X18 MM (8.8)
