8045E00.09A002

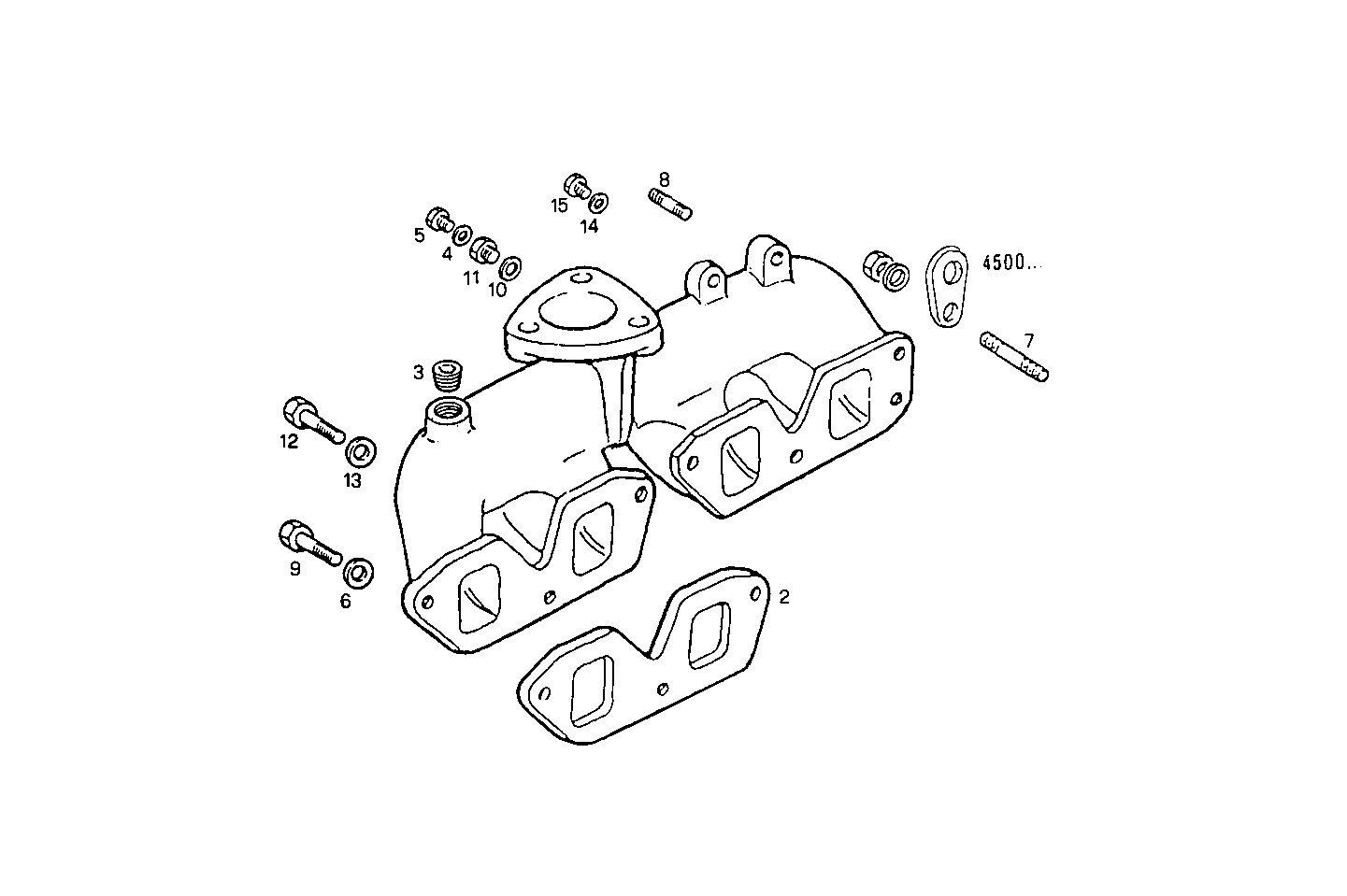

0710.137 INTAKE MANIFOLD
| Item | Part number | Description |
|---|---|---|
| 1 | 98409114 | INTAKE ELBOW |
| 2 | 4851921 | INTAKE ELBOW GASK. |
| 3 | 16997711 | LOCK PLUG M22X1,5 |
| 4 | 4858606 | GASKET Ø10X14X1 MM |
| 5 | 16992111 | THREADED PLUG M10X1 |
| 6 | 17094914 | WASHER 8x16 |
| 7 | 13543321 | STUD M8X16X20 MM |
| 8 | 13546321 | STUD M10X25 MM |
| 9 | 16605824 | HEXAGON BOLT M8X35 MM |
| 10 | 10279560 | SEAL GASKET Ø22,2 MM |
| 11 | 4663081 | PIPE SOCKET |
| 12 | 15970324 | SCREW |
| 13 | 10260160 | SEAL GASKET Ø10X14 MM SP=1 MM |
| 14 | 10260060 | SEAL GASKET Ø8X12X1 MM |
| 15 | 4724588 | PLUG |
