8045E00.09A002

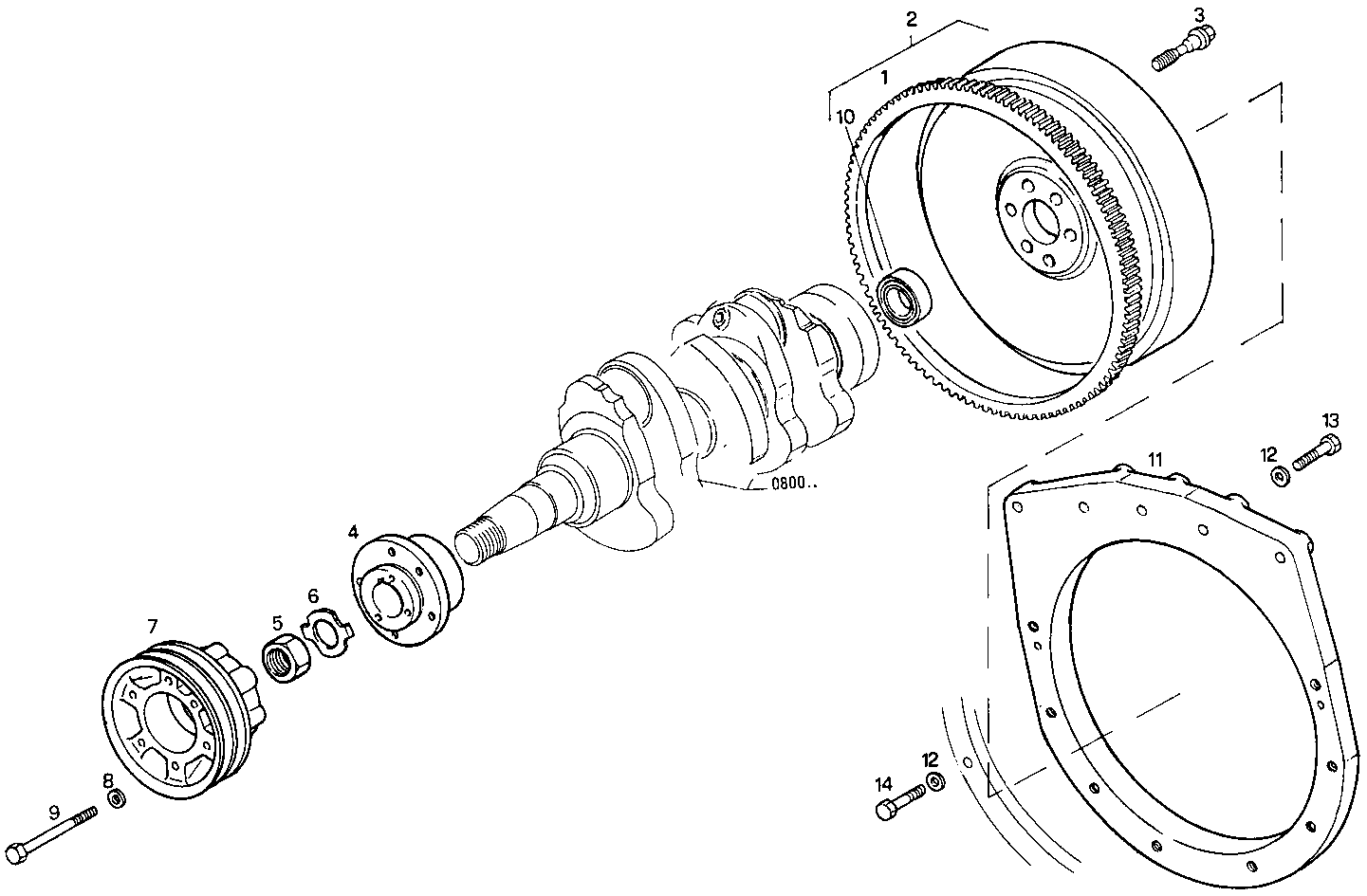

0830.193 ENGINE FLYWHEEL - DAMPER
| Item | Part number | Description |
|---|---|---|
| 1 | 4602143 | RING GEAR |
| 2 | 99462419 | FLYWHEEL ASSY |
| 3 | 4779121 | HEXAGON BOLT |
| 4 | 4655847 | HUB |
| 5 | 4600189 | NUT |
| 6 | 4600190 | LOCKING PLATE |
| 7 | 99481435 | PULLEY |
| 8 | 17090174 | SPRING WASHER Ø10X20 MM |
| 9 | 98402354 | HEXAGON BOLT M10X1,25 |
| 10 | 28043280 | DRIVE BEARING |
| 11 | 8030375 | SPACING BAR |
| 12 | 17091074 | WASHER Ø12X24X2,8 MM |
| 13 | 15541021 | HEXAGON BOLT M12X1,25X60 MM |
| 14 | 16610124 | HEXAGON BOLT M12X40 MM |
