8045E00.09A002

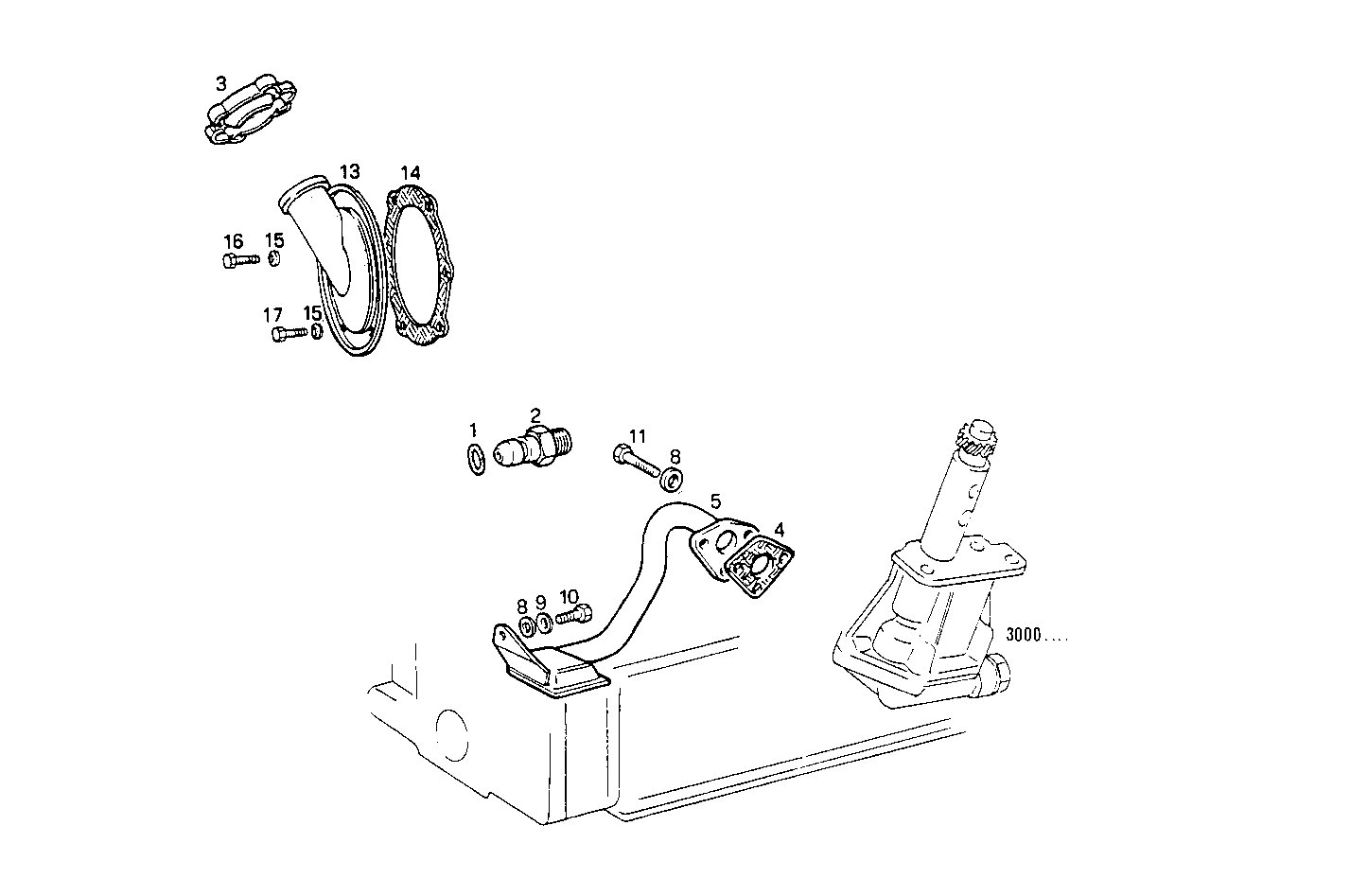

3010.174 LUBE OIL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 561293 | O-RING |
| 2 | 4785501 | SCREW CONNECTOR M10X1,25 |
| 3 | 4232606 | OIL FILLER PLUG ASSY |
| 4 | 98400788 | FLAT ENGINE GASKET |
| 5 | 99439442 | SUCTION STRAINER |
| 8 | 17089574 | WASHER Ø8X16 MM |
| 9 | 12646704 | WASHER Ø8X21X1,5 MM |
| 10 | 16605424 | SCREW M8X16 MM (8.8) |
| 11 | 16605524 | HEXAGON BOLT M8X20 MM |
| 13 | 4783048 | COVER |
| 14 | 98400781 | FLAT ENGINE GASKET |
| 15 | 17094914 | WASHER 8x16 |
| 16 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 17 | 16606324 | HEXAGON BOLT M8X60 MM |
