8045E00.50

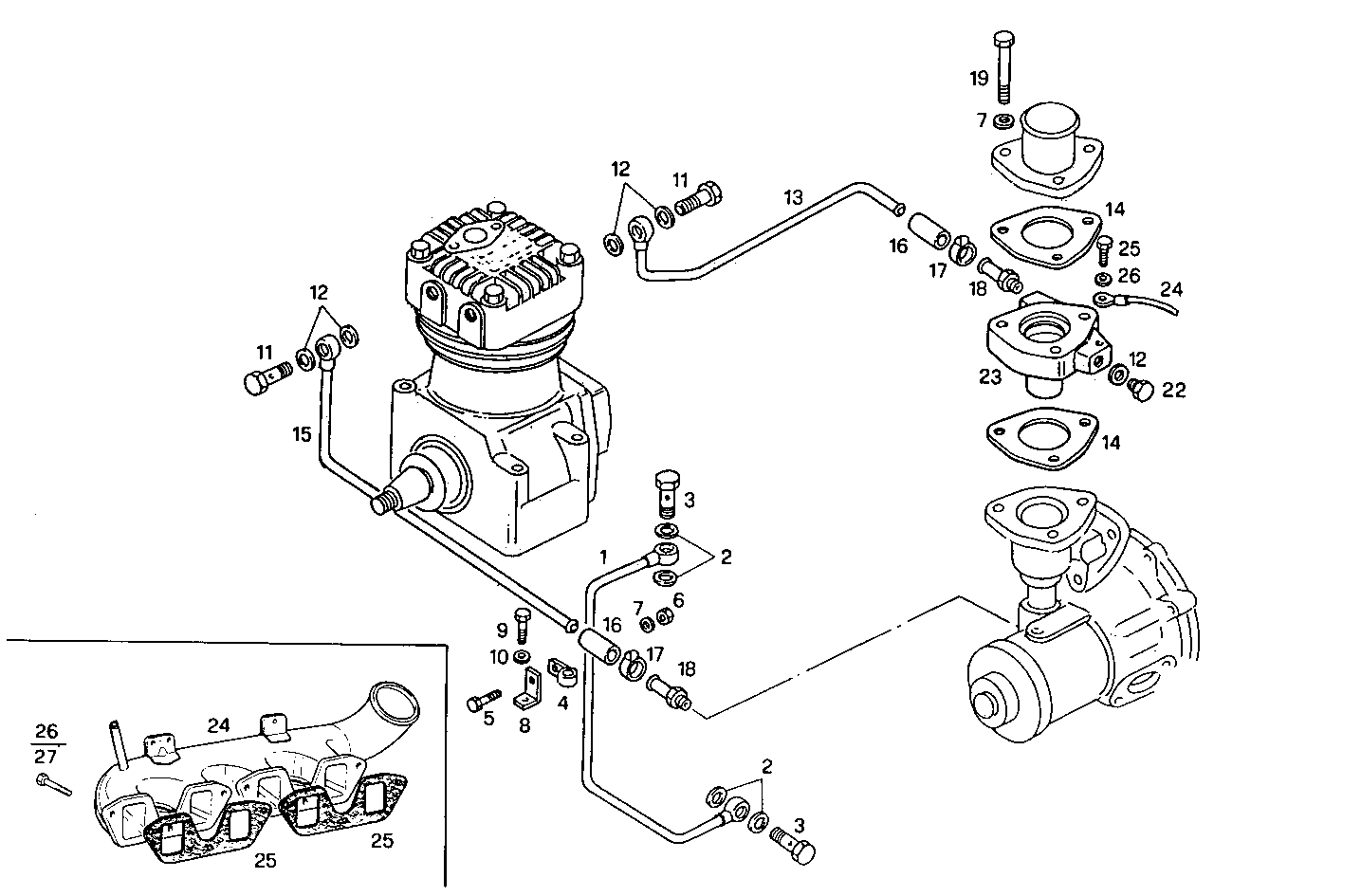

A18020014/01 AIR COMPRESSOR - 165cc

Iveco/FPT AIR COMPRESSOR

Item Part number Description
1 8010642 OIL LINE
2 4858606 GASKET Ø10X14X1 MM
3 4864080 SCREW CONNECTOR M10X1,25
4 17316190 PIPE CLIP Ø6 MM
5 16605524 HEXAGON BOLT M8X20 MM
6 17037931 HEXAGON NUT M8X1,25
7 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
8 4933030 RETAINER
9 15970521 HEXAGON BOLT M10X20 MM
10 17090174 SPRING WASHER Ø10X20 MM
11 4864084 BANJO BOLT M16X1,5
12 4858609 WASHER Ø16X22 MM SP=1,5 MM
13 8010640 WATER PIPE
14 98417863 GASKET
15 8010641 OIL LINE
16 98425477 WATER HOSE
17 17764491 CLIP Ø16/25 MM
18 4616630 THREADED UNION
19 16606124 HEXAGON BOLT M8X50 MM
21 8961599 WIRE/CABLE
22 16992411 THREADED PLUG M16X1,5
23 8007765 SPACING BAR
24 8009196 INTAKE ELBOW
25 4851921 INTAKE ELBOW GASK.
26 16605624 HEXAGON BOLT M8X25 MM (8.8)
28 16603424 SCREW M6X10
29 17088474 WASHER Ø6X12 MM
