8045E00.50

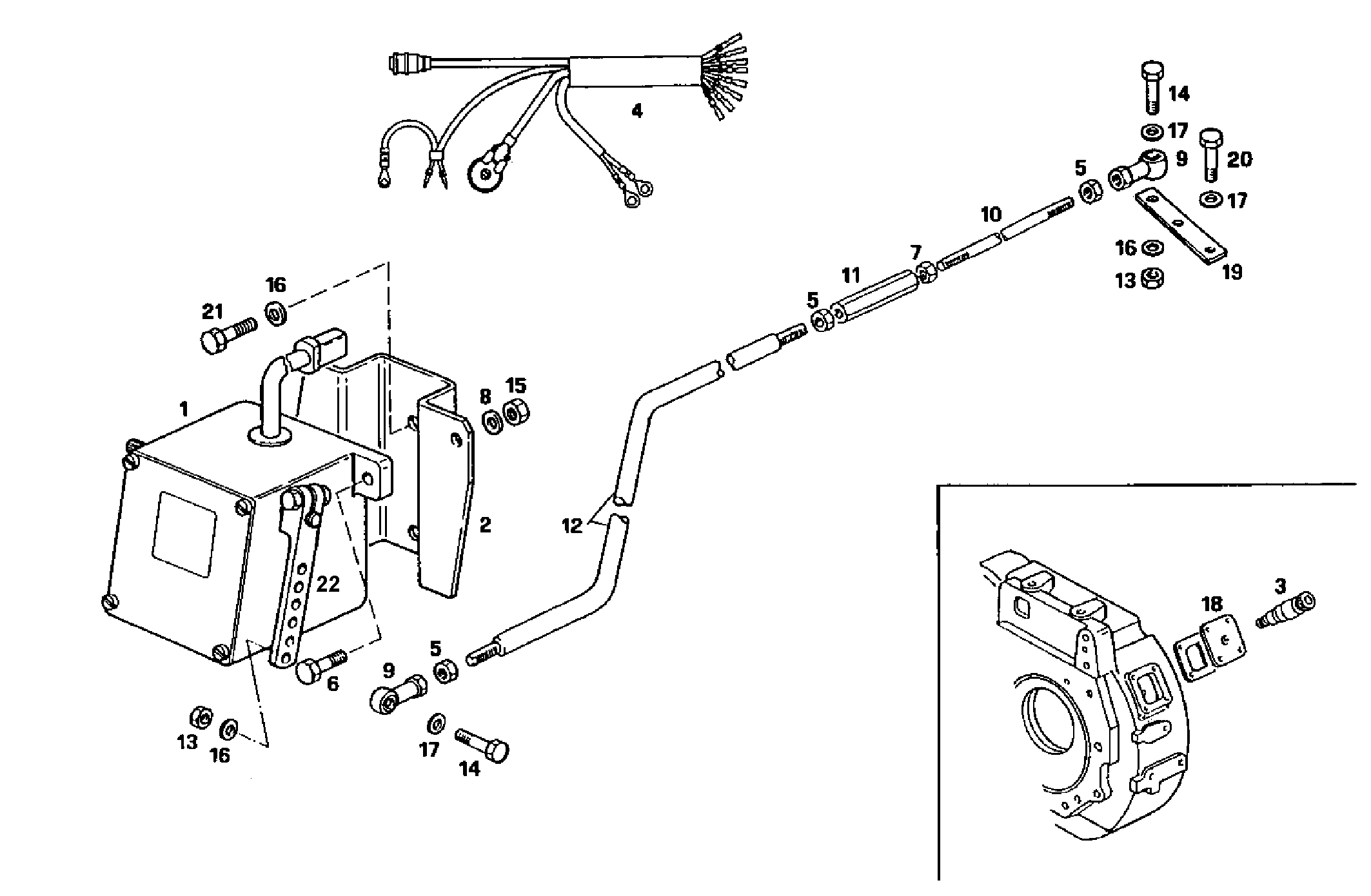

A28100007 ELECTRONIC GOVERNOR G.A.C. - 12V

Iveco/FPT ELECTRONIC GOVERNOR G.A.C.

Item Part number Description
1 8018971 ENGINE ACTUATOR ASSY
2 8028540 RETAINER
3 8018673 PICK-UP
4 8018968 ENGINE HARNESS
5 17037821 HEXAGON NUT M6X1
6 16605734 HEXAGON BOLT M8X30 MM
7 17040321 NUT M6
8 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
9 4934541 BRACE/STRUT
10 8823236 TIE ROD LEFT
11 17720114 TIE ROD
12 8823237 TIE ROD
13 17152721 NUT M6
14 16603824 SCREW M6X25
15 17037931 HEXAGON NUT M8X1,25
16 17094714 WASHER Ø6,4X12 MM
17 17088474 WASHER Ø6X12 MM
18 8025809 COVER
19 8024920 RETAINER
20 16603624 HEXAGON BOLT M6X16 MM (8.8)
21 15004021 HEXAGON BOLT M10X1,25X25 MM
22 8031536 LEVER
