8045E00.59A001

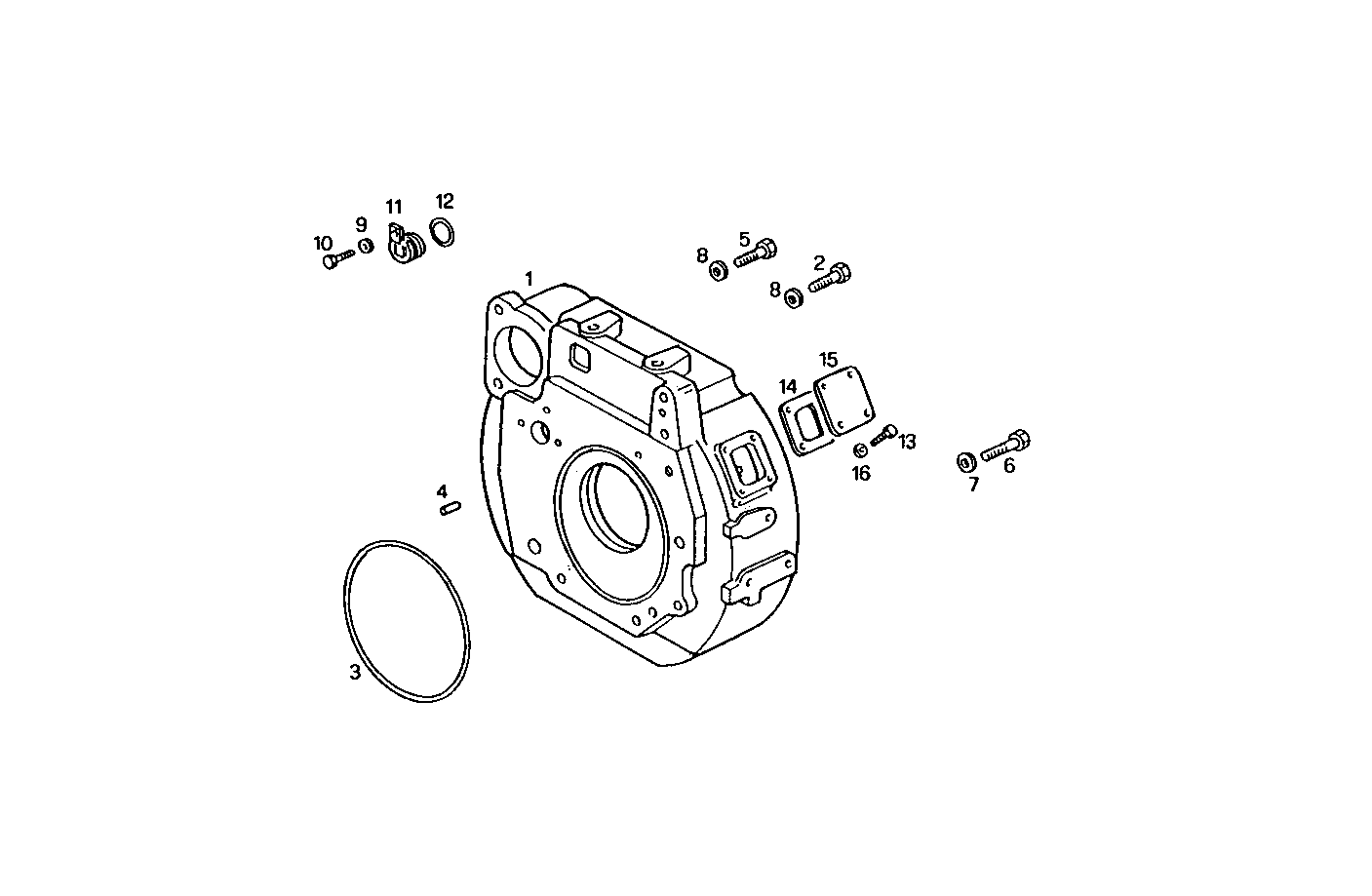

0430.186/02 INSERTED BOX ASSEM.
| Item | Part number | Description |
|---|---|---|
| 1 | 99443762 | FLYWHEEL HOUSING |
| 2 | 16612724 | HEXAGON BOLT |
| 3 | 14483081 | O-RING Ø5,33X196,2 MM |
| 4 | 17275510 | DOWEL PIN Ø10 MM |
| 5 | 16612324 | HEXAGON BOLT M14X35 MM |
| 6 | 11306921 | SCREW M10X1,25X30 |
| 7 | 17090174 | SPRING WASHER Ø10X20 MM |
| 8 | 11200174 | WASHER Ø14X32 MM |
| 9 | 17089574 | WASHER Ø8X16 MM |
| 10 | 16605424 | SCREW M8X16 MM (8.8) |
| 11 | 4718740 | PLUG |
| 12 | 14463880 | O-RING |
| 13 | 16043524 | SCREW M8X22 MM |
| 14 | 98417986 | FLAT ENGINE GASKET |
| 15 | 98417985 | COVER |
| 16 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
