8045E00.59A001

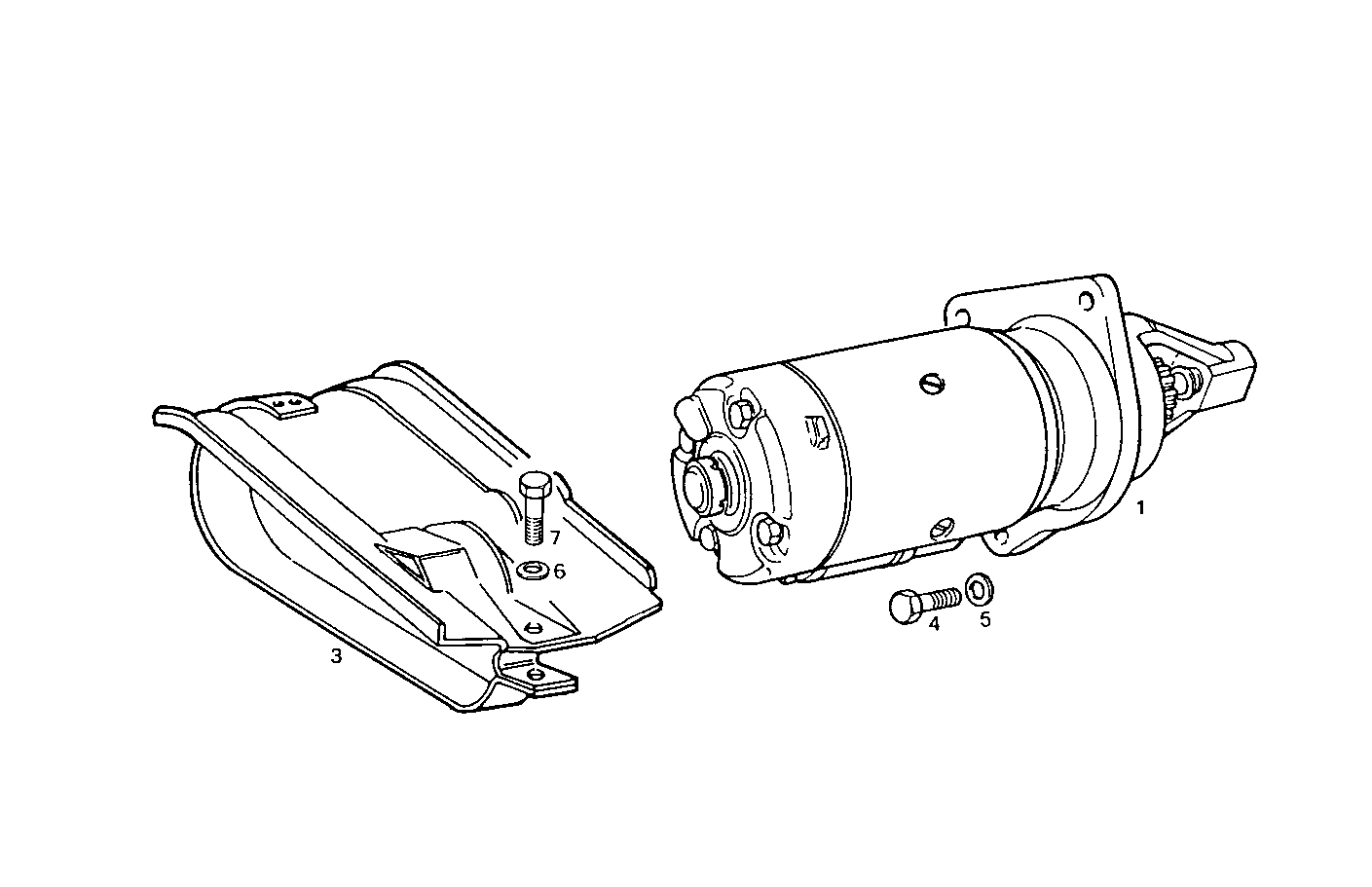

3600.086 STARTER MOTOR
| Item | Part number | Description |
|---|---|---|
| 1 | 504059251 | STARTER MOTOR ASSY BOSCH - 12V |
| 3 | 4721863 | PROTECTION |
| 4 | 11607724 | SCREW |
| 5 | 17090174 | SPRING WASHER Ø10X20 MM |
| 6 | 17798124 | WASHER |
| 7 | 16604124 | HEXAGON BOLT M6X40 MM |
