8045E00.59A007

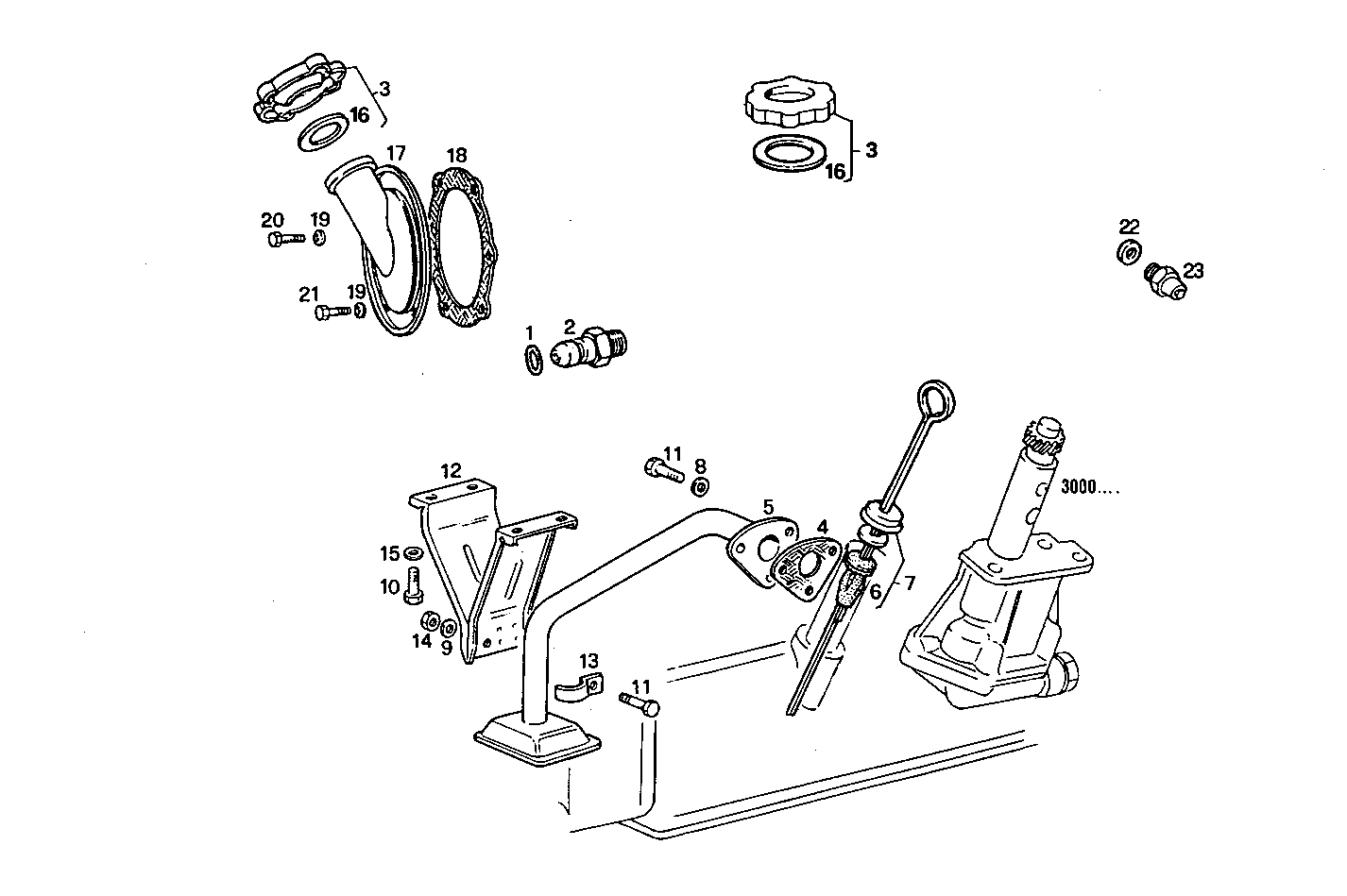

3010.163 LUBE OIL LINES

Iveco/FPT LUBE OIL LINES

Item Part number Description
1 561293 O-RING
2 4785501 SCREW CONNECTOR M10X1,25
3 4232606 OIL FILLER PLUG ASSY
4 98400788 FLAT ENGINE GASKET
5 4787048 SUCTION STRAINER
6 4624702 GASKET
7 4767573 OIL DIPSTICK ASSY
8 17089574 WASHER Ø8X16 MM
9 12646704 WASHER Ø8X21X1,5 MM
10 16605424 SCREW M8X16 MM (8.8)
11 16605524 HEXAGON BOLT M8X20 MM
12 4601844 RETAINER
13 4775924 RETAINER
14 17157021 NUT M8X1,25
15 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
16 98418978 GASKET
17 4782886 COVER
18 98400781 FLAT ENGINE GASKET
19 17094914 WASHER 8x16
20 16605624 HEXAGON BOLT M8X25 MM (8.8)
21 16606324 HEXAGON BOLT M8X60 MM
22 10298460 SEAL GASKET Ø12X18 MM SP=1,5 MM
23 4151564 PRESSURE SWITCH
