8045E00.59A008

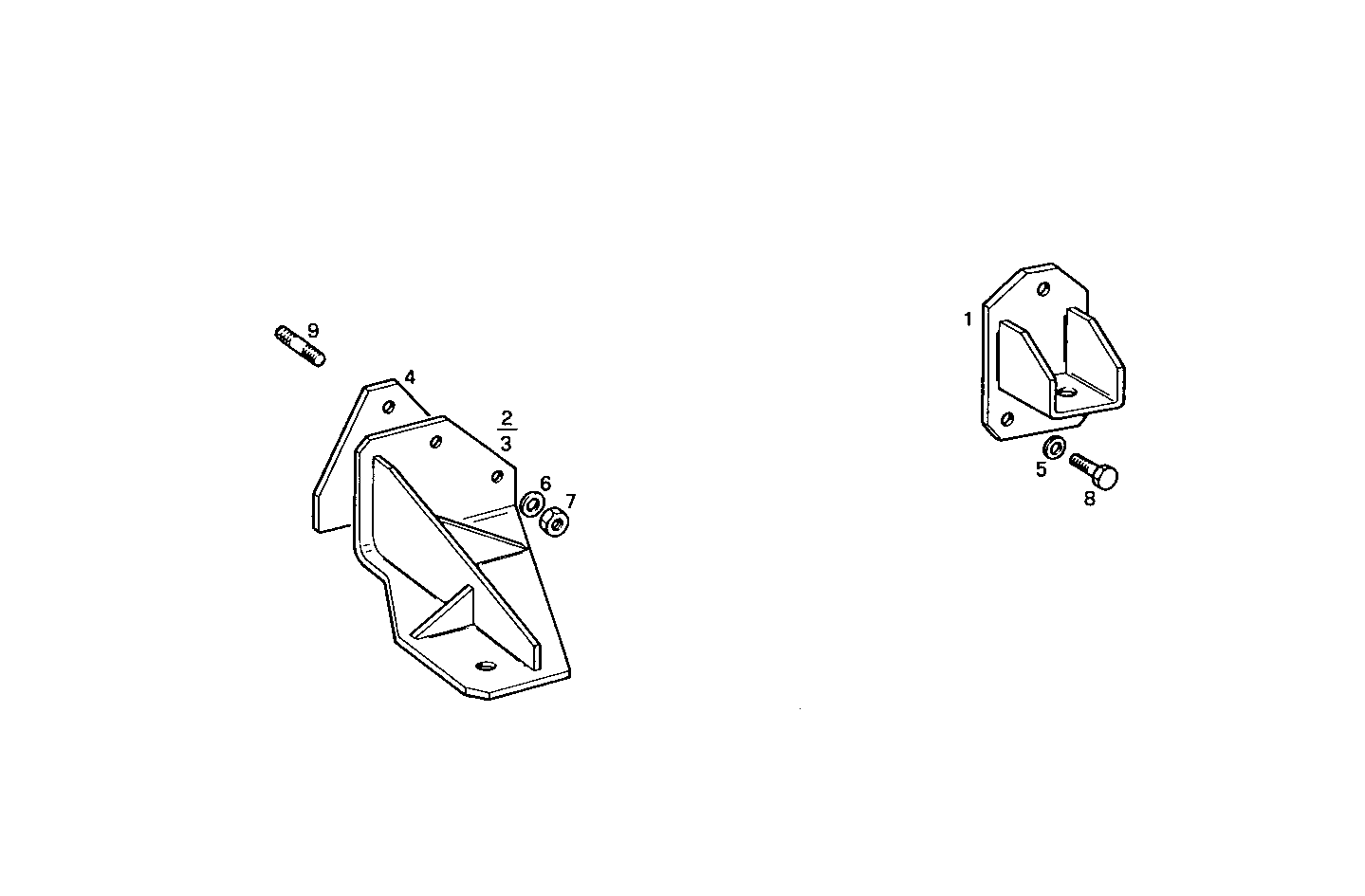

A04000005 RIGID MOUNTING - without PLESSEY hydraulic pump
| Item | Part number | Description |
|---|---|---|
| 1 | 4928444 | ENGINE SUSPENSION REAR |
| 2 | 4919786 | ENGINE SUSPENSION RIGHT |
| 3 | 4919787 | ENGINE SUSPENSION LEFT |
| 4 | 4919820 | SPACING BAR |
| 5 | 17090174 | SPRING WASHER Ø10X20 MM |
| 6 | 17091074 | WASHER Ø12X24X2,8 MM |
| 7 | 17038421 | HEXAGON NUT M12 (8) |
| 8 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
| 9 | 16733224 | STUD M12X1,75X30 |
