8045M08.00

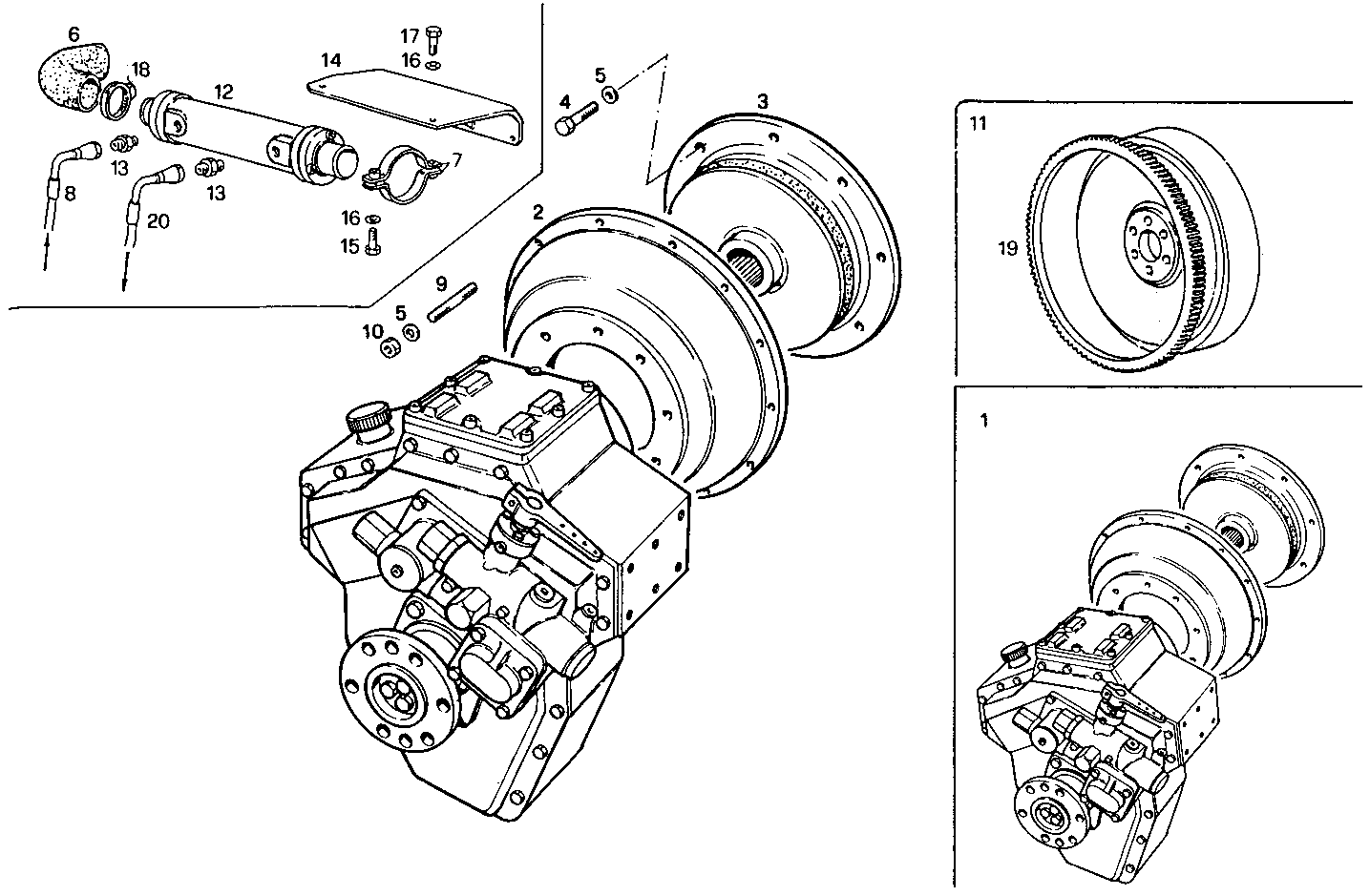

A51730004/01 MARINE GEAR TECHNODRIVE TM 200 B - ratio 4.48:1

Iveco/FPT MARINE GEAR TECHNODRIVE TM 200 B

Item Part number Description
1 8022066 MARINE GEAR 4,48:1
2 8012798 COUPLING BELL
3 8012802 FLEXIBLE COUPLING
4 15004021 HEXAGON BOLT M10X1,25X25 MM
5 17090174 SPRING WASHER Ø10X20 MM
6 8102099 RUBBER SLEEVE
7 5116798 CLIP ASSY [from 06-93]
8 4935779 HOSE
9 13449521 STUD M10X15X25
10 17038221 HEXAGON NUT M10
11 4818113 FLYWHEEL ASSY
12 8016304 OIL/WATER HEAT EXCHANGER ASSY
13 8101073 PIPE SOCKET
14 8016558 RETAINER [from 07-93]
15 16605624 HEXAGON BOLT M8X25 MM (8.8)
16 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
17 16605734 HEXAGON BOLT M8X30 MM
18 17764793 CLIP Ø32/50 MM
19 4862411 RING GEAR
20 4936603 OIL HOSE
