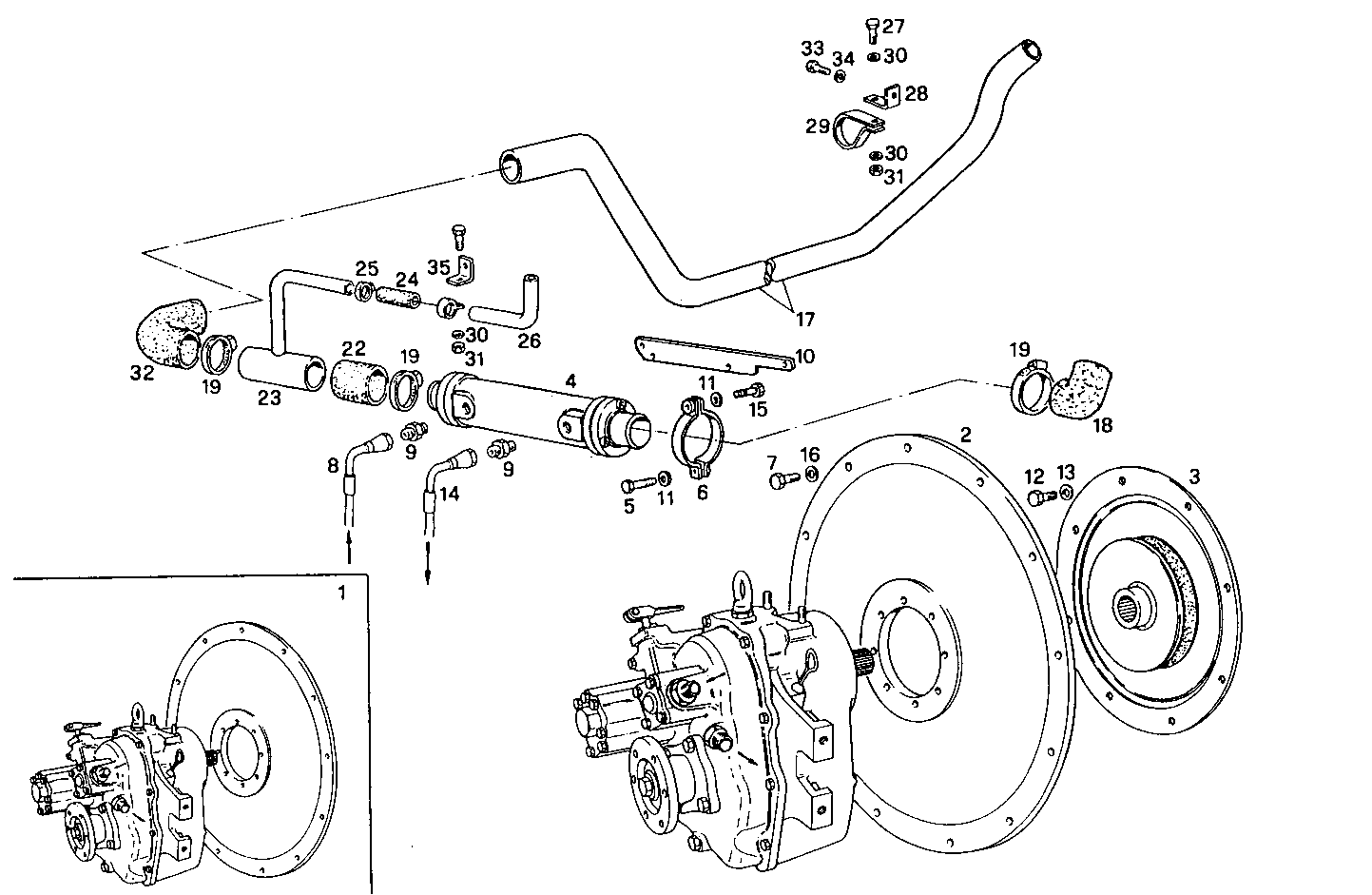

| Item |
Part number |
Description |
|
1 |
8015894 |
MARINE GEAR 2,40:1 |
|
2 |
8012407 |
COUPLING BELL |
|
3 |
8005350 |
FLEXPLATE |
|
4 |
8016304 |
OIL/WATER HEAT EXCHANGER ASSY |
|
5 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
6 |
5116798 |
CLIP ASSY [from 06-93] |
|
7 |
11306921 |
SCREW M10X1,25X30 |
|
8 |
4935779 |
HOSE |
|
9 |
4935465 |
PIPE SOCKET |
|
10 |
8016558 |
RETAINER [from 07-93] |
|
11 |
17089474 |
SPRING WASHER �8X16 MM SP=1,4 MM |
|
12 |
15970521 |
HEXAGON BOLT M10X20 MM |
|
13 |
10571879 |
WASHER |
|
14 |
8105620 |
HOSE |
|
15 |
16605734 |
HEXAGON BOLT M8X30 MM |
|
16 |
17090174 |
SPRING WASHER �10X20 MM |
|
17 |
8006087 |
WATER PIPE |
|
18 |
8016576 |
RUBBER SLEEVE |
|
19 |
17764793 |
CLIP �32/50 MM |
|
20 |
4936277 |
CLIP [up to 03-97] |
|
21 |
16605424 |
SCREW M8X16 MM (8.8) |
|
22 |
17742887 |
RUBBER SLEEVE |
|
23 |
8107188 |
WATER PIPE |
|
24 |
17737587 |
RUBBER SLEEVE |
|
25 |
17764593 |
CLIP �20/32 MM |
|
26 |
8107189 |
WATER PIPE |
|
28 |
8110499 |
RETAINER |
|
29 |
4936741 |
CLIP |
|
30 |
17089774 |
SPRING WASHER �8,4X22 MM SP=2,4 MM |
|
31 |
17037931 |
HEXAGON NUT M8X1,25 |
|
32 |
17742687 |
RUBBER SLEEVE |
|
33 |
16608927 |
SCREW M12X25 |
|
34 |
17091074 |
WASHER �12X24X2,8 MM |
|
35 |
8109067 |
RETAINER |
