8045SE00.00A800

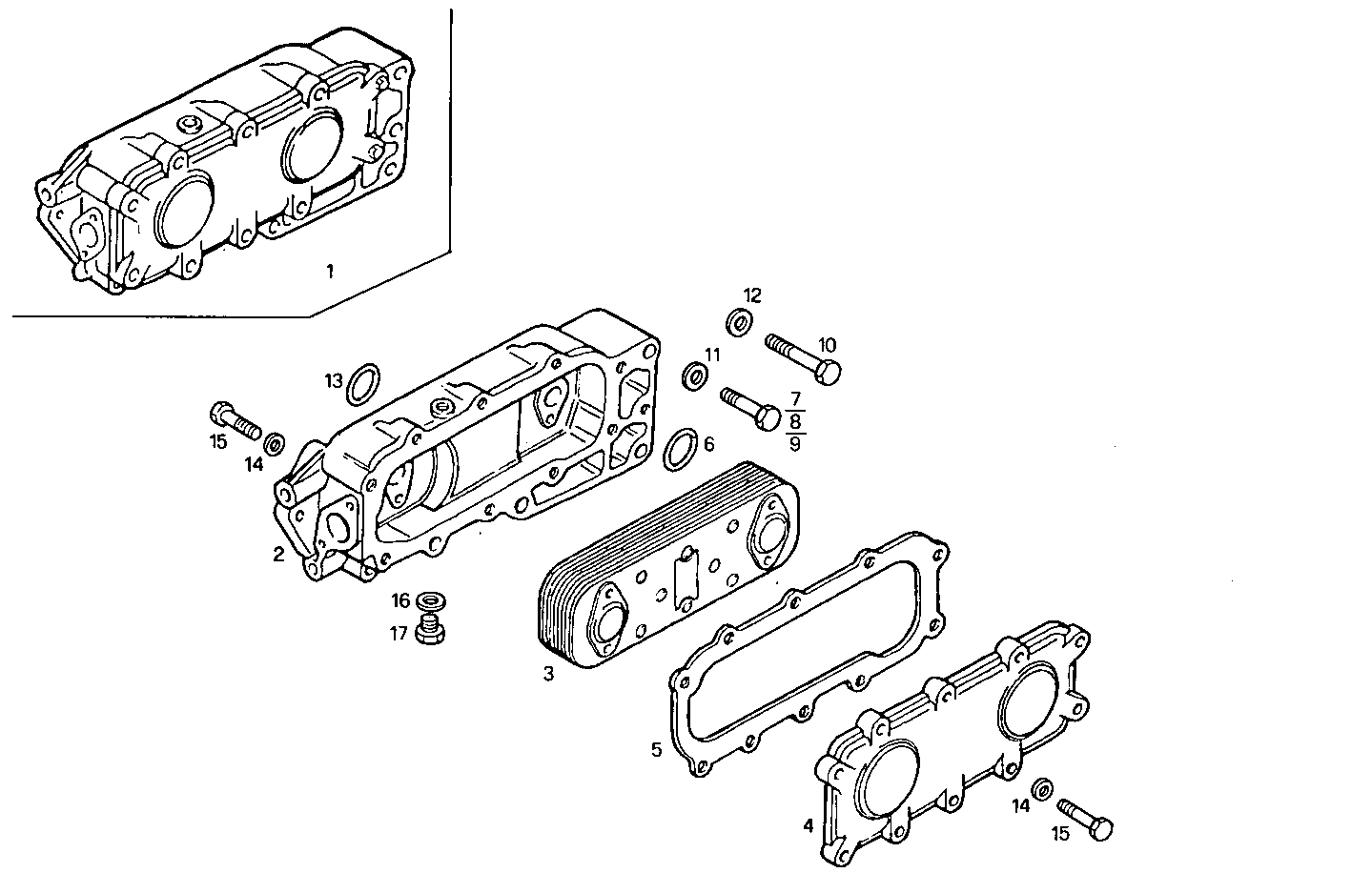

3100.069 OIL - WATER HEAT EXCHANGER

Iveco/FPT OIL - WATER HEAT EXCHANGER

Item Part number Description
1 98438017 HEAT EXCHANGER ASSY
2 98437493 HEAT EXANGER BODY
3 98432859 OIL COOLER
4 98431219 COVER
5 98418538 GASKET
6 14458281 O-RING Ø2,62X31,42 MM
7 16605734 HEXAGON BOLT M8X30 MM
8 16611324 HEXAGON BOLT M12X130 MM
9 16611024 HEXAGON BOLT M12X1,75X100 MM
10 11306921 SCREW M10X1,25X30
11 17095304 WASHER Ø12X24 MM
12 17095014 WASHER Ø10X18 MM
13 14457481 O-RING Ø18,72 MM SP=2,62 MM
14 10519601 WASHER Ø8X17 MM
15 14358221 SCREW
16 10263160 SEAL GASKET Ø18X24 MM SP=1 MM
17 10273111 LOCK PLUG M18X1,5
