8045SE00.09A002

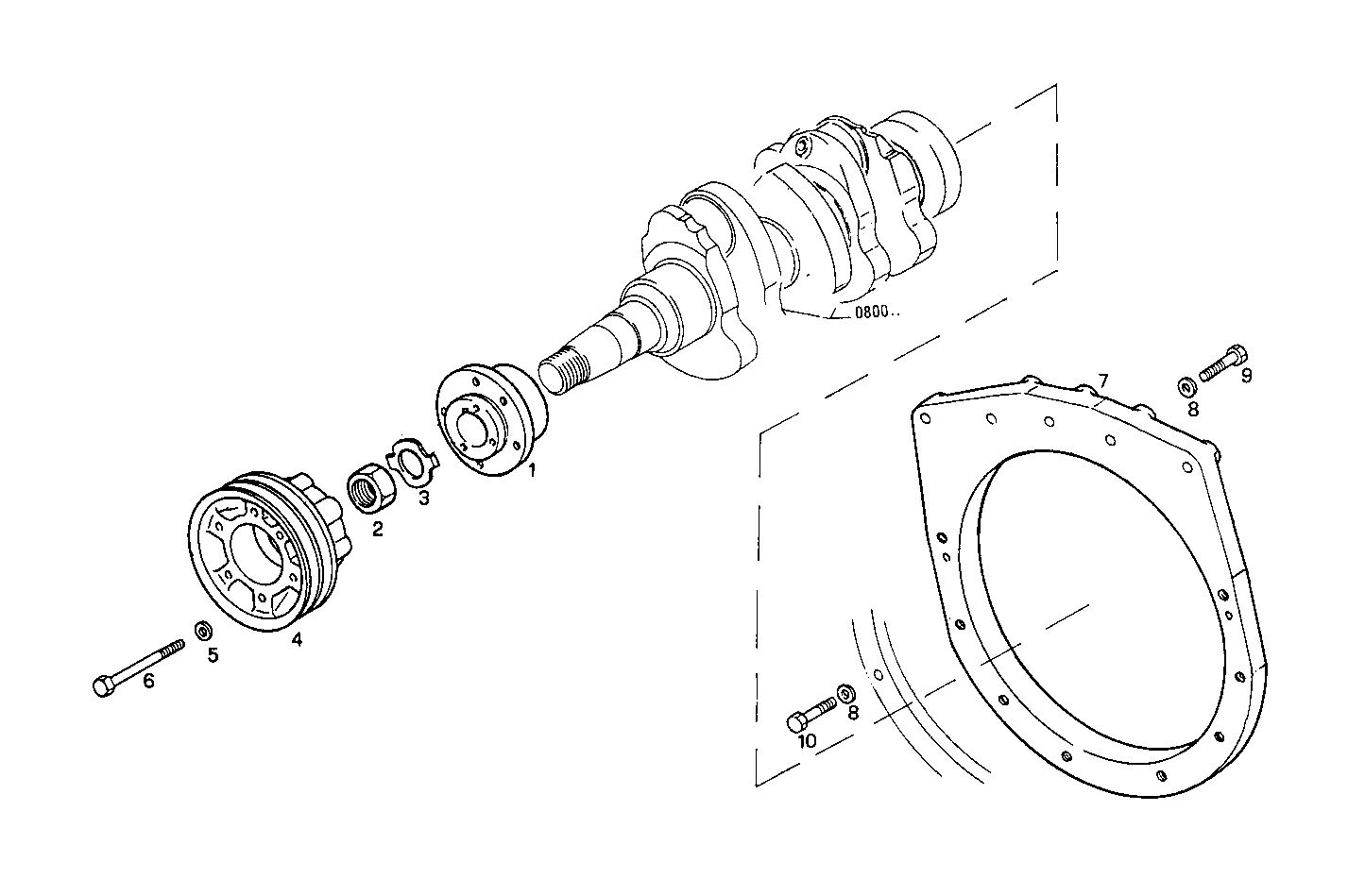

0830.194 ENGINE FLYWHEEL - DAMPER
| Item | Part number | Description |
|---|---|---|
| 1 | 4655847 | HUB |
| 2 | 4600189 | NUT |
| 3 | 4600190 | LOCKING PLATE |
| 4 | 99481435 | PULLEY |
| 5 | 17090174 | SPRING WASHER Ø10X20 MM |
| 6 | 98402354 | HEXAGON BOLT M10X1,25 |
| 7 | 8030375 | SPACING BAR |
| 8 | 17091074 | WASHER Ø12X24X2,8 MM |
| 9 | 15501021 | SCREW |
| 10 | 16610124 | HEXAGON BOLT M12X40 MM |
