8045SE00.09A002

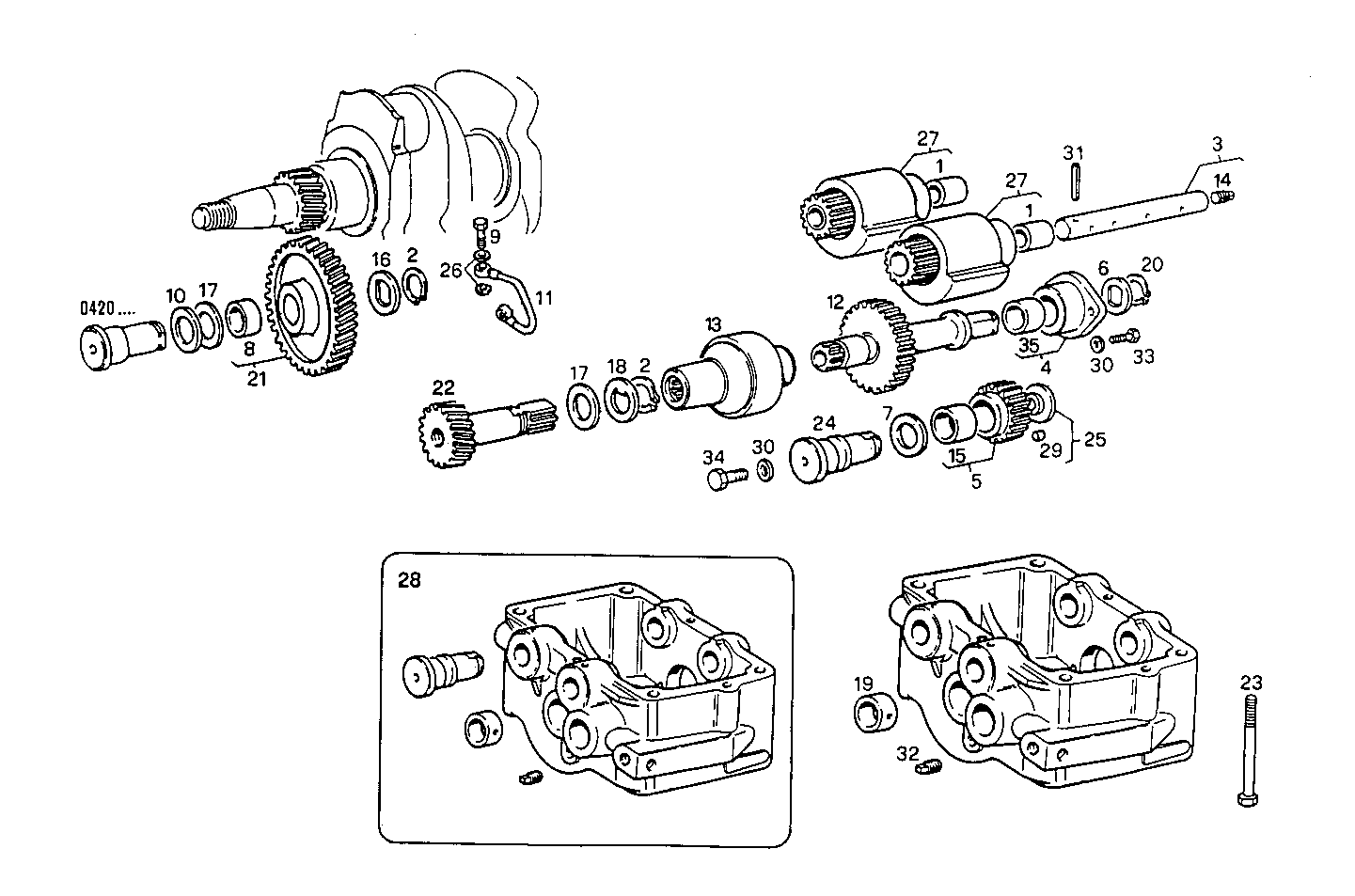

1050.005 ADDITIONAL MASSES

Iveco/FPT ADDITIONAL MASSES

Item Part number Description
1 583514 BUSH
2 4600329 CIRCLIP
3 4600367 PIN ASSY
4 4600375 SUPPORT ASSY
5 4600376 GEAR ASSY
6 98415099 WASHER [from ...]
7 4600381 WASHER
8 4812465 CENTERING BUSH
9 11903814 SCREW CONNECTOR M10X1,25X19 MM
10 4600386 WASHER
11 4812938 OIL LINE
12 98415090 GEAR [from ...]
13 98415087 SHAFT [from ...]
14 14323911 LOCK PLUG M10X1,25
15 4628982 BUSH
16 4667450 WASHER
17 4834331 SPAC.RING CYL.LIN.
18 4668200 WASHER
19 4599807 BUSH
20 4707674 CIRCLIP
21 4812932 GEAR ASSY
22 98418381 GEAR [from ...]
23 4778867 SCREW
24 4788666 PIN
25 4789294 WASHER ASSY
26 10260160 SEAL GASKET Ø10X14 MM SP=1 MM
27 99441704 CENTRIFUGAL MASS ASSY
28 98415171 SUPPORT ASSY [from ...]
29 10329910 PARALLEL PIN Ø3 MM
30 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
31 14171170 PLUG
32 99434231 THREADED PLUG M10X1,25
33 16605524 HEXAGON BOLT M8X20 MM
34 16044521 HEXAGON BOLT M8X65 MM
35 4692384 BUSH
