8045SE00.09A002

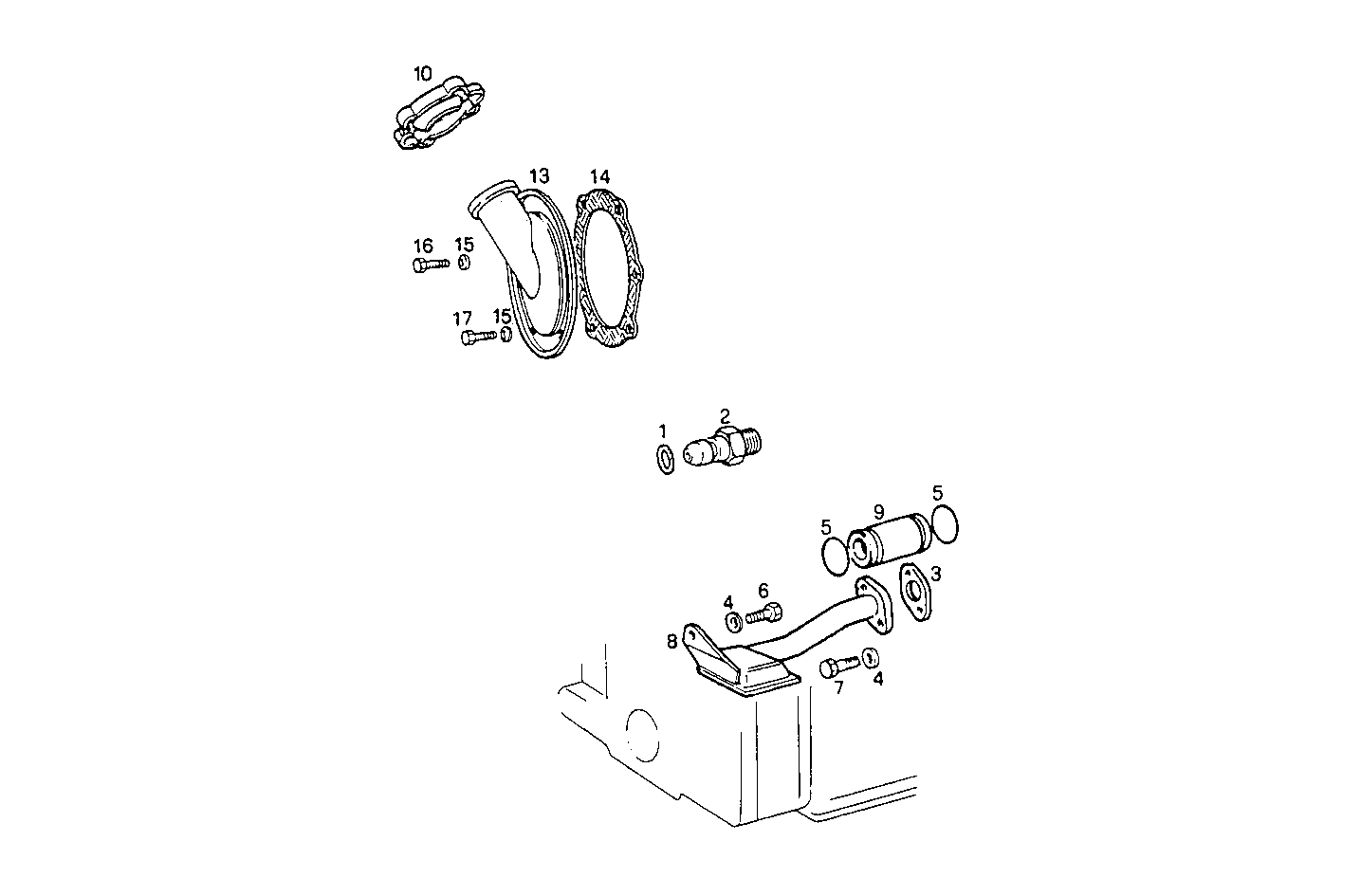

3010.175 LUBE OIL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 561293 | O-RING |
| 2 | 4785501 | SCREW CONNECTOR M10X1,25 |
| 3 | 4852561 | FLAT ENGINE GASKET |
| 4 | 17089471 | SPRING WASHER Ø16X8 MM SP=1,4 MM |
| 5 | 17288681 | O-RING Ø24,9 MM SP=3,5 MM |
| 6 | 16605424 | SCREW M8X16 MM (8.8) |
| 7 | 16043524 | SCREW M8X22 MM |
| 8 | 99439689 | OIL SUCTION PIPE |
| 9 | 98415136 | DELIVERY LINE |
| 10 | 4232606 | OIL FILLER PLUG ASSY |
| 13 | 4783048 | COVER |
| 14 | 98400781 | FLAT ENGINE GASKET |
| 15 | 17094914 | WASHER 8x16 |
| 16 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 17 | 16606324 | HEXAGON BOLT M8X60 MM |
