8045SE00.09A002

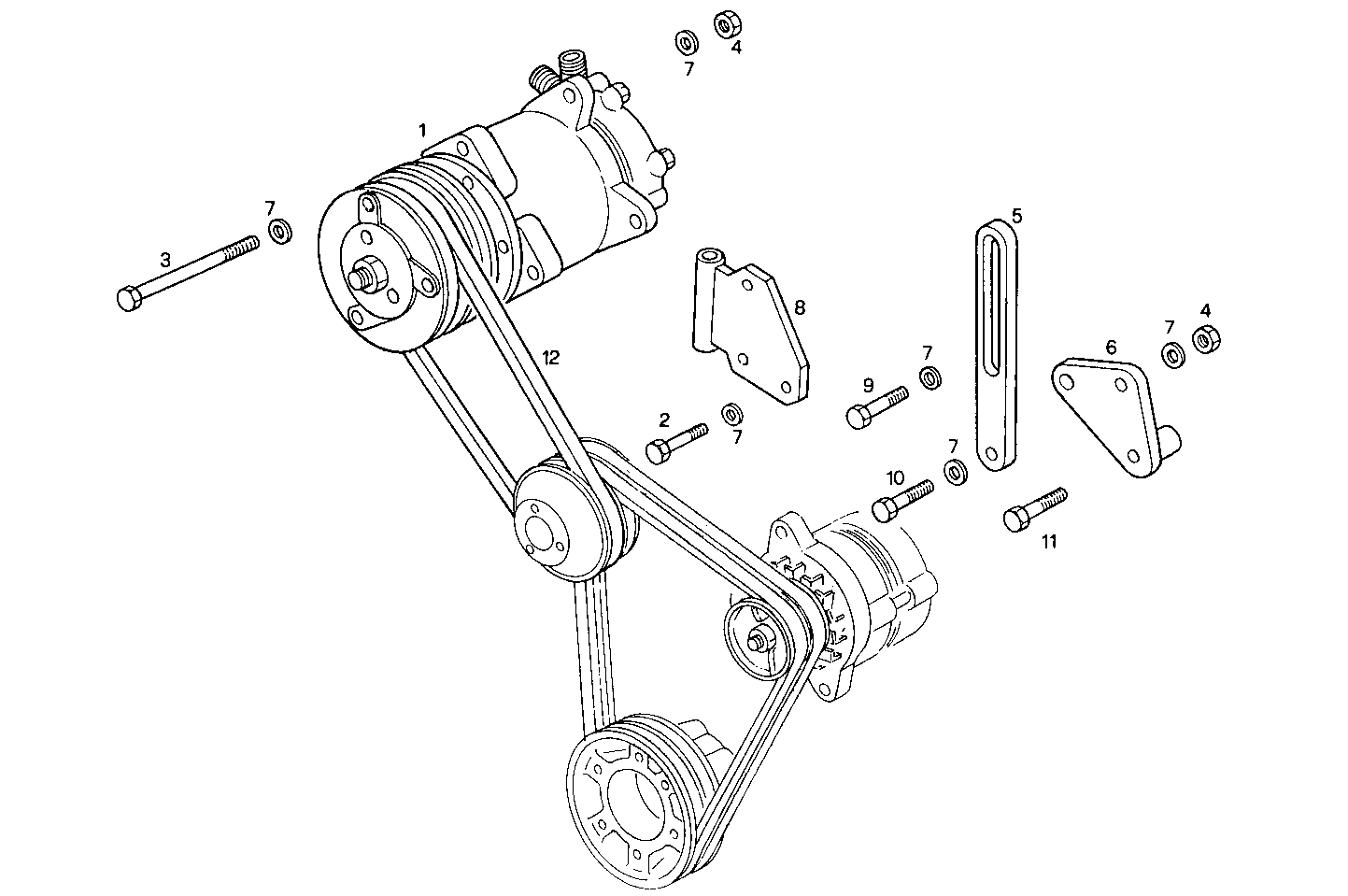

3900.005 COMPRESSOR AIR CONDITIONING
| Item | Part number | Description |
|---|---|---|
| 1 | 5176185 | AIR COMPRESSOR |
| 2 | 15970621 | SCREW M10X1,25X22 |
| 3 | 16608924 | HEXAGON BOLT M10X110 MM |
| 4 | 17038121 | HEXAGON NUT M10 |
| 5 | 5177011 | RETAINER |
| 6 | 5177005 | RETAINER |
| 7 | 17090174 | SPRING WASHER Ø10X20 MM |
| 8 | 5177002 | SUPPORT |
| 9 | 15970921 | HEXAGON BOLT M10X1,25X35 MM |
| 10 | 16607824 | HEXAGON BOLT M10X35 MM (8.8) |
| 11 | 16606624 | HEXAGON BOLT M8X80 MM |
| 12 | 99436608 | V-BELT |
