8045SE00.50

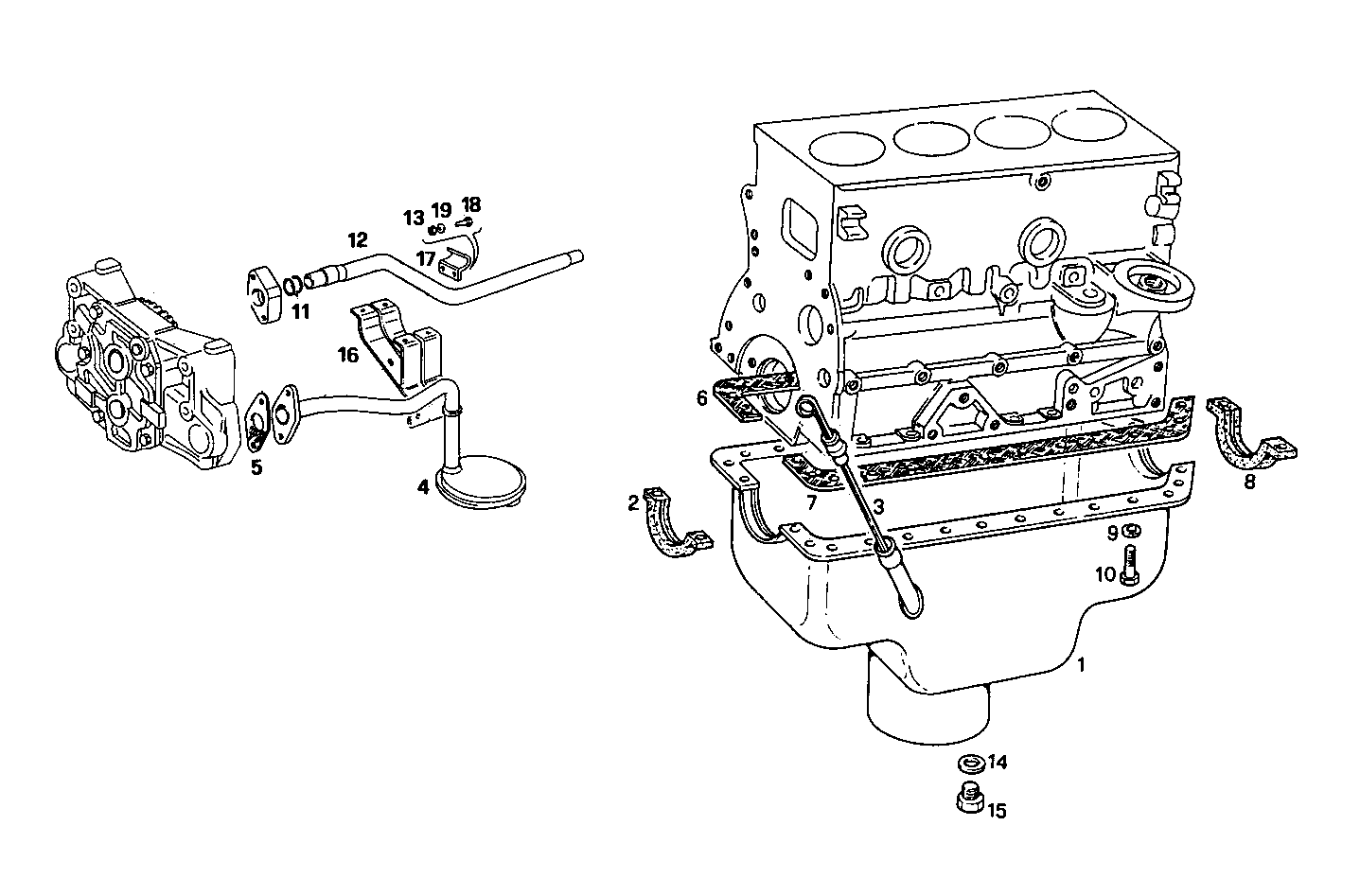

A01050023/01 OIL SUMP - max longitudinal inclination 45°
| Item | Part number | Description |
|---|---|---|
| 1 | 8110600 | OIL SUMP |
| 2 | 4031577 | OIL SUMP GASKET FRONT |
| 3 | 8110539 | OIL DIPSTICK |
| 4 | 8109506 | OIL LINE |
| 5 | 4852561 | FLAT ENGINE GASKET |
| 6 | 8014526 | OIL SUMP GASKET RIGHT |
| 7 | 8016136 | OIL SUMP GASKET LEFT |
| 8 | 4600753 | OIL SUMP GASKET REAR |
| 9 | 12638601 | WASHER Ø10X18 MM |
| 10 | 10923221 | HEXAGON BOLT M10X25 MM |
| 11 | 14457681 | O-RING Ø21,89 MM SP=2,62 MM |
| 12 | 4807944 | OIL LINE |
| 13 | 14048217 | HEXAGON NUT M8 |
| 14 | 10263460 | WASHER Ø22X28X1,5 MM |
| 15 | 10305111 | LOCK PLUG M22 |
| 16 | 8109507 | SUPPORT |
| 17 | 8109508 | RETAINER |
| 18 | 16043221 | HEXAGON BOLT M8X16 MM |
| 19 | 10519601 | WASHER Ø8X17 MM |
