8045SRE10.00

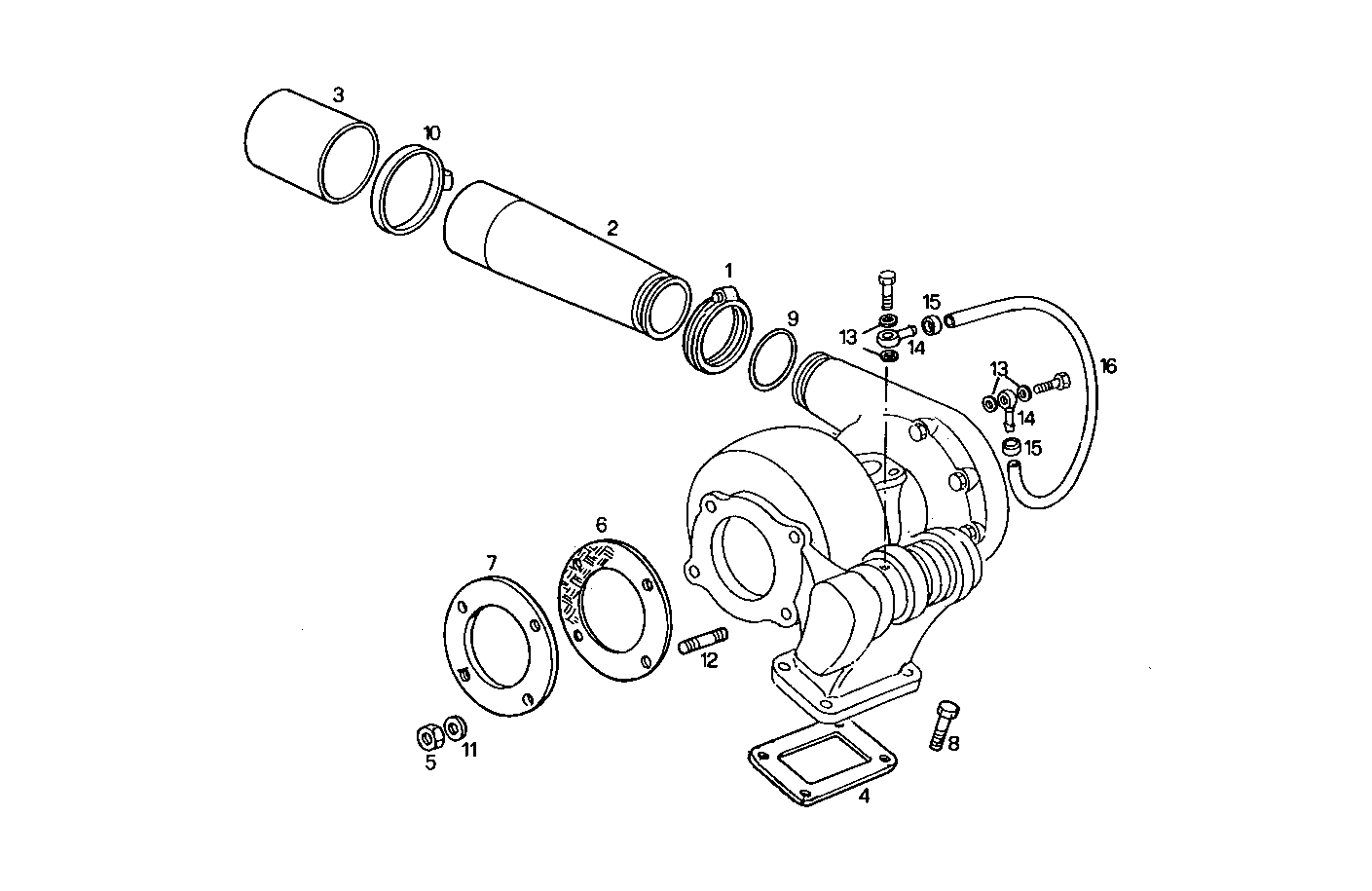

2420.139 SUPERCHARGING LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 4843862 | CLIP Ø50/70 MM |
| 2 | 8026419 | AIR MANIFOLD |
| 3 | 99443275 | CONNECTOR SLEEVE |
| 4 | 98428396 | FLAT ENGINE GASKET |
| 5 | 17038221 | HEXAGON NUT M10 |
| 6 | 8009732 | GASKET |
| 7 | 8101993 | FLANGE |
| 8 | 98491312 | HEXAGON BOLT |
| 9 | 17283481 | O-RING Ø42,5 MM SP=2,6 MM |
| 10 | 17765092 | CLIP Ø60-80 MM |
| 11 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 12 | 16729424 | STUD M8X1,25X25 |
| 13 | 4858605 | WASHER Ø8X12 MM |
| 14 | 4647661 | SWIVEL COUPLING |
| 15 | 18088291 | CLIP Ø12/20 MM |
| 16 | 17724487 | RUBBER HOSE Ø6X13 MM |
