8045SRE10.00

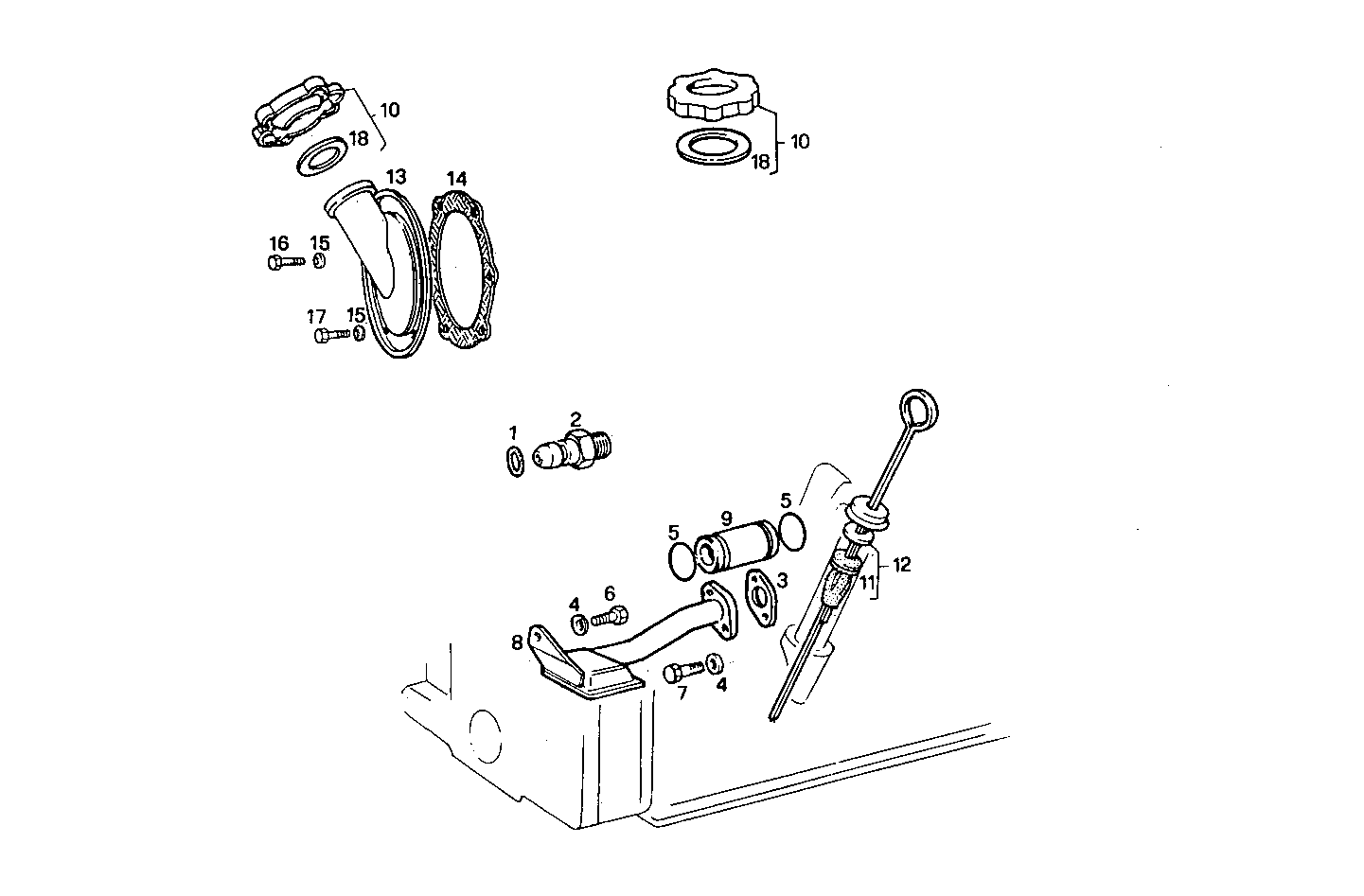

3010.060 LUBE OIL LINES

Iveco/FPT LUBE OIL LINES

Item Part number Description
1 561293 O-RING
2 4785501 SCREW CONNECTOR M10X1,25
3 4852561 FLAT ENGINE GASKET
4 17089471 SPRING WASHER Ø16X8 MM SP=1,4 MM
5 17288681 O-RING Ø24,9 MM SP=3,5 MM
6 16605424 SCREW M8X16 MM (8.8)
7 16043524 SCREW M8X22 MM
8 98415121 SUCTION STRAINER
9 98415136 DELIVERY LINE
10 4232606 OIL FILLER PLUG ASSY
11 4624702 GASKET
12 4607956 OIL DIPSTICK ASSY
13 4782886 COVER
14 98400781 FLAT ENGINE GASKET
15 17094914 WASHER 8x16
16 16605624 HEXAGON BOLT M8X25 MM (8.8)
17 16606324 HEXAGON BOLT M8X60 MM
