8045SRE10.00

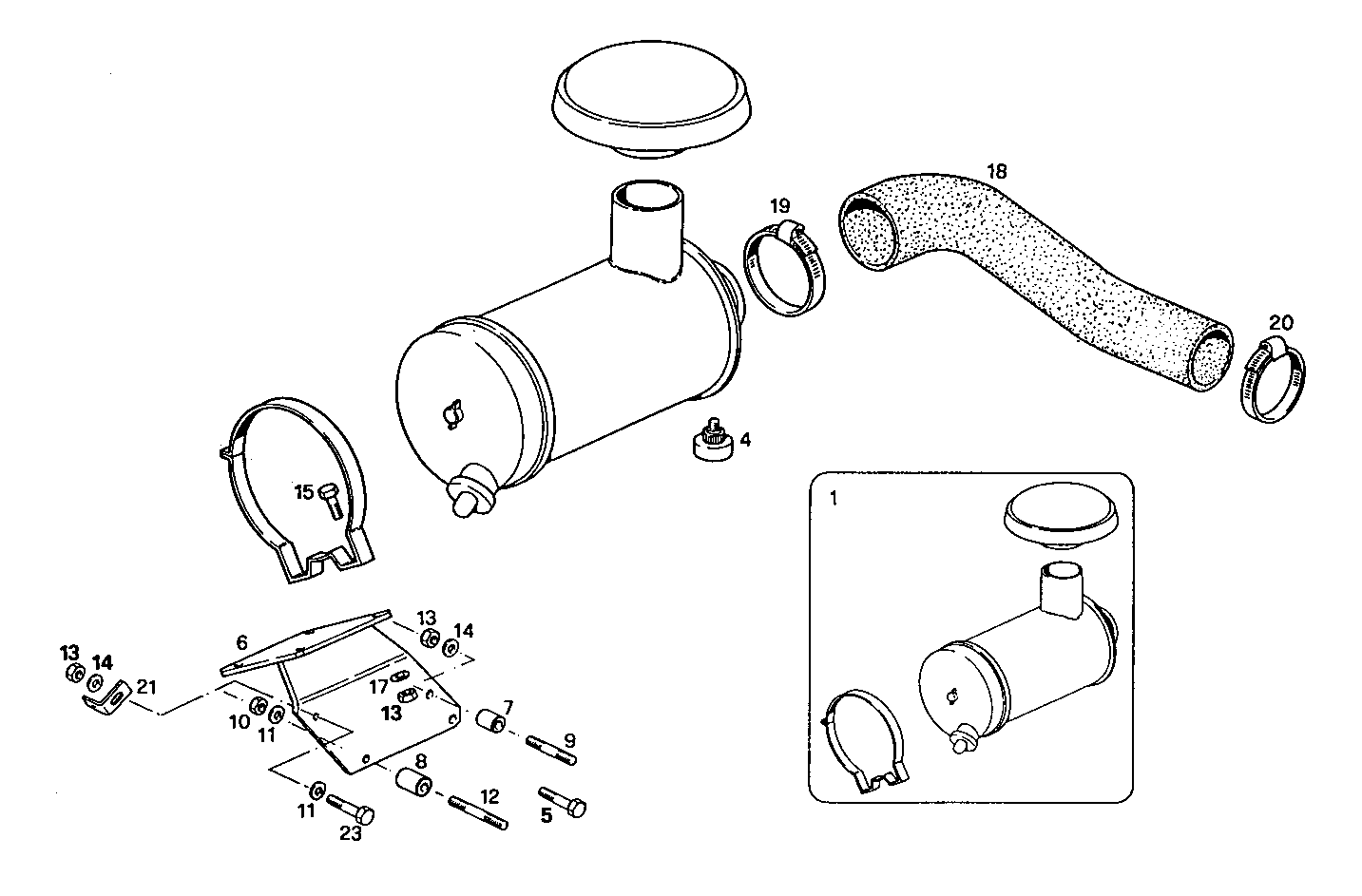

A21210072 DRY AIR CLEANER - with mechanical clogging gauge

Iveco/FPT DRY AIR CLEANER

Item Part number Description
1 8015446 AIR CLEANER ASSY
4 8027294 CHOCKED FILTER INDIC. MECHANICAL
5 16605824 HEXAGON BOLT M8X35 MM
6 8014635 SUPPORT
7 8028056 SPACING BAR
8 8019966 SPACING BAR
9 16730124 STUD M8X60 MM
10 17038121 HEXAGON NUT M10
11 17090474 SPRING WASHER Ø10X27 MM SP=2,5
12 16732124 STUD
13 17037931 HEXAGON NUT M8X1,25
14 17089774 SPRING WASHER Ø8,4X22 MM SP=2,4 MM
15 16605524 HEXAGON BOLT M8X20 MM
17 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
18 8028031 RUBBER SLEEVE
19 17765391 CLIP Ø90/110 MM
20 17765091 CLIP Ø60/80 MM
21 8028062 RETAINER
23 16605624 HEXAGON BOLT M8X25 MM (8.8)
