8045SRE10.50

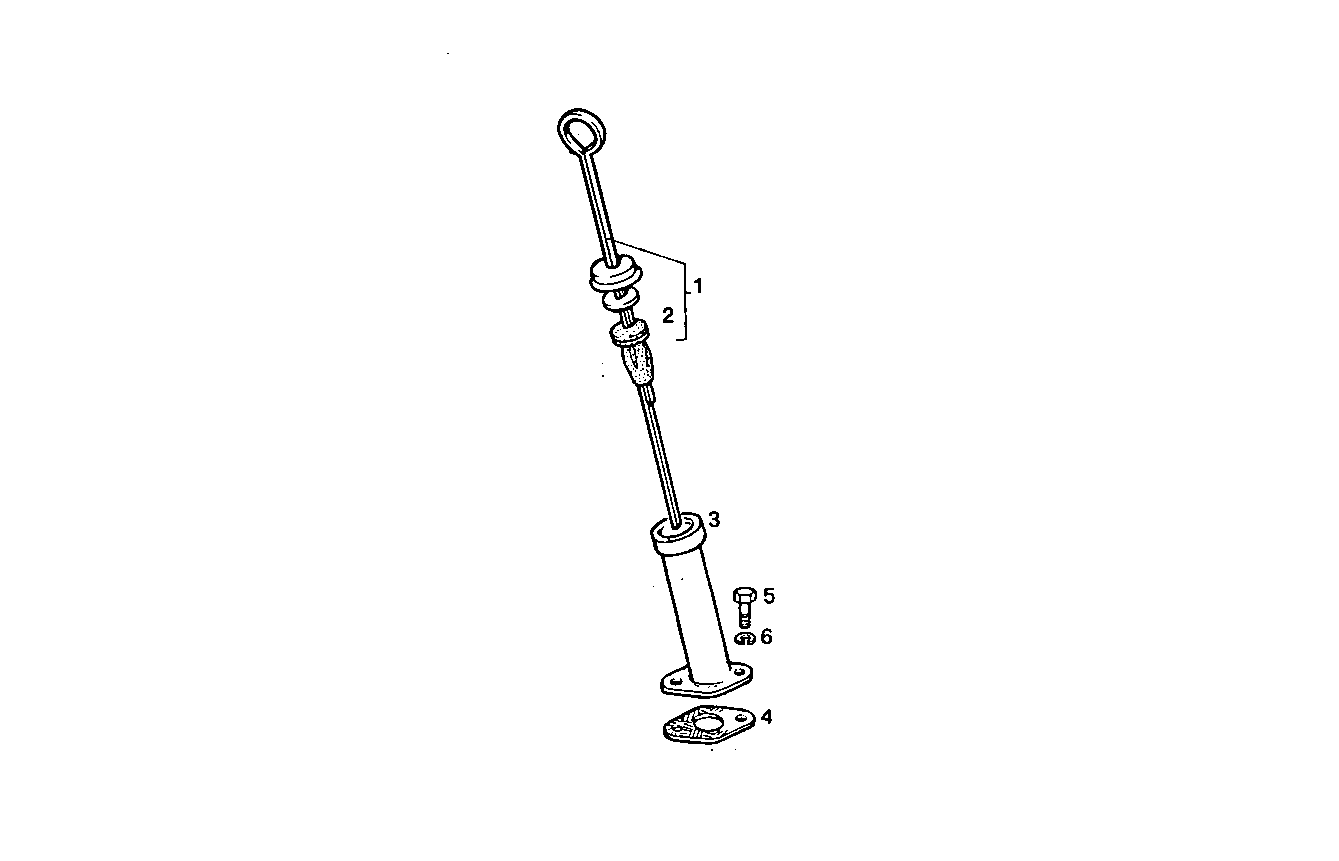

2710.004 OIL DIPSTICK
| Item | Part number | Description |
|---|---|---|
| 1 | 4828242 | OIL DIPSTICK ASSY |
| 2 | 4624702 | GASKET |
| 3 | 4828240 | OIL LINE |
| 4 | 98401047 | GASKET |
| 5 | 16605524 | HEXAGON BOLT M8X20 MM |
| 6 | 17089574 | WASHER Ø8X16 MM |
