8045SRE10.50

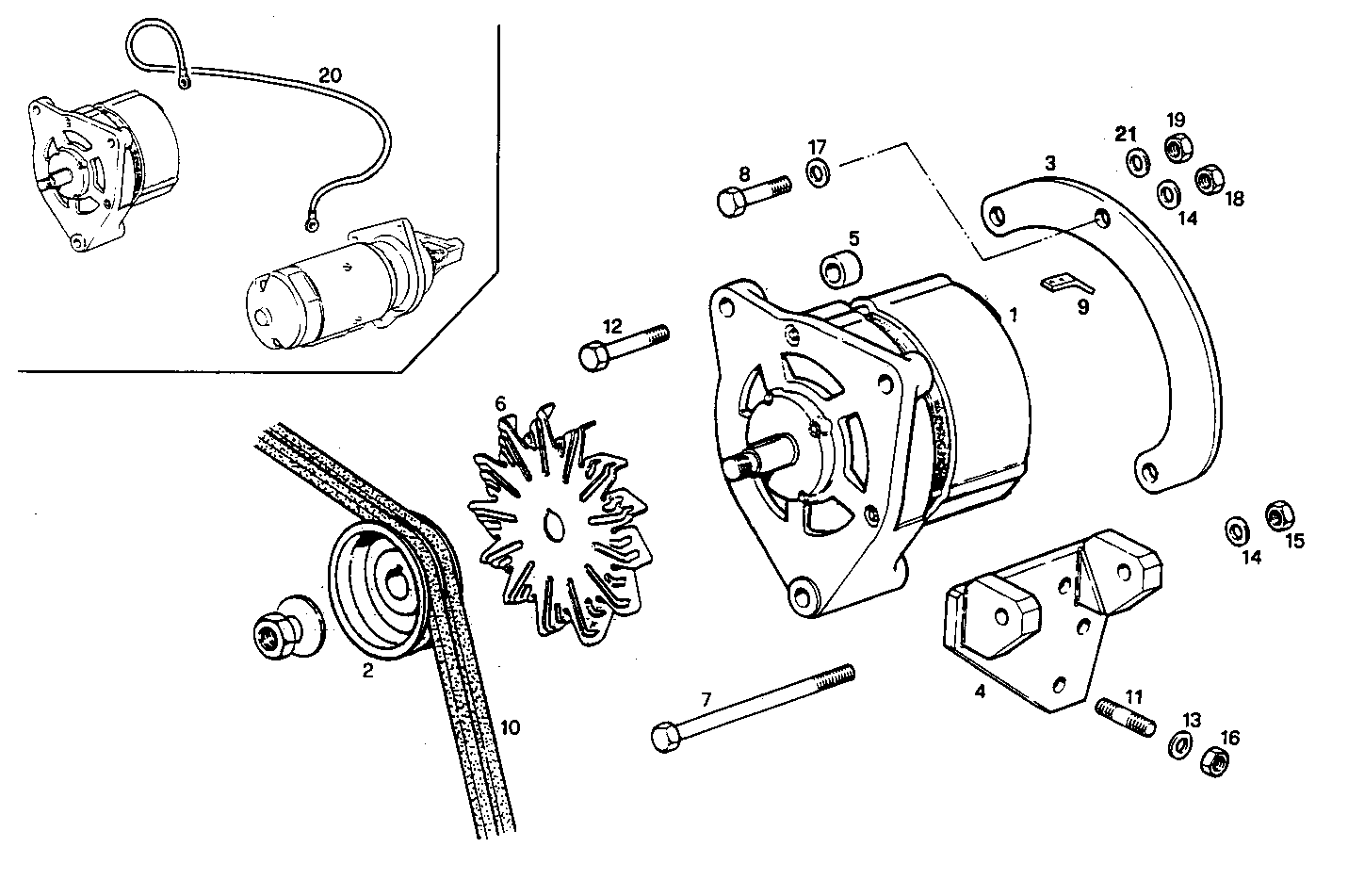

A14010003 SELF-REGULATED ALTERNATOR - 24V 80A (W)
| Item | Part number | Description |
|---|---|---|
| 1 | 8007700 | ALTERNATOR ASSY |
| 2 | 4808607 | PULLEY |
| 3 | 8007693 | RETAINER |
| 4 | 8007681 | SUPPORT |
| 5 | 759850 | WASHER �10X21X2 MM |
| 6 | 4717026 | GENERATOR FAN MARELLI |
| 7 | 15972421 | HEXAGON BOLT M10X1,25X130 MM |
| 8 | 11306921 | SCREW M10X1,25X30 |
| 9 | 12277944 | CONNECTION D+ |
| 10 | 8008279 | SET OF V-BELTS KIT |
| 11 | 16746624 | STUD M8X20 MM (8.8) |
| 12 | 15540621 | HEXAGON BOLT M12X40 MM |
| 13 | 17089474 | SPRING WASHER �8X16 MM SP=1,4 MM |
| 14 | 17090174 | SPRING WASHER �10X20 MM |
| 15 | 17153021 | HEXAGON NUT M10X1,25 |
| 16 | 17037931 | HEXAGON NUT M8X1,25 |
| 17 | 4513436 | SUPPORT RING �10X21X2 MM |
| 18 | 17038221 | HEXAGON NUT M10 |
| 19 | 17038621 | NUT M12 |
| 20 | 8007703 | EARTH WIRE |
| 21 | 17091074 | WASHER �12X24X2,8 MM |
