8045SRE10.50

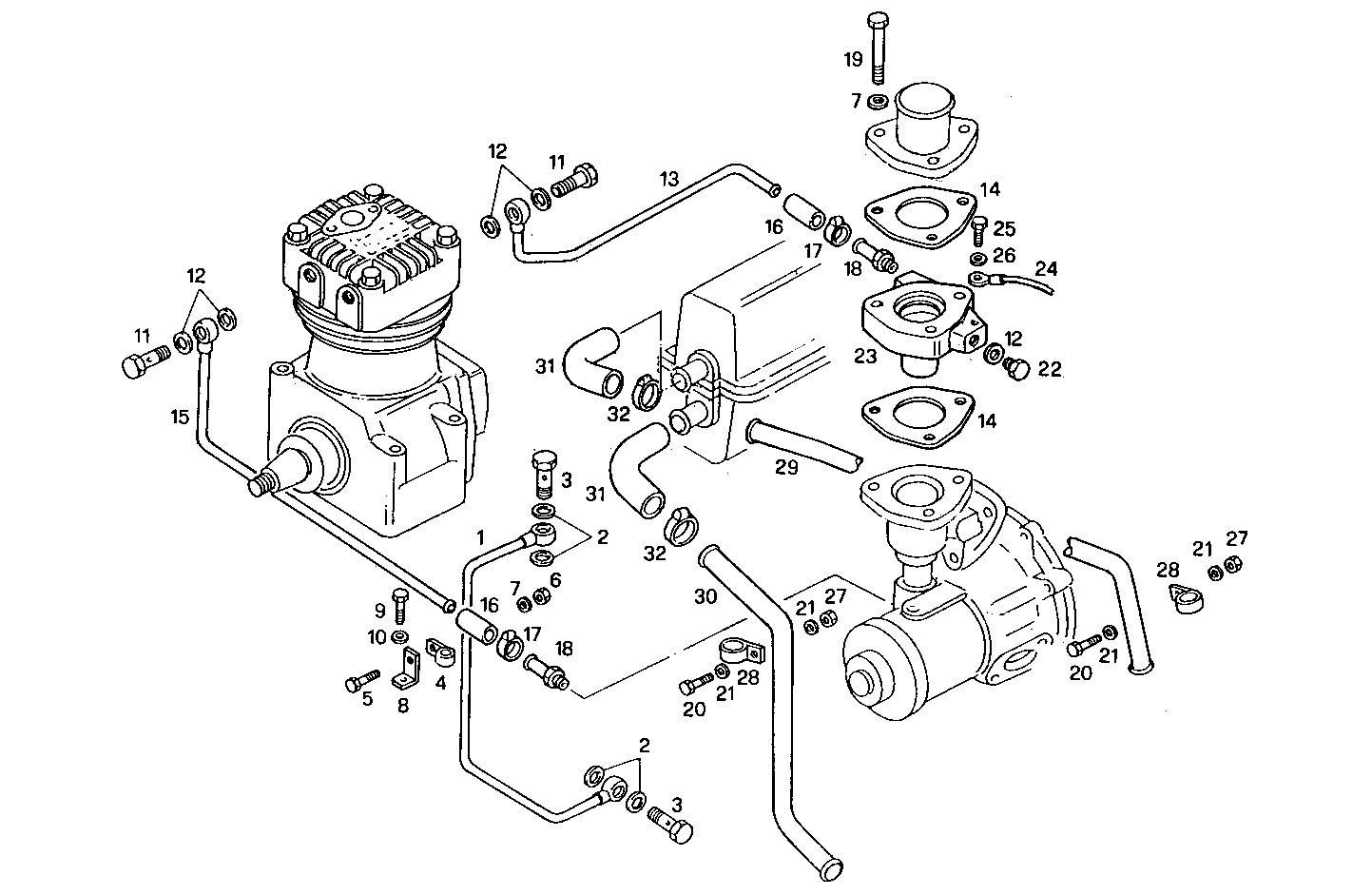

A18020023/01 AIR COMPRESSOR - 165cc
| Item | Part number | Description |
|---|---|---|
| 1 | 8010642 | OIL LINE |
| 2 | 4858606 | GASKET Ø10X14X1 MM |
| 3 | 4864080 | SCREW CONNECTOR M10X1,25 |
| 4 | 17316390 | CLIP |
| 5 | 16043321 | HEXAGON BOLT M8X18 MM |
| 6 | 17037931 | HEXAGON NUT M8X1,25 |
| 7 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 8 | 4933030 | RETAINER |
| 9 | 15970521 | HEXAGON BOLT M10X20 MM |
| 10 | 17090174 | SPRING WASHER Ø10X20 MM |
| 11 | 4864084 | BANJO BOLT M16X1,5 |
| 12 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 13 | 8030131 | WATER PIPE |
| 14 | 98482590 | GASKET |
| 15 | 8030132 | WATER PIPE |
| 16 | 98425477 | WATER HOSE |
| 17 | 17764592 | CLIP Ø20/32 MM |
| 18 | 4616630 | THREADED UNION |
| 19 | 16606124 | HEXAGON BOLT M8X50 MM |
| 20 | 16605524 | HEXAGON BOLT M8X20 MM |
| 22 | 16992411 | THREADED PLUG M16X1,5 |
| 23 | 8007765 | SPACING BAR |
| 24 | 8961599 | WIRE/CABLE |
| 25 | 16603424 | SCREW M6X10 |
| 26 | 17088474 | WASHER Ø6X12 MM |
| 28 | 8107409 | RETAINER |
| 29 | 8030133 | WATER PIPE |
| 30 | 8030134 | WATER PIPE |
| 31 | 17738187 | WATER HOSE |
| 32 | 17764591 | CLIP Ø20/32 MM |
