8045SRE10.50

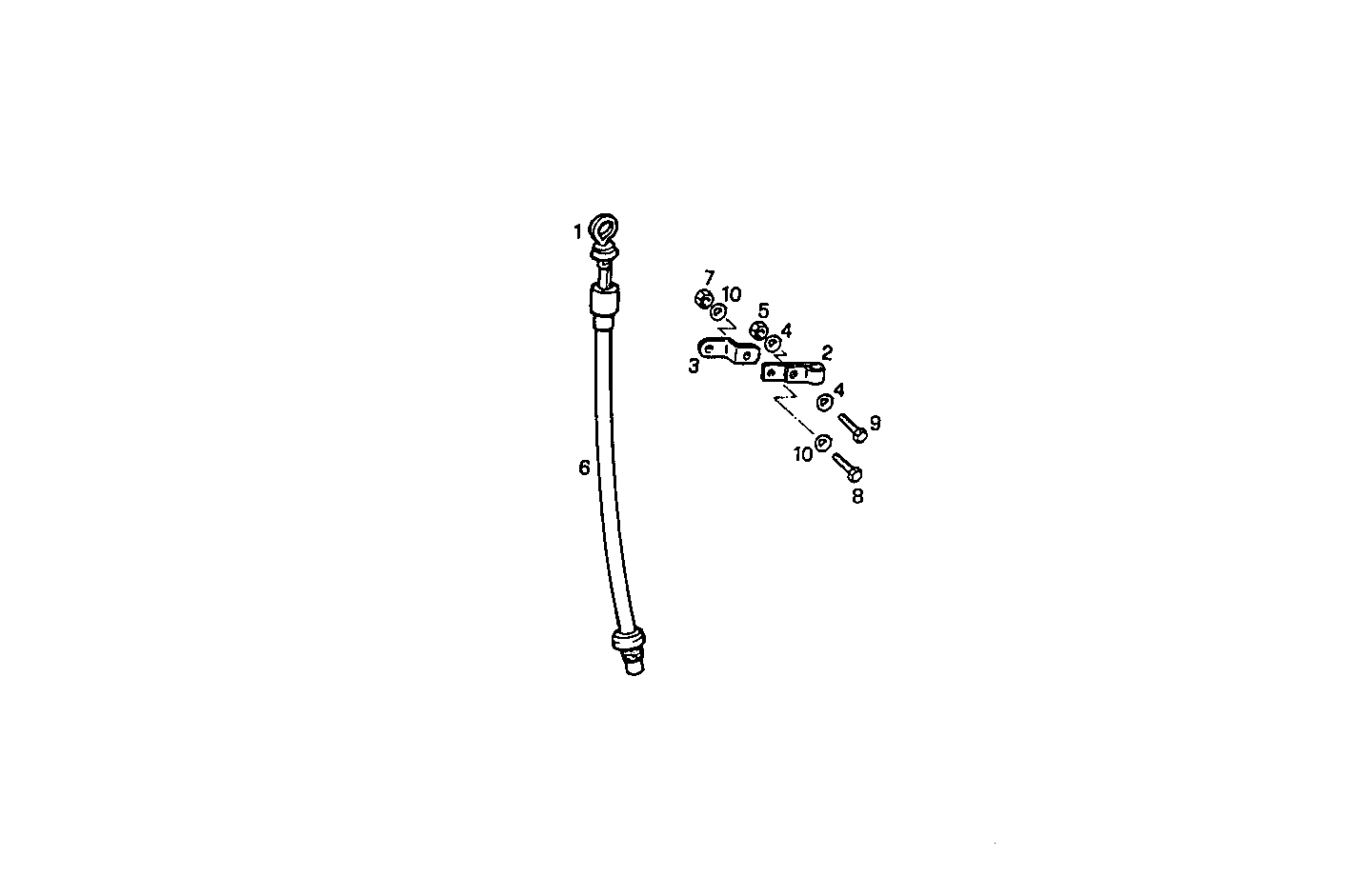

A41020010 LONG OIL DIPSTICK RIGHT SIDE
| Item | Part number | Description |
|---|---|---|
| 1 | 8009361 | OIL DIPSTICK |
| 2 | 8006649 | CLIP |
| 3 | 8114208 | RETAINER [up to 09-93] |
| 4 | 17088474 | WASHER Ø6X12 MM |
| 5 | 17037821 | HEXAGON NUT M6X1 |
| 6 | 8109240 | ROD GUIDE |
| 7 | 17038021 | HEXAGON NUT M8X1 |
| 8 | 16605524 | HEXAGON BOLT M8X20 MM |
| 9 | 16603524 | SCREW M6X12 MM (8.8) |
| 10 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
