8045SU00.50A001

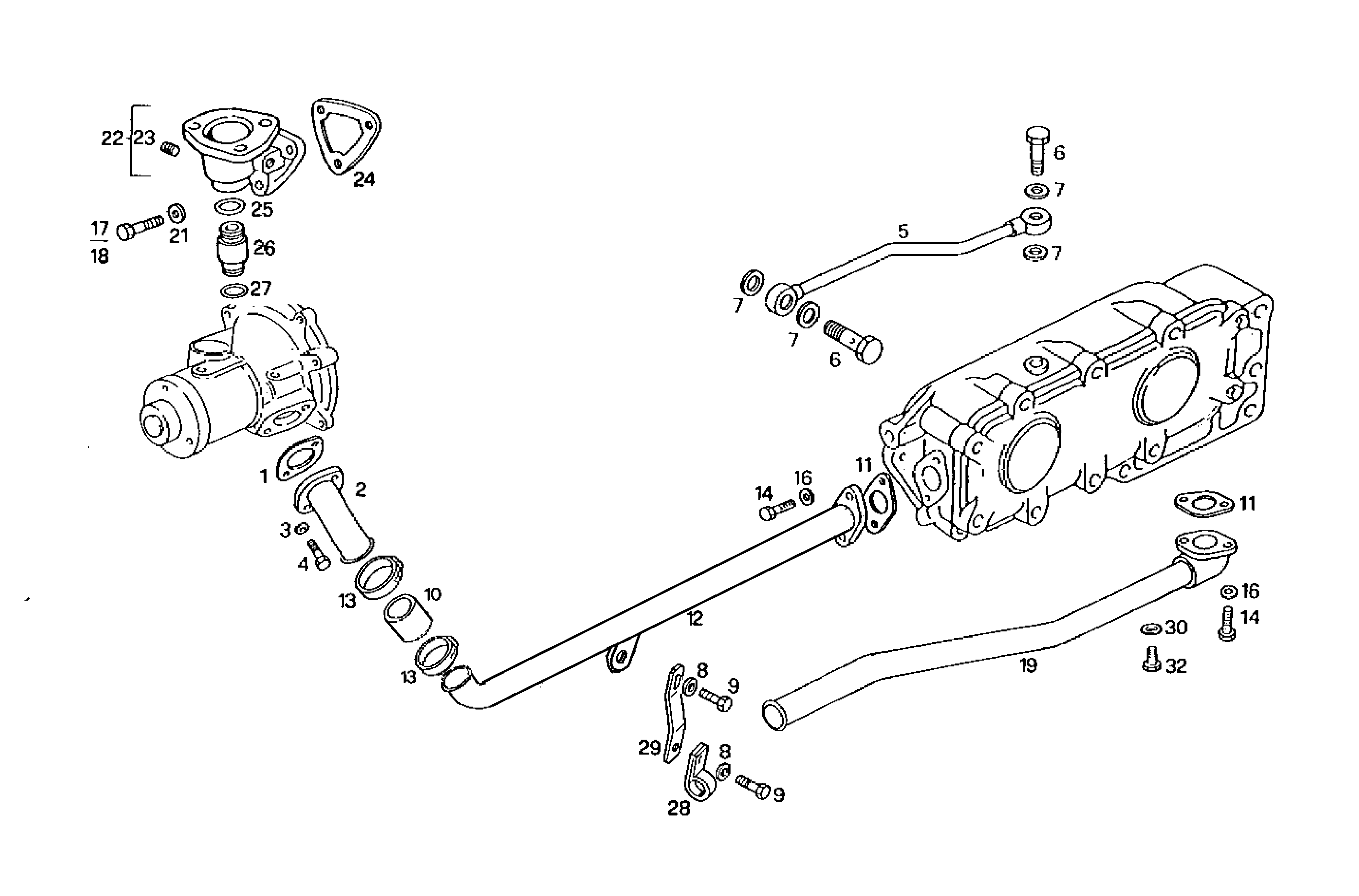

3210.159 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 4852556 FLAT ENGINE GASKET
2 4800147 PIPE
3 17094911 WASHER Ø8X16X1,6 MM
4 98401723 HEXAGON BOLT M8X1,25X12 MM
5 99470277 WATER PIPE
6 4864080 SCREW CONNECTOR M10X1,25
7 4858606 GASKET Ø10X14X1 MM
8 17089974 SPRING WASHER Ø8X22X2,4MM
9 16605524 HEXAGON BOLT M8X20 MM
10 98434881 WATER HOSE
11 8021305 GASKET
12 500336451 WATER PIPE
13 17764892 PIPE CLIP Ø40-60 MM
14 16043521 SCREW M8X22
16 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
17 11234724 HEXAGON BOLT M10X1,25X45 MM
18 15004021 HEXAGON BOLT M10X1,25X25 MM
19 8025517 WATER PIPE
21 17090174 SPRING WASHER Ø10X20 MM
22 4823608 THERMOSTAT BODY ASSY [from 555948]
23 16997611 THREADED PLUG M20X1,5
24 4851926 FLAT ENGINE GASKET
25 17288681 O-RING Ø24,9 MM SP=3,5 MM
26 98415712 PIPE SOCKET [from 657424]
27 17282281 O-RING 2,62x23,47
28 8103077 CLIP
29 8005101 RETAINER
32 16992111 THREADED PLUG M10X1
