8045SU00.50A001

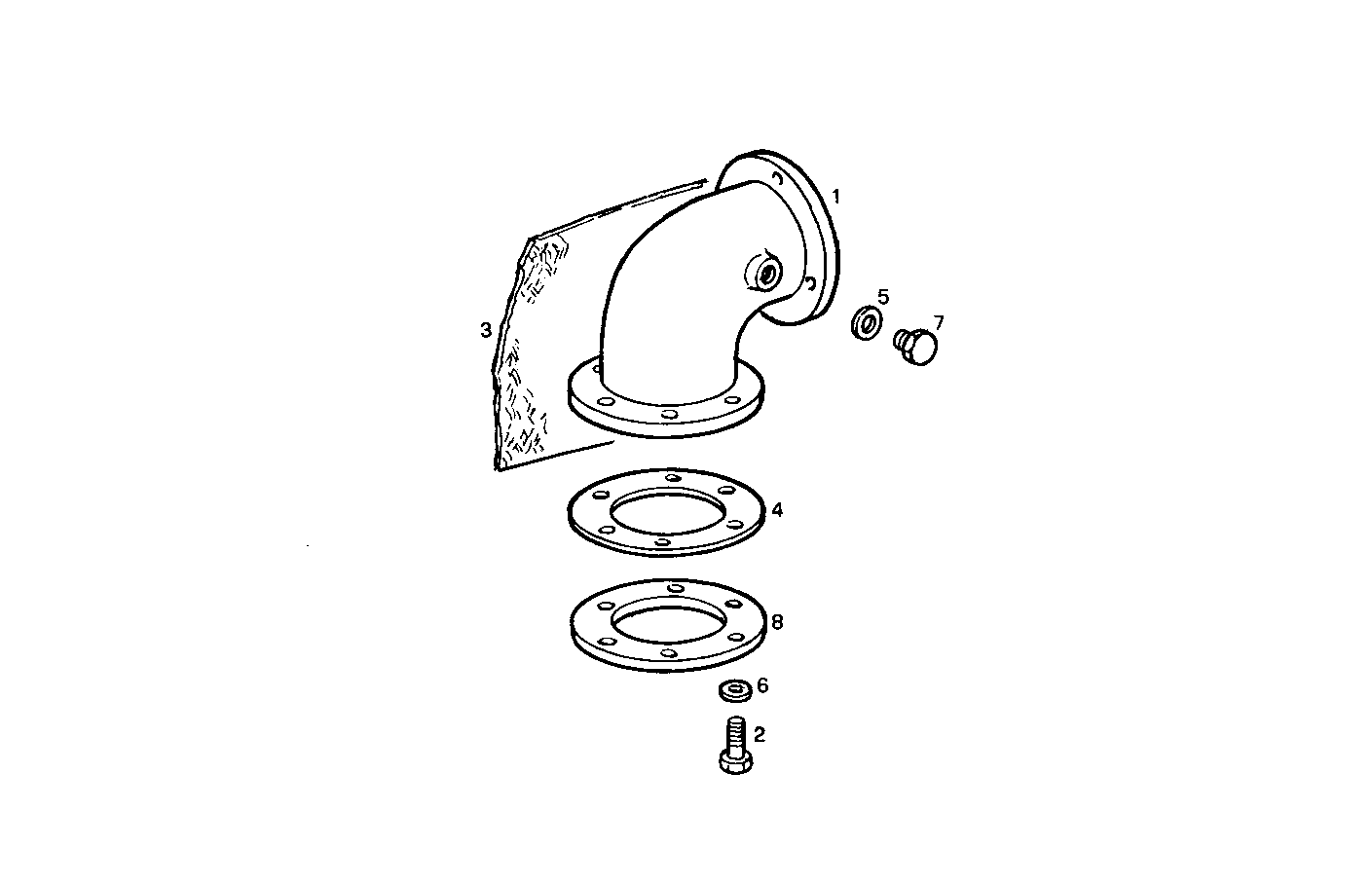

A40010900 TURNING EXHAUST ELBOW
| Item | Part number | Description |
|---|---|---|
| 1 | 4935794 | EXHAUST ELBOW |
| 2 | 16605824 | HEXAGON BOLT M8X35 MM |
| 3 | 17037931 | HEXAGON NUT M8X1,25 |
| 3 | 8101603 | PROTECTION |
| 4 | 8009606 | GASKET |
| 5 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 7 | 16992211 | THREADED PLUG M12X1,5 |
| 8 | 8101993 | FLANGE |
