8045U06.55A580

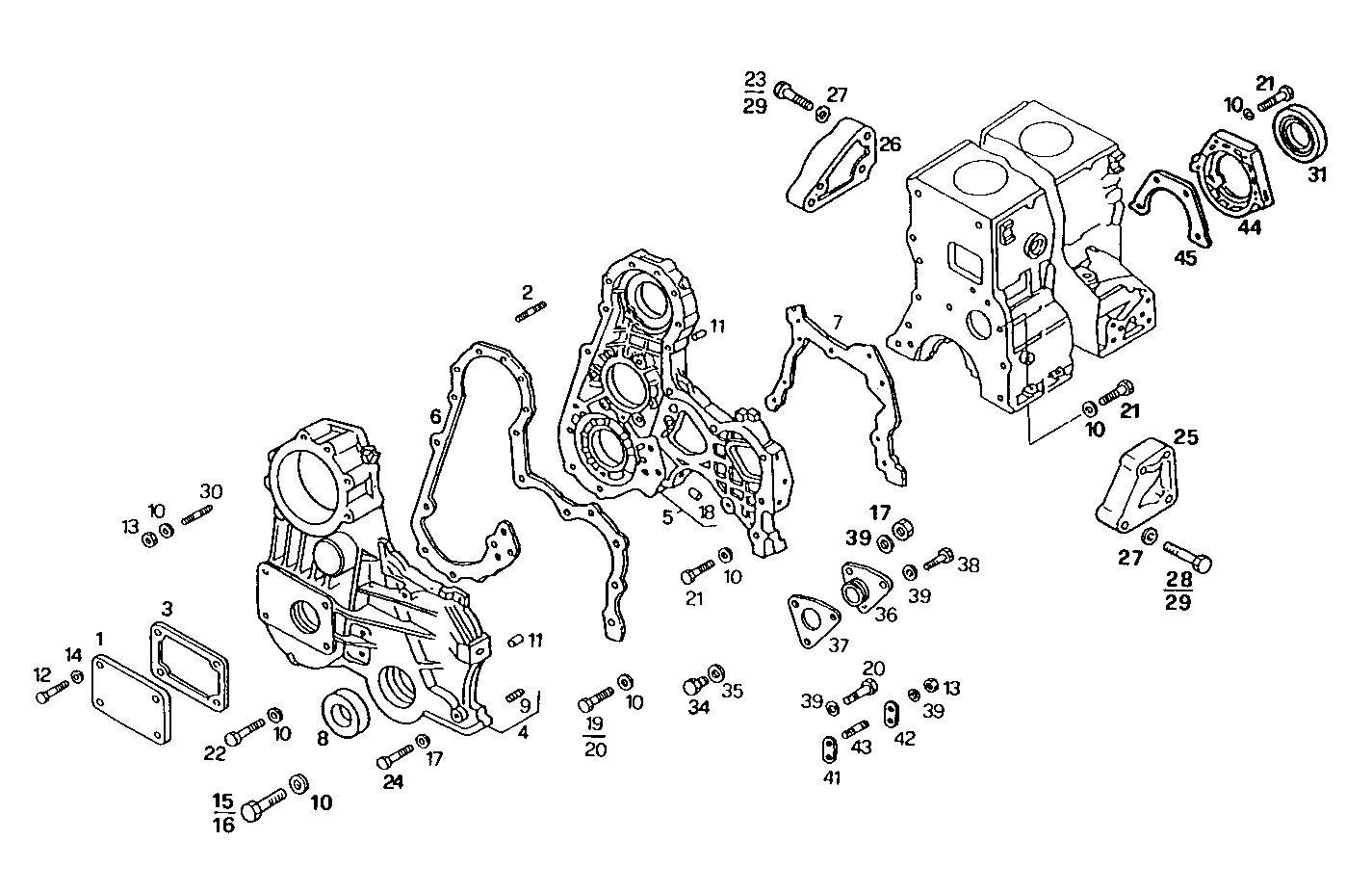

0430.200 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
1 564530 COVER
2 13546921 STUD M8X12X22 MM
3 4850986 FLAT ENGINE GASKET
4 4769749 FRONT C.CASE COVER ASSY
5 4786512 TIMINGGEAR HOUSIN ASSY
6 98418138 FLAT ENGINE GASKET
7 98424046 FLAT ENGINE GASKET
8 99469265 SHAFT SEAL CORCOS
9 13526170 THREADED INSERT M10X1,25X20 MM
10 17094914 WASHER 8x16
11 10839610 DOWEL PIN Ø8 MM
12 16603724 HEXAGON BOLT M6X20 MM (8.8)
13 17037931 HEXAGON NUT M8X1,25
14 17088474 WASHER Ø6X12 MM
15 16044921 HEXAGON BOLT M8X1,25X85 MM
16 16606524 HEXAGON BOLT M8X70 MM
17 17095014 WASHER Ø10X18 MM
18 4605220 OIL NOZZLE
19 16043521 SCREW M8X22
20 16605734 HEXAGON BOLT M8X30 MM
21 16605824 HEXAGON BOLT M8X35 MM
22 16606124 HEXAGON BOLT M8X50 MM
23 16611224 HEXAGON BOLT M12X120 MM
24 15888824 HEXAGON BOLT M10X1,25X70 MM
25 4853972 BRACKET LEFT
26 4853971 BRACKET RIGHT
27 17095304 WASHER Ø12X24 MM
28 16610924 HEXAGON BOLT M12X90 MM
29 16610724 SCREW M12X1,75X70 MM
30 13543621 STUD M8X16X30 MM
31 99457401 SHAFT SEAL CORCOS
34 4602520 PLUG
35 10297760 SEAL GASKET Ø6,2 MM
36 4619671 SUPPORT
37 4851004 FLAT ENGINE GASKET
38 15213824 HEXAGON BOLT M8X65 MM
39 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
41 98424383 GASKET
42 98424384 PLATE
43 16747424 STUD M8X16X60
44 98489586 REAR C.CASE COVER
45 4849994 FLAT ENGINE GASKET
