8045U06.55A580

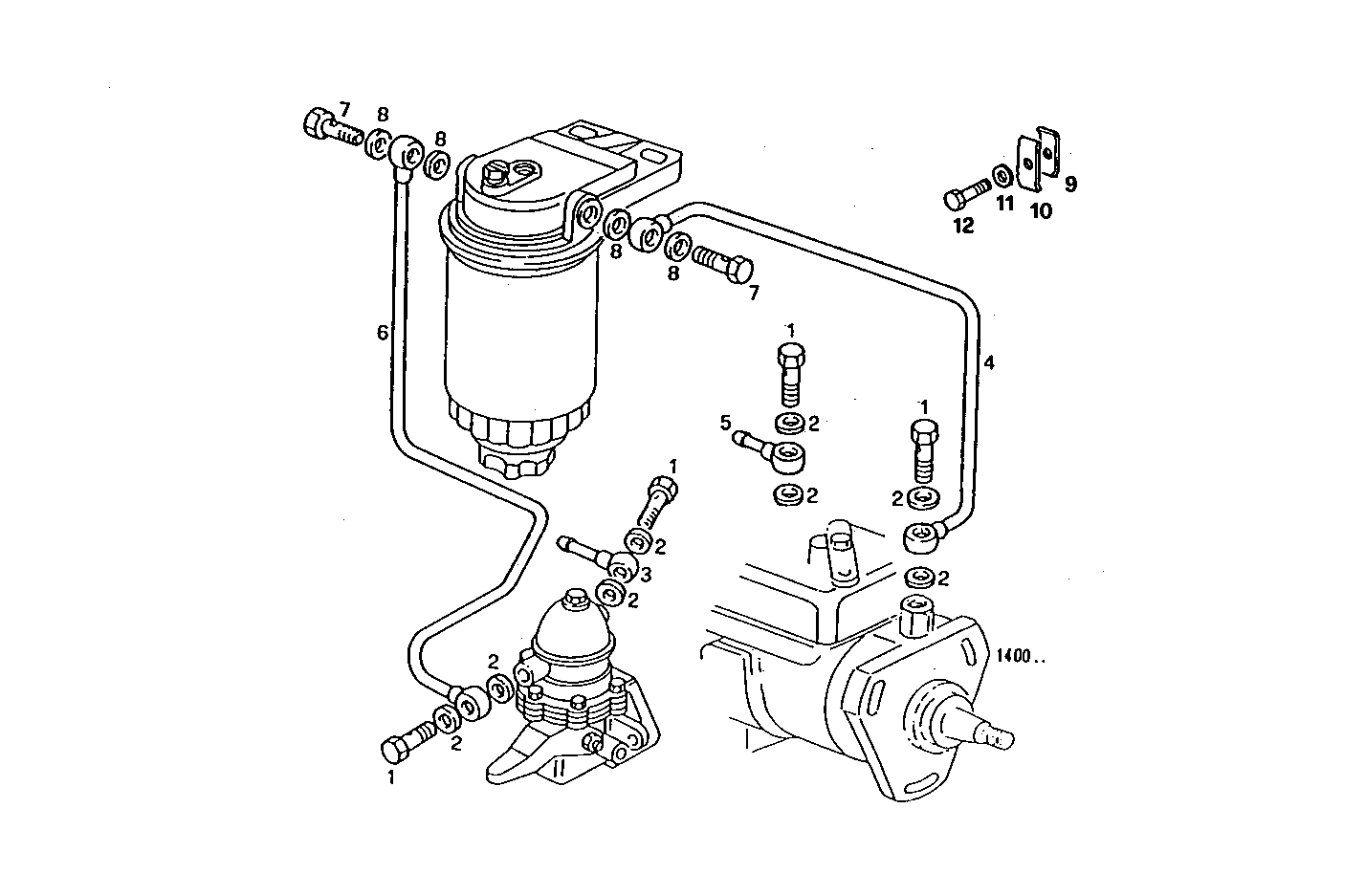

2030.173 FUEL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 4864082 | BANJO BOLT M12X1,5X25 MM |
| 2 | 98474306 | WASHER Ø12X20 MM SP=1,9 MM |
| 3 | 98417520 | PIPE SOCKET |
| 4 | 8026604 | FUEL LINE |
| 5 | 98416591 | SWIVEL COUPLING |
| 6 | 8026603 | FUEL LINE |
| 7 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
| 8 | 98474308 | SEAL GASKET Ø14X22 MM |
| 9 | 4002890 | CLIP |
| 10 | 607942 | CLIP |
| 11 | 17798174 | SPRING WASHER Ø6,1X11,8 MM |
| 12 | 16603624 | HEXAGON BOLT M6X16 MM (8.8) |
