8045U06.55A580

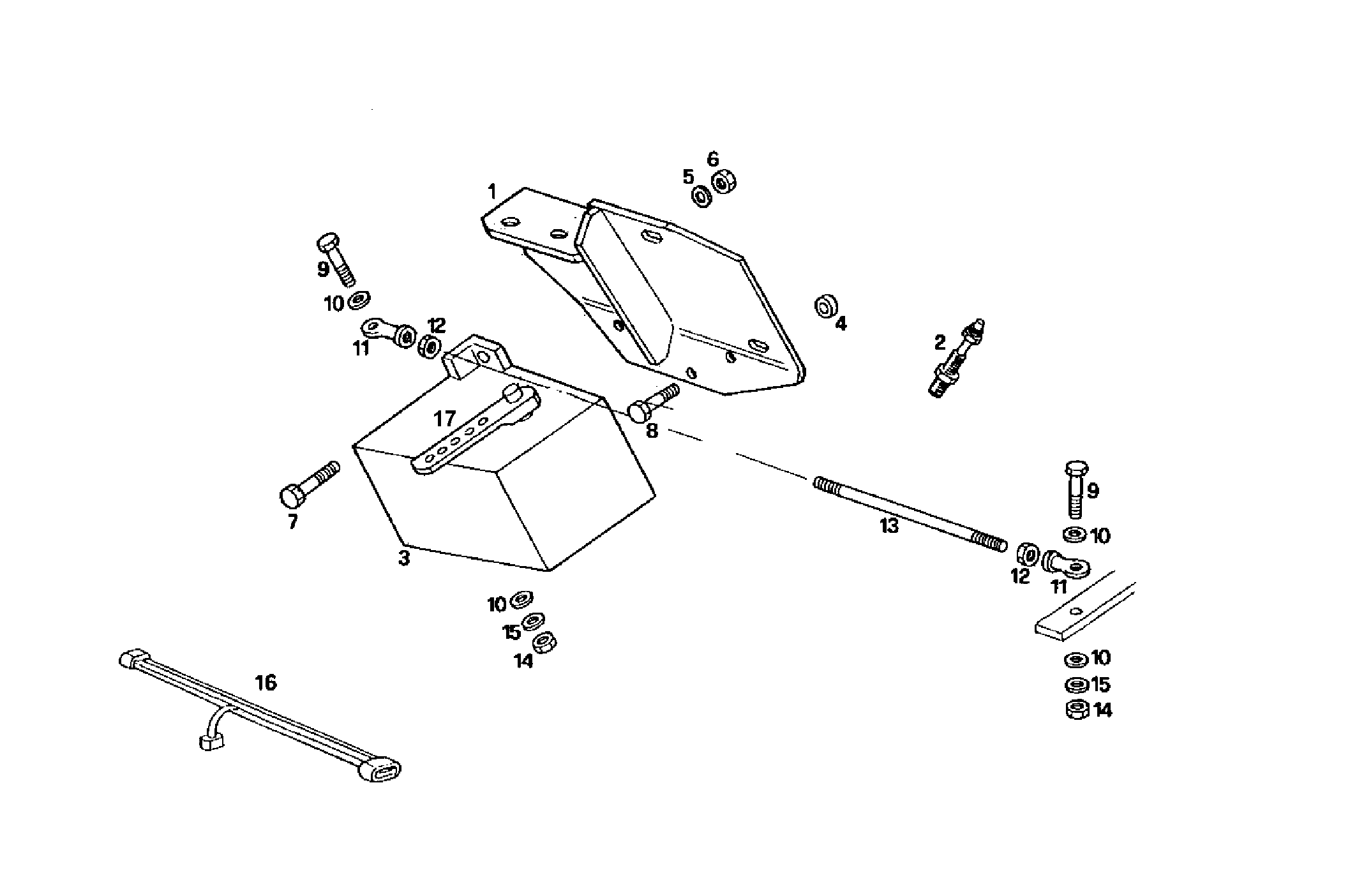

2600.012 ELECTRONIC SPEED GOVERNOR
| Item | Part number | Description |
|---|---|---|
| 1 | 8028742 | RETAINER |
| 2 | 8018673 | PICK-UP |
| 3 | 8018971 | ENGINE ACTUATOR ASSY |
| 4 | 4930712 | SPACING BAR |
| 5 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 6 | 17037931 | HEXAGON NUT M8X1,25 |
| 7 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 8 | 15888721 | HEXAGON BOLT M10X1,25X55 MM |
| 9 | 16603824 | SCREW M6X25 |
| 10 | 17094714 | WASHER Ø6,4X12 MM |
| 11 | 4934541 | BRACE/STRUT |
| 12 | 17037821 | HEXAGON NUT M6X1 |
| 13 | 8823237 | TIE ROD |
| 14 | 17152721 | NUT M6 |
| 15 | 17088474 | WASHER Ø6X12 MM |
| 16 | 8018968 | ENGINE HARNESS |
| 17 | 8031536 | LEVER |
