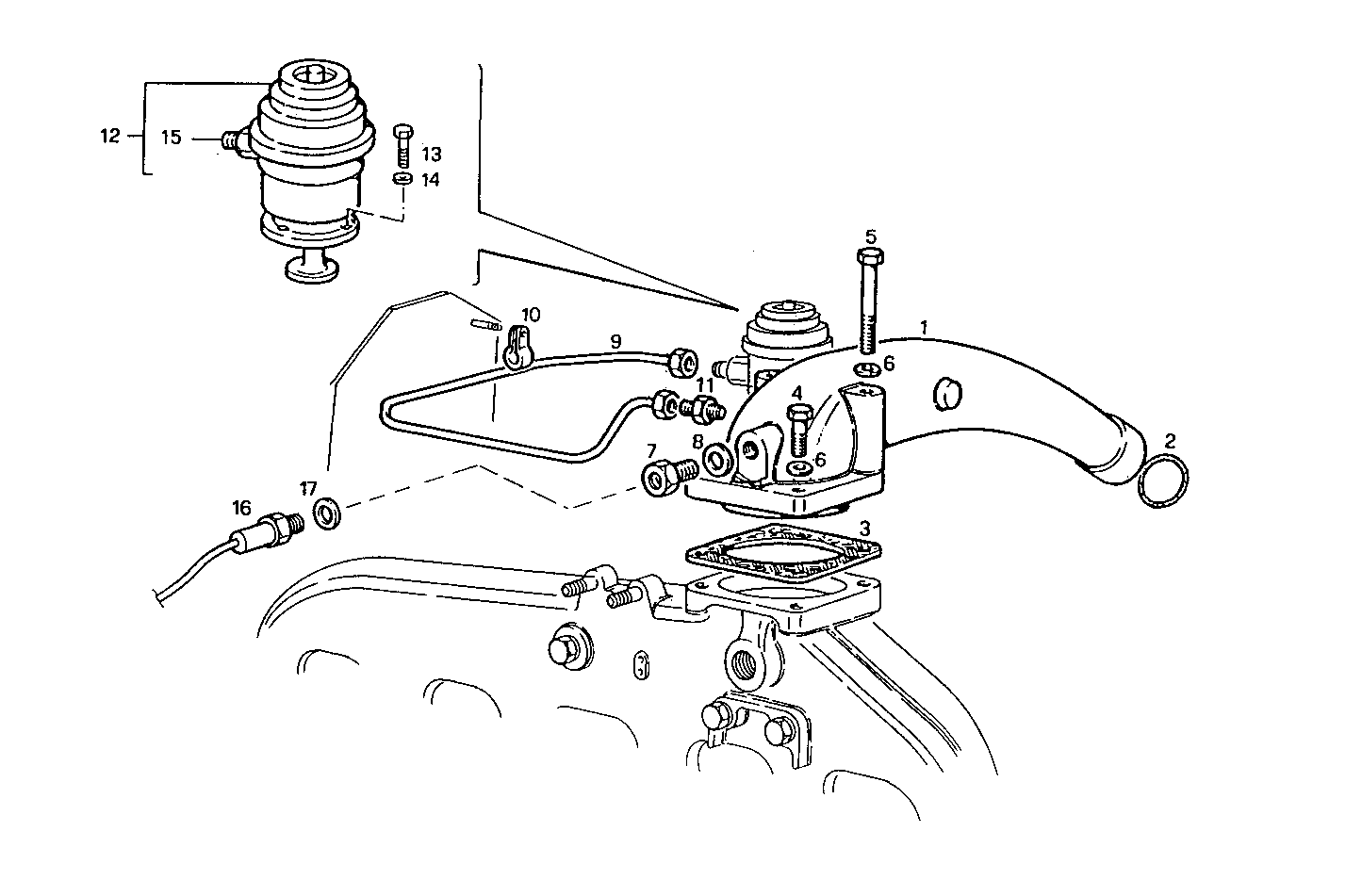

2420.169/02 SUPERCHARGING LINES

Iveco/FPT SUPERCHARGING LINES

Item Part number Description
1 8018898 INTAKE ELBOW
2 17289881 O-RING Ø50,3 MM SP=3,5 MM
3 4848525 FLAT ENGINE GASKET
4 16605924 SCREW M8X40 MM
5 16606724 HEXAGON BOLT M8X90 MM
6 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
7 4935314 PIPE SOCKET
8 98474311 SEAL GASKET Ø18X26 MM
9 8018900 AIR PIPE/DUCT
10 8006650 CLIP
11 11211311 PIPE SOCKET M10X1
12 8007504 VALVE WASTE-GATE - ASSY
13 16689134 SOCKET-HEAD SCREW M6X16 MM
14 17088474 WASHER Ø6X12 MM
15 8012465 PIPE SOCKET
16 8006683 SWITCH
17 4858607 WASHER Ø12X17 MM SP=1,5 MM
