8060SRC20.01

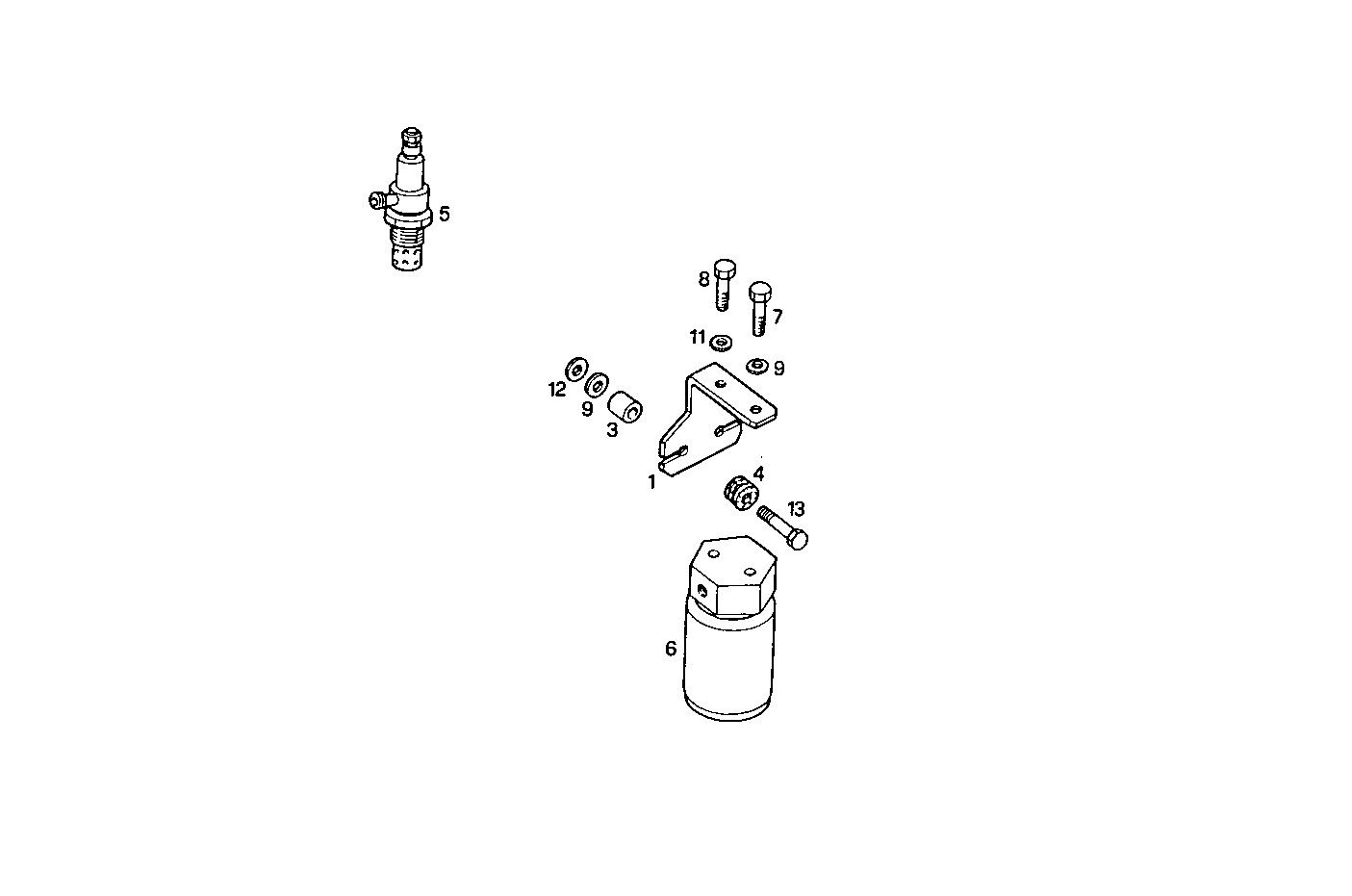

3650.018 THERMO-STARTER

Iveco/FPT THERMO-STARTER

Item Part number Description
1 99454282 RETAINER
3 4833815 SPACING BAR
4 4833816 INSULATING RING
5 99450393 THERMO-STARTER
6 98494898 ELECT.V.VE.PREHEAT
7 16603521 SCREW M6X12
8 16602021 SCREW M5X12
9 17088471 SPRING WASHER Ø6X12 MM SP=1,2 MM
11 11199279 SPRING WASHER Ø5X10X0,5 MM
12 12643701 WASHER Ø6X18 MM
13 16603724 HEXAGON BOLT M6X20 MM (8.8)
