8060SRC20.01

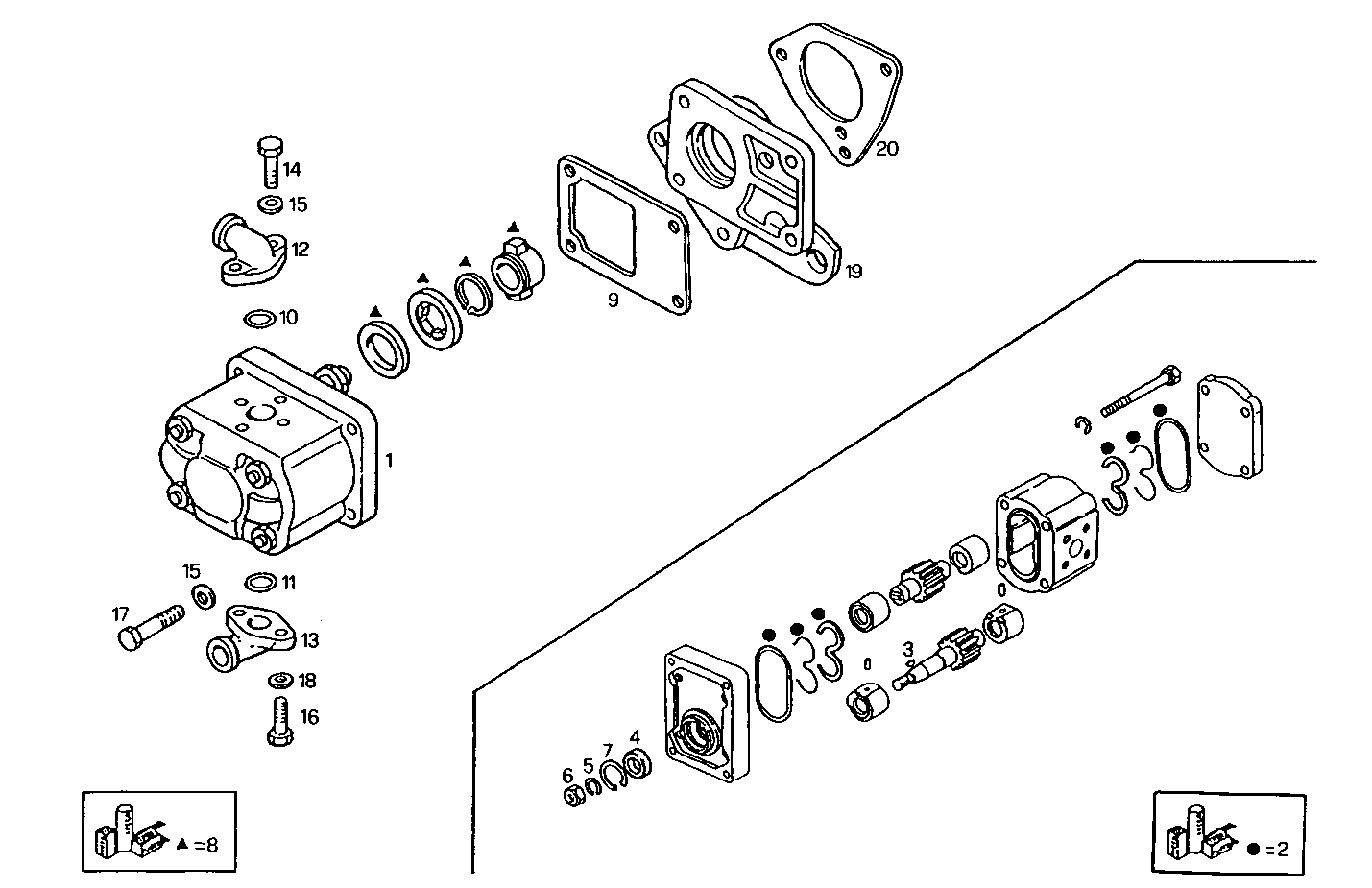

A09030012 REAR HYDRAULIC PUMP

Iveco/FPT REAR HYDRAULIC PUMP

Item Part number Description
1 98418703 OIL PUMP-STEERING ASSY BOSCH
2 42481597 KIT-HYDROST.PUMP
3 10205720 KEY 3X5 MM
4 93160143 RADIAL SEAL Ø17X30 MM
5 79058503 WASHER
6 7984181 NUT M12X1,5
7 7984179 CIRCLIP
8 8090343 KIT-HYDRAULIC PUMP
9 98486662 FLAT ENGINE GASKET
10 17281781 O-RING Ø15,5 MM SP=2,6 MM
11 17282181 O-RING Ø21,8 MM SP=2,6 MM
12 4821136 ELBOW COUPLING
13 4820755 ELBOW COUPLING
14 16604024 HEXAGON BOLT M6X35 MM
15 17088474 WASHER Ø6X12 MM
16 16605824 HEXAGON BOLT M8X35 MM
17 16603824 SCREW M6X25
18 17089574 WASHER Ø8X16 MM
19 4847515 SUPPORT ASSY
20 48510004 GASKET
